Peerless-AV PRS-UNV-S - Installation - Manual (Page 6)

ISSUED: 09-19-05 SHEET #: 055-9441-9 08-23-10
Visit the Peerless Web Site at www.peerlessmounts.com
6 of 12
For customer care call 1-800-729-0307 or 708-865-8870.

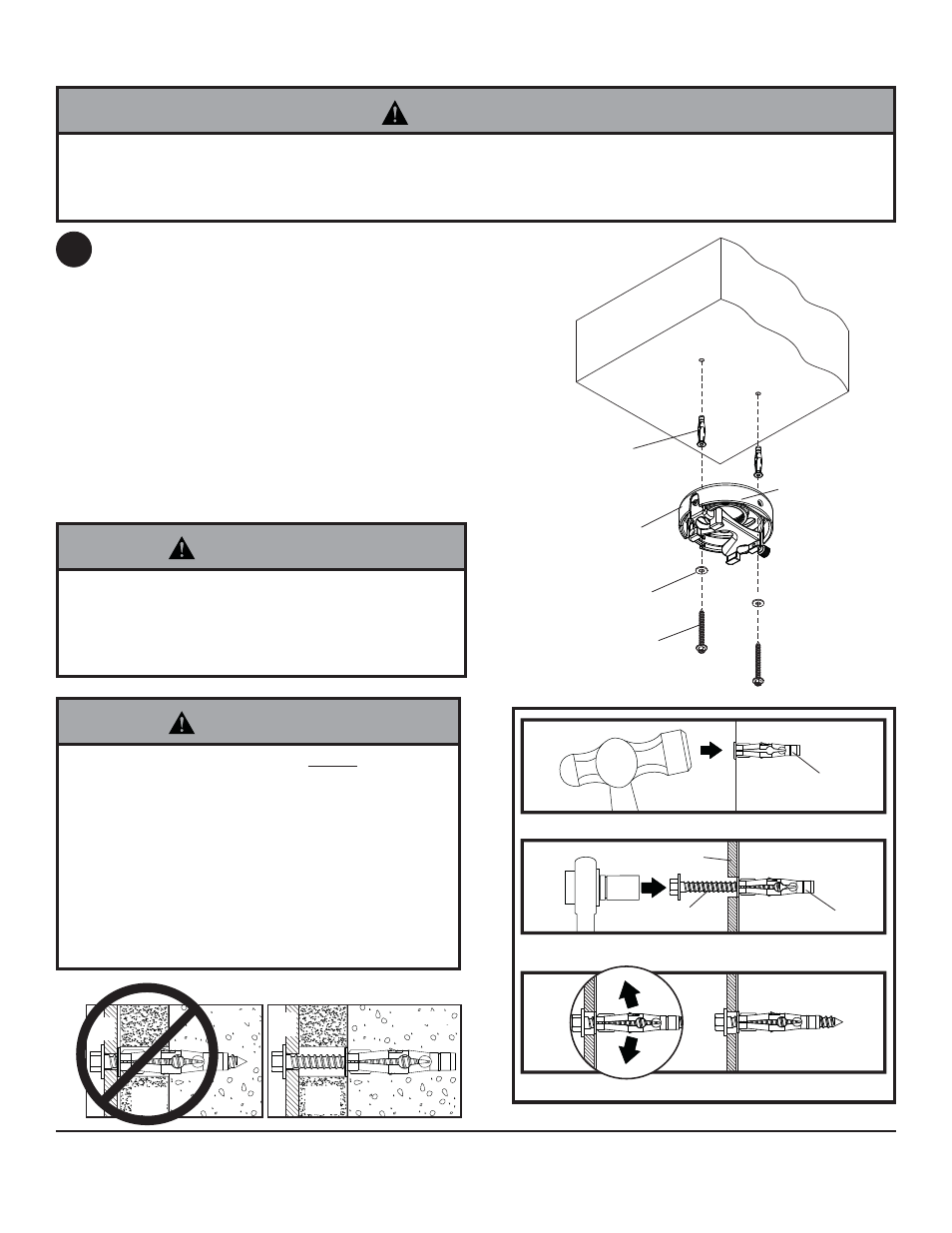

Place projector mount assembly (A) on ceiling
as a template and mark the center of the two
mounting holes. Drill two 5/16" (8 mm) dia. holes to
a minimum depth of 2.5" (64 mm). Attach projector
mount assembly (A) using two concrete anchors
(D), two fl at washers (F), and two #14 x 2.5" wood
screws (C) as shown.
Note: Mounting slots on projector mount assembly
allow for 30° (±15°) of rotation before fully securing
wood screw.
Tighten wood screws (C) using 3/8" (10 mm) socket
wrench or phillips screwdriver until projector mount
assembly (A) is fi rmly attached.
Skip to step 5.
Installation to Concrete Ceilings
FRONT OF
MOUNT
• Tighten wood screws fi rmly, but do not overtighten.
Overtightening can damage the screws, greatly re-
ducing their holding power.
• Never tighten in excess of 80 in • lb (9 N.M.).
WARNING
3
• Always attach concrete anchors directly to load-
bearing concrete.
• Never attach concrete anchors to concrete covered
with plaster, drywall, or other fi nishing material. If
mounting to concrete surfaces covered with a fi nish-
ing surface is unavoidable (not evaluated by UL), the
fi nishing surface must be counterbored as shown be-
low. Be sure concrete anchors do not pull away from
concrete when tightening screws. If plaster/drywall is
thicker than 5/8", custom fasteners must be supplied
by installer (not evaluated by UL).
WARNING
• Concrete must be 2000 psi density minimum. Lighter density concrete may not hold concrete anchor.
• Make sure that the supporting surface will safely support the combined load of the equipment and all attached hard-
ware and components.
WARNING
D
C
F
A
CUT
A
W
A
Y
VIEW
INCORRECT CORRECT
wall
plate
wall
plate
plaster/
dry wall plaster/
dry wall
concrete concrete
1
3
2
D
Drill holes and insert anchors (D).
Place plate (A) over anchors (D) and secure with screws (C).
Tighten all fasteners.
A
D C
concrete
surface
