PACKAGE SIZE (W x H x D) PACKAGE SHIP WEIGHT PACKAGE UPC CODE PACKAGE CONTENTS UNITS IN PACKAGE
sUt660P
37.75” x 2.5” x 8.38”
(959 x 64 x 213 mm)
12.5 lb (5.7 Kg) 735029264989
Mount and attachment
hardware for screen
and wall
1
Package Specifications
Accessories
DImENSIONS (W x H x D) PRODUCT WEIGHT LOAD CAPACITy FINISH AVAILABLE COLORS
sUt660P
36.77“ x 17.25“ x 0.68“
(933 x 438 x 17 mm)
11.5 lb (5.2 Kg) 100 lb (45 Kg)
Scratch
resistant
fused
epoxy
Gloss black
Product Specifications
Model Numbers
warrantY: limited 5-year
A R C H I T E C T S S P E C I F I C A T I O N S
The Ultra-Thin Universal Tilt Wall Mount shall be a Peerless model sUt660P and shall be located where indicated on the plans.
It shall be constructed of cold rolled steel and feature scratch resistant gloss black fused epoxy finish.
Assembly and installation shall be done according to instructions provided by the manufacturer.
iBa1: In-wall accessory box
Visit peerlessmounts.com to see the full line of Peerless LCD/plasma, projector and TV/monitor mounts. © 2009 Peerless Industries, Inc. All rights reserved.
Peerless industries, inc.  3215 w. north avenue  melrose Park, il 60160  (800) 865-2112  (708) 865-8870  Fax: (708) 865-2941  www.peerlessmounts.com
All dimensions = inch (mm)
sUt660P: Ultra Slim Wall Mount for 37" to 60" Ultra-thin Flat Panel Screens
LIT-0441 rev.1

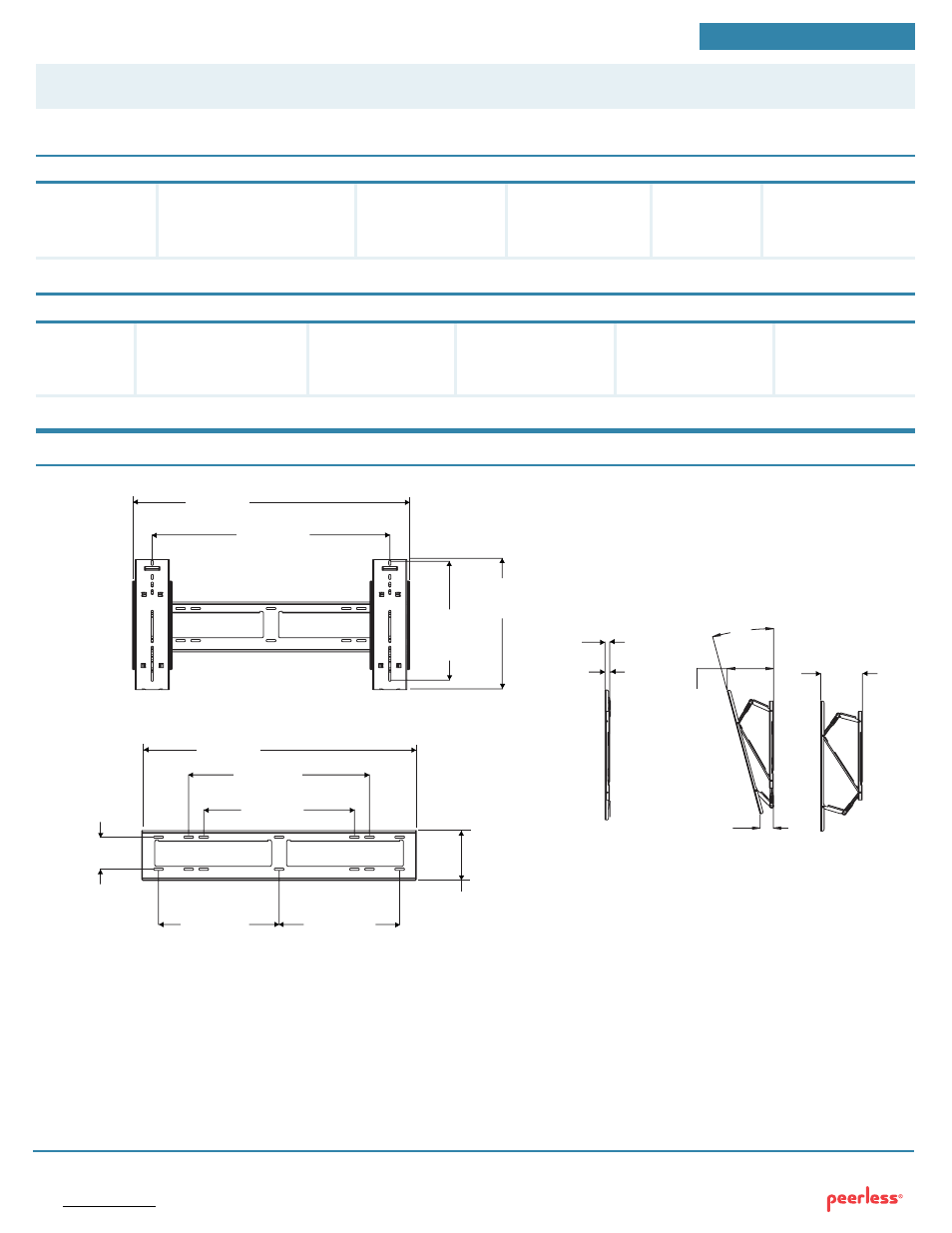

Front View
wall Plate detail
31.53"
(801 mm)
MAX
24"
(610 mm)
20"
(508 mm)
16"
(406 mm)
16"
(406 mm)
4.25"
(108 mm)
15.75"
(400 mm)
MAX
17.25"
(438 mm)
.68"
(17 mm)
0°
6.62"
(168 mm)
17.5°
36.43"
(925 mm)
36.77"
(933 mm)
5.88"
(149 mm)
2"
(51 mm)
7.12"
(180 mm)
side View tilted View
NOTE: Screen Compatibility Requirements
Designed exclusively for use with ultra-thin screens 2” (51 mm) deep or less
 The screen does not require any additional heat ventilation
room than 0.68” (17 mm). Please refer to the manufacturer’s
requirements for mounting your screen on the wall.
 The screen must have a flat mounting surface, or the
mounting holes need to be on the furthest back surface of
the screen.
 Input/Output connection must be properly orientated to
accommodate mounting 0.68” (17 mm) from the wall.
