Peerless-AV PT650 - Sell Sheet - Manual (Page 2)

A R C H I T E C T S S P E C I F I C A T I O N S
LIT-0571 Rev.2
PACKAGE SIZE (W x H x D) PACKAGE SHIP WEIGHT PACKAGE UPC CODE PACKAGE CONTENTS UNITS IN PACKAGE
pt650
31.8" x 8.63" x 3.88"
(808 x 219 x 99mm)
10.5lb (5kg) 735029254881
Wall plate, universal
adaptors, mounting
and display attachment
hardware
1
Package Specifications
Accessories
DImENSIONS (W x H x D) PRODUCT WEIGHT LOAD CAPACITy FINISH AVAILABLE COLORS
pt650
33.16" x 18.50" x 2.56"-5.64"
(842 x 470 x 65-143mm)
8lb (4kg) 175lb (79kg) Matte Black
Product Specifications
Model Numbers
Warranty: Limited 5-year
aCC925: Security Fasteners
aCC415: 4-pack Metal Stud Fastener Kit
All dimensions = inch (mm)

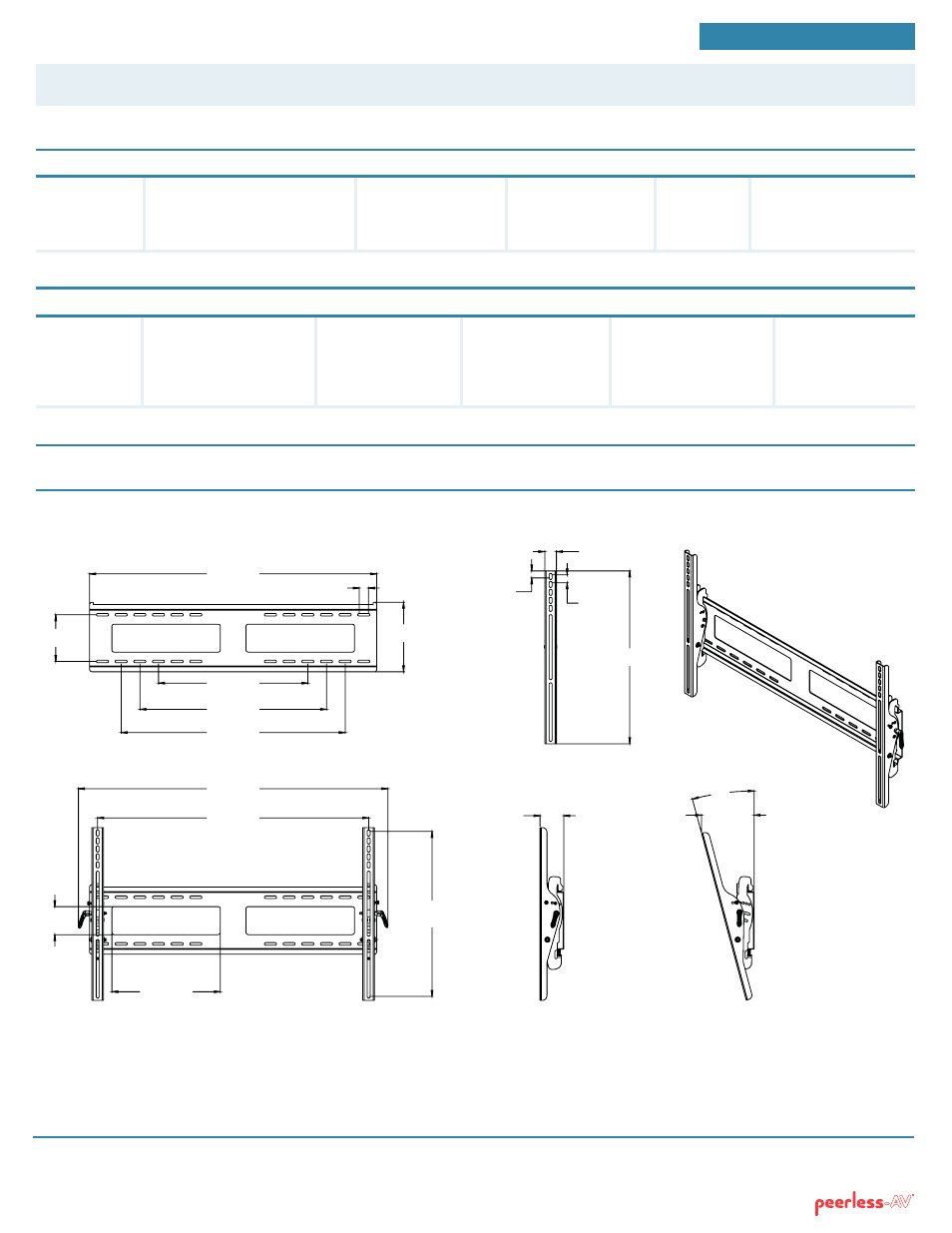

pt650 Universal Tilt Wall Mount for 32" to 56" Displays
29.04"
MAX.
(738mm)
17.67"
MAX.
(449mm)
33.16"
(842mm)
11.63"
(295mm)
3.00"
(76mm)
Front VieW
2.56"
(65mm)
5.64"
(143mm)
15°
Side VieW
15° tiLt
30.75"
(781mm) 1.00"
(25mm)
7.45"
(189mm)
5.00"
(127mm)
16.00"
(406mm)
20.00"
(508mm)
24.00"
(610mm)
18.50"
(470mm)
0.85"
(22mm)
0.75"
(19mm)
1.25"
(32mm)
WaLL pLate VertiCaL adapter
Side VieW
iSoMetriC VieW
The Universal Tilt Wall Mount shall be a Peerless-AV model PT650 and shall be located where indicated on the plans.
Assembly and installation shall be done according to instructions provided by the manufacturer.
