A R C H I T E C T S S P E C I F I C A T I O N S
The Pull-out Pivot Wall Mount shall be a Peerless-AV model SP850(P)(-S), SP850-UNL(-S), SP850-UNLP(-S)(-GB)(-GS)
and shall be located where indicated on the plans. It shall be constructed of heavy gauge steel.
It shall feature up to 45° of pivot left and right depending on display size. It shall feature 5° or 10° of forward tilt.
It shall feature +/- 1° of roll. The finish shall be scratch resistant black fused epoxy.
Assembly and installation shall be done according to instructions provided by the manufacturer.
LIT-0722 rev.3
PACKAGE SIZE
(W x H x D)
PACKAGE
SHIP WEIGHT
PACKAGE
UPC CODE
PACKAGE
CONTENTS
UNITS IN
PACKAGE
SP850(P)(-S)
SP850-uNL(P)(-S)(-GB)(-GS)
12" x 2.75" x 33"
(304.8x69.85x838.2mm)
12" x 4.69" x 32"
(304.8 x 119.13 x 838.2mm)
22.7lb (10.24kg)
39lb (17.6kg)
SP850:
SP850P:
SP850-S:
SP850P-S:
SP850-UNL:
SP850-UNLP:
SP850-UNL-S:
SP850-UNLP-S:
SP850-UNLP-GB:
SP850-UNLP-GS:
735029240297
735029240372
735029240709
735029240716
735029246398
735029247319
735029247302
735029247326
735029247180
735029247197
Wall Mount assembly,
LockKey™ installation
tool, locking tab,
cable management
sleeve, fastener pack
including VESA ®
100 x 100, 200 x 100mm
display attachment,
universal adaptor plate
(select models)
1
Package Specifications
DImENSIONS (W x H x D) PRODUCT WEIGHT LOAD CAPACITy FINISH AVAILABLE COLORS
SP850(P)(-S)
SP850-uNL(P)(-S)(-GB)(-GS)
21.00" x 9.76" x 2.31"-10.68"
(533 x 248 x 59-271mm)
30.75" x 18.00" x 3.52"-11.86"
(781 x 457 x 89-301mm)
17.6lb (7.98kg)
34lb (863.6kg)
150lb (68kg)
TGIC
Powder
Coat or
Gloss
SP850(P):
SP850(P)-S:
SP850-UNL(P):
SP850-UNL(P)-S:
SP850-UNLP-GB:
SP850-UNLP-GS:
Black
Silver
Black
Silver
Gloss Black
Gloss Silver
Product Specifications
Model Numbers
WarraNtY: Limited 5-year
All dimensions = inch (mm)
SP850(-S) Pull-out Pivot Wall Mount for 26"-58" Displays (VESA ® 100 and 200x100mm security models)
SP850P(-S) Pull-out Pivot Wall Mount for 26"-58" Displays (VESA ® 100 and 200x100mm standard models)
SP850-uNL(-S) Pull-out Pivot Wall Mount for 32"-65" Displays (Universal security models)
SP850-uNLP(-S)(-GB)(-GS) Pull-out Pivot Wall Mount for 32"-65" Displays (Universal standard models)
Peerless Industries, Inc.  2300 White Oak Circle  aurora, IL 60502  (800) 865-2112  (630) 375-5100  Fax: (800) 359-6500  peerless-av.com
Visit peerless-av.com to see the complete line of AV solutions from Peerless-AV, including flat panel mounts, projector mounts, carts/stands, furniture, cables, display cleaners and a full assortment of accessories.
© 2013 Peerless Industries, Inc. Peerless-AV ® and SmartMount ® are registered trademarks of Peerless Industries, Inc. All rights reserved.

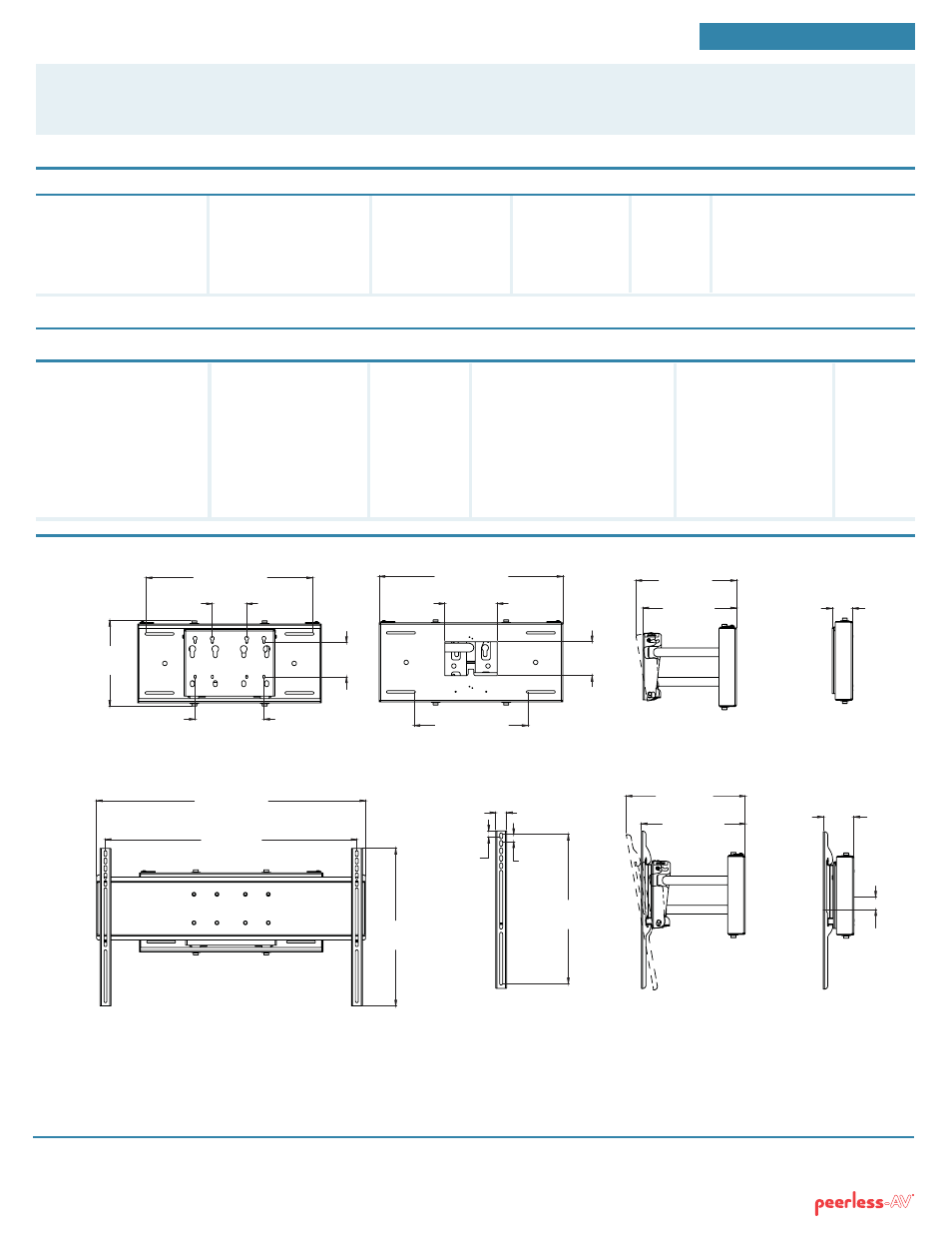

FrONt VIeW
FrONt VIeW WItH
uNIVerSaL aDaPtOr BraCKetS aDaPtOr BraCKet
SIDe VIeW
eXteNDeD
SIDe VIeW
eXteNDeD
SIDe VIeW
SIDe VIeW
BaCK VIeW
30.75"
(781mm)
18.00"
(457mm)
28.75"
(730mm)
MAX.
21.00"
(533mm)
19.00"
(483mm)
9.76"
(248mm)
10.68"
(271mm)
11.85"
(301mm)
2.31"
(59mm)
11.86"
(301mm)
13.63"
(346mm)
3.52"
(89mm)
17.05"
(433mm)
1.25"
(32mm)
0.75"
(19mm)
0.85"
(22mm)
3.89"
(99mm)
6.00"
(152mm)
13.00"
(330mm)
3.93"
(100mm)
3.93"
(100mm)
7.88"
(200mm)
1.69"
(43mm)
