6 2013-08-27 #:125-9465-3 2013-10-11
A
2a
ENG - When installing Peerless wall mounts on a
wood stud wall covered with gypsum board (drywall),
verify that the woods studs are a minimum of 2" x 4"
nominal size. When installing to more than one stud,
ensure the spacing between studs is at least 16"
but does not exceed 24". Do not install over gypsum
board thicker than 5/8".
WARNING
1
A

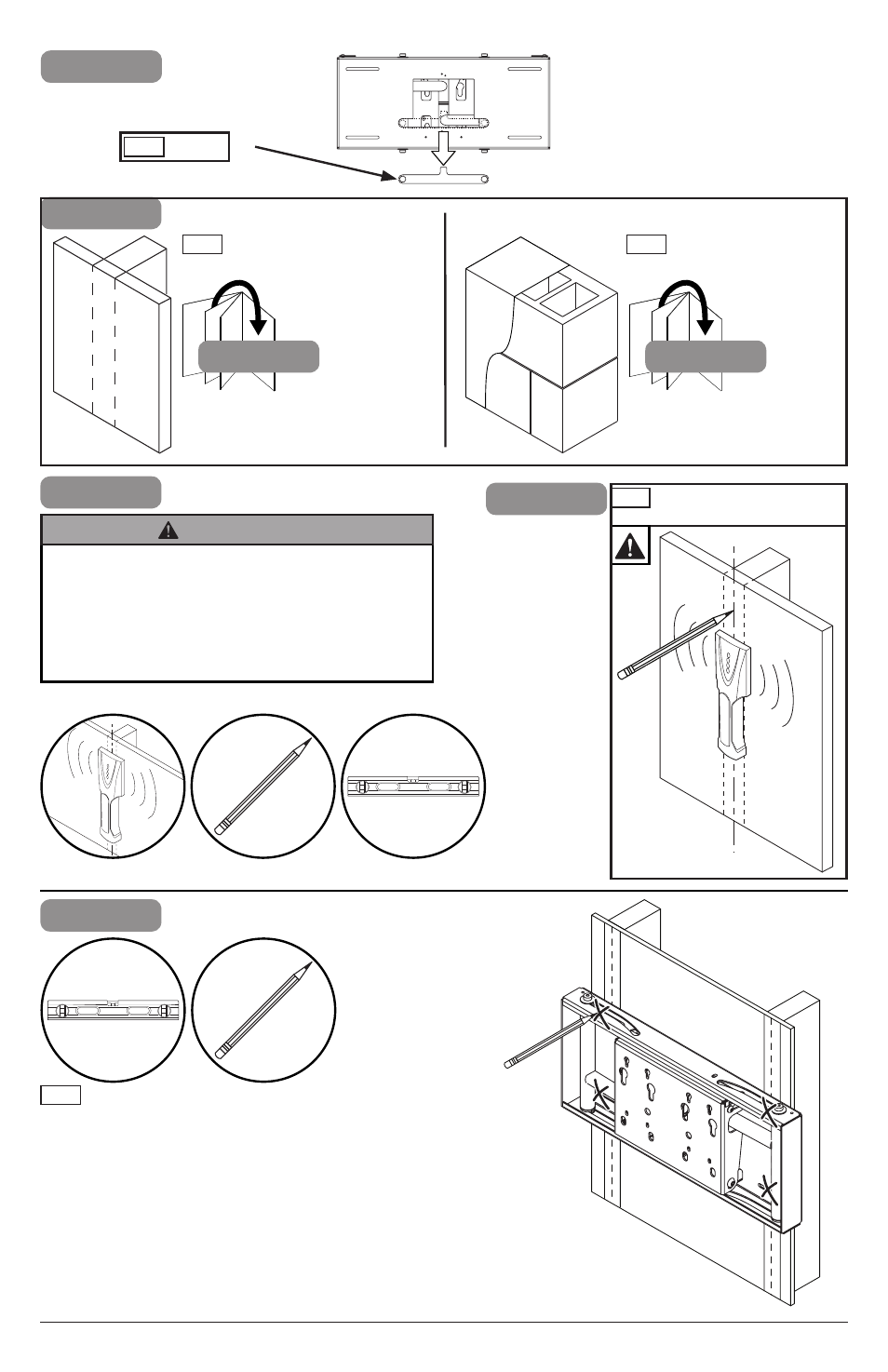

Remove ENG
2
2a
Wood stud wall. ENG
2b
Concrete/Cinder block. ENG
2a-1
Use stud finder to locate
and mark stud center lines.
ENG
ENG
2a-2
Level wallplate.
Mark mounting holes on stud centerlines.
ENG
