Peerless-AV SA746P - Sell Sheet - Manual

Articulating Wall Mount
For 22"-47" Displays
Display size: 22"-47" Max load: 70lb (32kg)
SA746P
FeatureS
CLICK: peerless-av.com CaLL: 800.865.2112 FaX: 800.359.6500
Arm retracts to just 2.61"
(66mm) and extends up to
21.37" (543mm) from the wall
±15° of viewing angle
adjustment
Internal Cable Management
As the signature brand by Peerless-AV ® , the SmartMount ® series wall mounts reflect remarkable
form and function with superior design aesthetics. The articulating wall mounts feature versatile
display positioning and one-person, Hook-and-Hang™ easy installation. The pivoting arm allows you
to extend the display up 21.37" (543mm) from the wall, and can retract to just 2.61" (66mm) from
the wall. The internal cable management provides a clean, professional finish. One-Touch™ tilt of
±15°, ±5° of roll for post-installation leveling, and ±90° of pivot means the display will be perfectly
positioned for the optimum viewing angle.

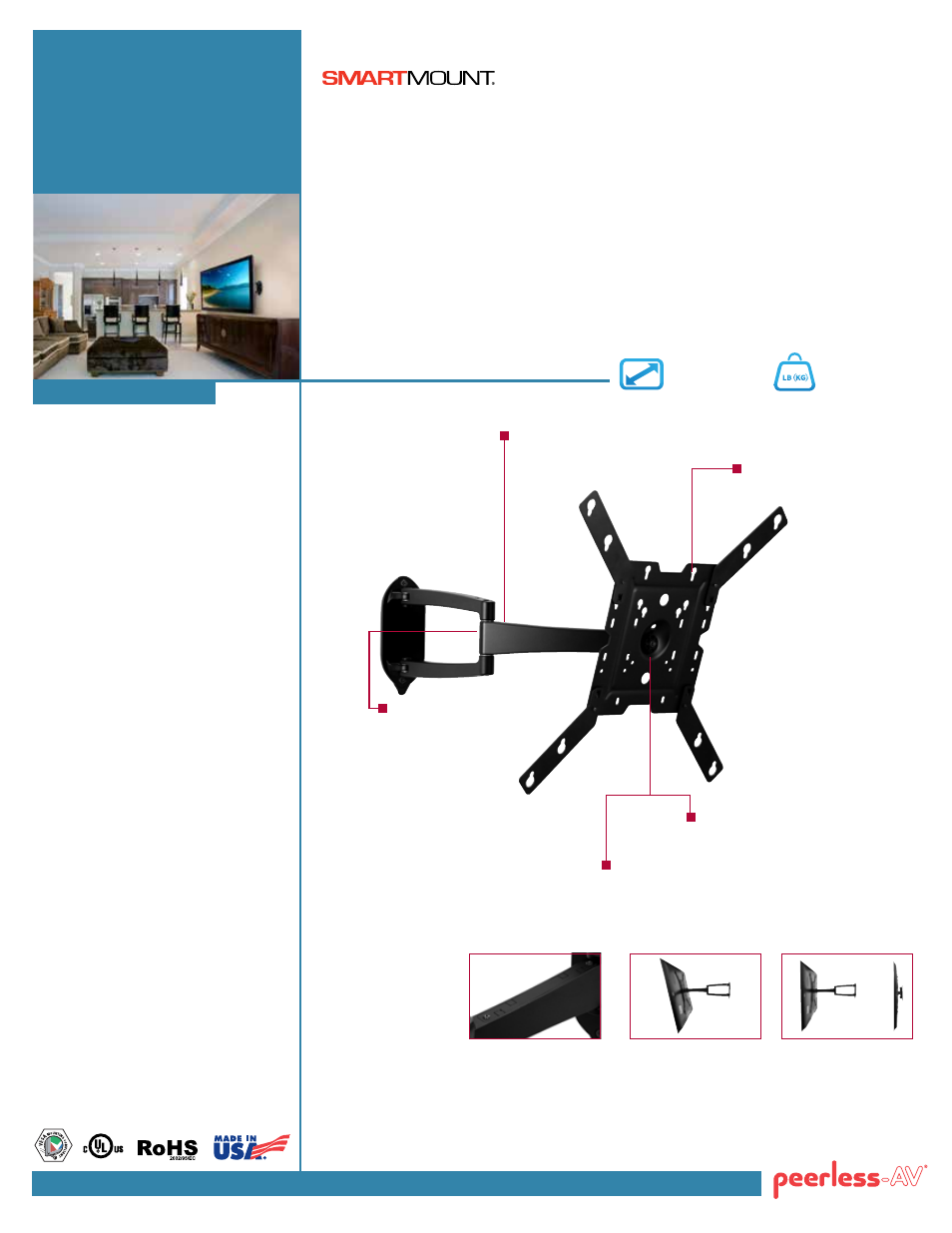

KeyhoLe SLotS
Design features save
installation time
roLL adjuStment
After installation display can
be rotated left and right (±5°)
ensuring it is level with its
surroundings
one-touCh™ tILt
±15° vertical tilt movement for
the ideal viewing angle
InternaL CaBLe manaGement
Showcases a clean, professional
looking installation
waLL eXtenSIon
Up to 21.37" (543mm) of
extension offers enhanced
adjustability to create the
ideal viewing position
 Fits 22"-47" (56-94cm) displays
weighing up to 70lb (32kg)
 Extends display 21.37"
(543mm) from the wall
 Retracts to hold display
2.61" (66mm) from the wall
 ±90° of pivot allows for
perfect display positioning
 Easy leveling ±5° after
display installation
 Internal cable management
provides clean, professional
installation finish
 Landscape or portrait
mounting options increases
display versatility
 Quick and easy, Hook-
and-Hang™ one-person
installation
 ±15° of One-Touch™ tilt
for smooth viewing angle
adjustment
 VESA ® 75, 100, 100 x 200,
200 x 100, 200 x 200, 300 x 200,
300 x 300, 400 x 300 and
400 x 400mm compliant
 Mounts to wood studs,
concrete, cinder or breeze
block
 Installation hardware
included
 UL listed
 Five-year warranty
