A R C H I T E C T S S P E C I F I C A T I O N S
The VESA ® 75 and 100mm Articulating Wall Mount shall be a Peerless-AV model YBA100 and shall be located where indicated on the plans.
Assembly and installation shall be done according to instructions provided by the manufacturer.
PACKAGE SIZE (W x H x D) PACKAGE SHIP WEIGHT PACKAGE UPC CODE PACKAGE CONTENTS UNITS IN PACKAGE
yba100
8.25" x 3.5" x 10"
(210 x 89 x 254mm)
3.82lb (1.73kg) 735029284277
Wall Mount, Attachment
Hardware and Installation
Instructions
1
Package Specifications
DImENSIONS (W x H x D) PRODUCT WEIGHT LOAD CAPACITy FINISH AVAILABLE COLORS
yba100
8.96" x 7.05" x 3.16"-14.88"
(228 x 179 x 80-378mm)
3.04lb (1.38kg) 25lb (11kg)
Powder
Coat
Black
Product Specifications
Model Numbers
warranTy: Limited 5-year
All dimensions = inch (mm)
yba100 VESA ® 75 and 100mm Articulating Wall Mount for 10"-26" Flat Panel Displays
LIT-0868
Visit www.peerless-av.com to see the complete line of AV solutions from Peerless-AV, including flat panel mounts, projector mounts, carts/stands, furniture, cables, screen cleaners and a full assortment of accessories.
© 2012 Peerless Industries, Inc. Peerless-AV™ is a trademark of Peerless Industries, Inc. All rights reserved.
peerless industries, inc.  2300 white Oak Circle  aurora, iL 60502  (800) 865-2112  (630) 375-5100  Fax: (800) 359-6500  www.peerless-av.com
Accessories
ybadp2X1: VESA ® 200 x 100mm Adapter Plates
8.96"
(228mm)
7.05"
(179mm)
2.95"
(75mm)
3.94"
(100mm)
2.80"
(71mm)
2.95"
(75mm)
3.94"
(100mm)
0.32"
(8mm)
3.16"
(80mm)
14.88" - 16.33"
(378 - 415mm)

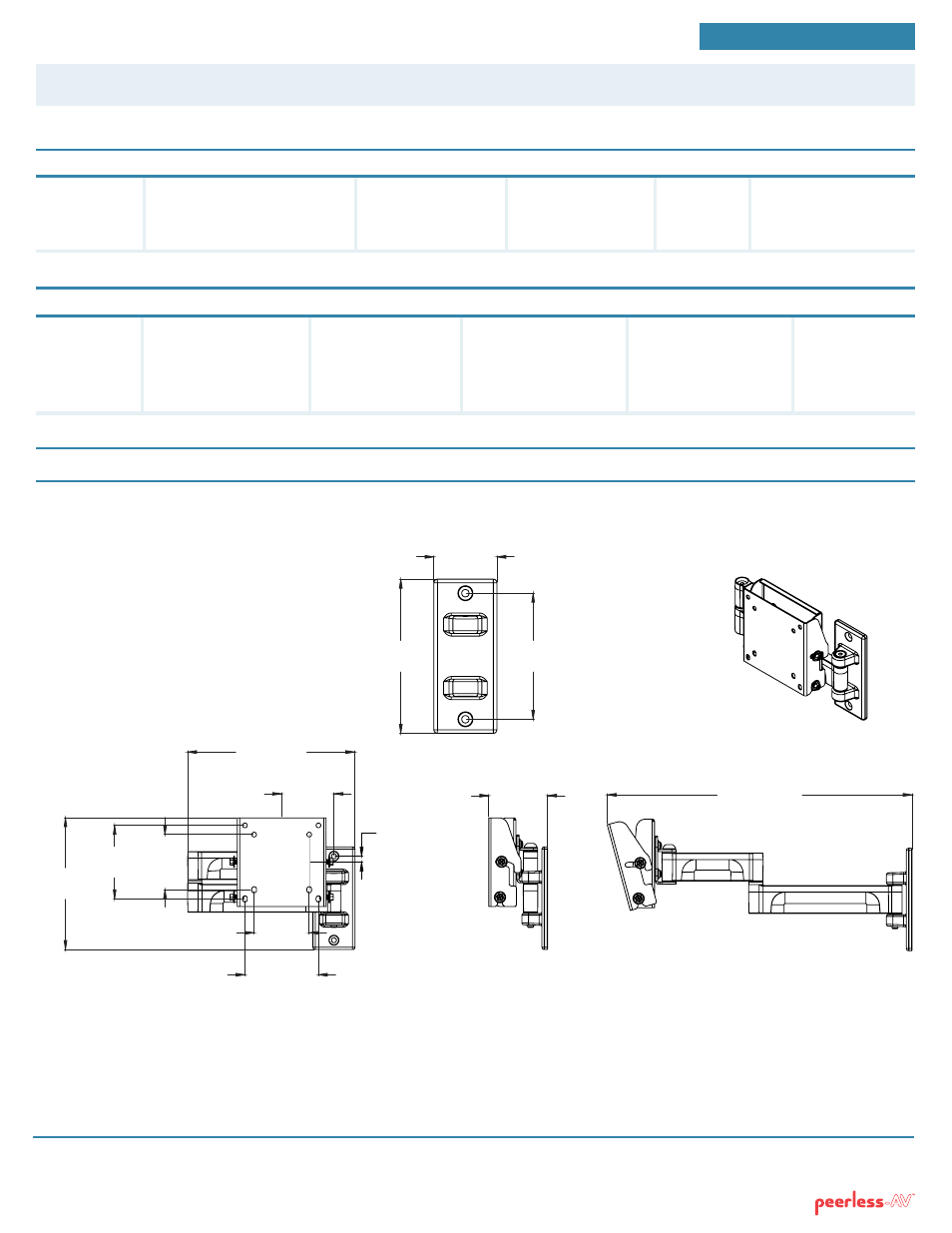

SidE ViEw
+15°/-5° TiLT
2.25"
(57mm)
5.50"
(140mm)
4.50"
(114mm)
waLL pLaTE
iSOmETriC ViEw
FrOnT ViEw
SidE ViEw
