PACKAGE SIZE (L x W x H) PACKAGE SHIP WEIGHT PACKAGE UPC CODE PACKAGE CONTENTS
UNITS IN
PACKAGE
HP455
31.75" x 8.50" x 3.75"
(806 x 216 x 95mm)
11lb (5kg) 10735029291609
Base, pole, adapter
brackets and
mounting hardware
1
Package Specifications
DImENSIONS (W x H x D) PRODUCT WEIGHT LOAD CAPACITy FINISH AVAILABLE COLORS
HP455
17" x 27" x 6"
(432 x 686 x 152mm)
9.3lb (4kg) 75lb (34kg)
Powder
Coat
Black
Product Specifications
Model Numbers
WARRANTY: Limited 5-year
A R C H I T E C T S S P E C I F I C A T I O N S
The Universal Desktop Swivel Mount shall be Peerless-AV model HP455 and shall be located where indicated on the plans. It shall be constructed of heavy gauge steel.
The finish shall be scratch resistant black fused epoxy. Assembly and installation shall be done according to instructions provided by the manufacturer.
All dimensions = inch (mm)
HP455 Universal Desktop Swivel Mount for 32" to 55" Flat Panel TVs
LIT-0917
Peerless Industries, Inc.  2300 White Oak Circle  Aurora, IL 60502  (800) 865-2112  (630) 375-5100  Fax: (800) 359-6500  peerless-av.com
Visit www.peerless-av.com to see the complete line of AV solutions from Peerless-AV, including flat panel mounts, projector mounts, carts/stands, furniture, cables, screen cleaners and a full assortment of accessories.
© 2012 Peerless Industries, Inc. Peerless-AV™ is a trademark of Peerless Industries, Inc. All rights reserved.
240°
30°
210°
30°
210°
240°
40°
60°
120°
90°

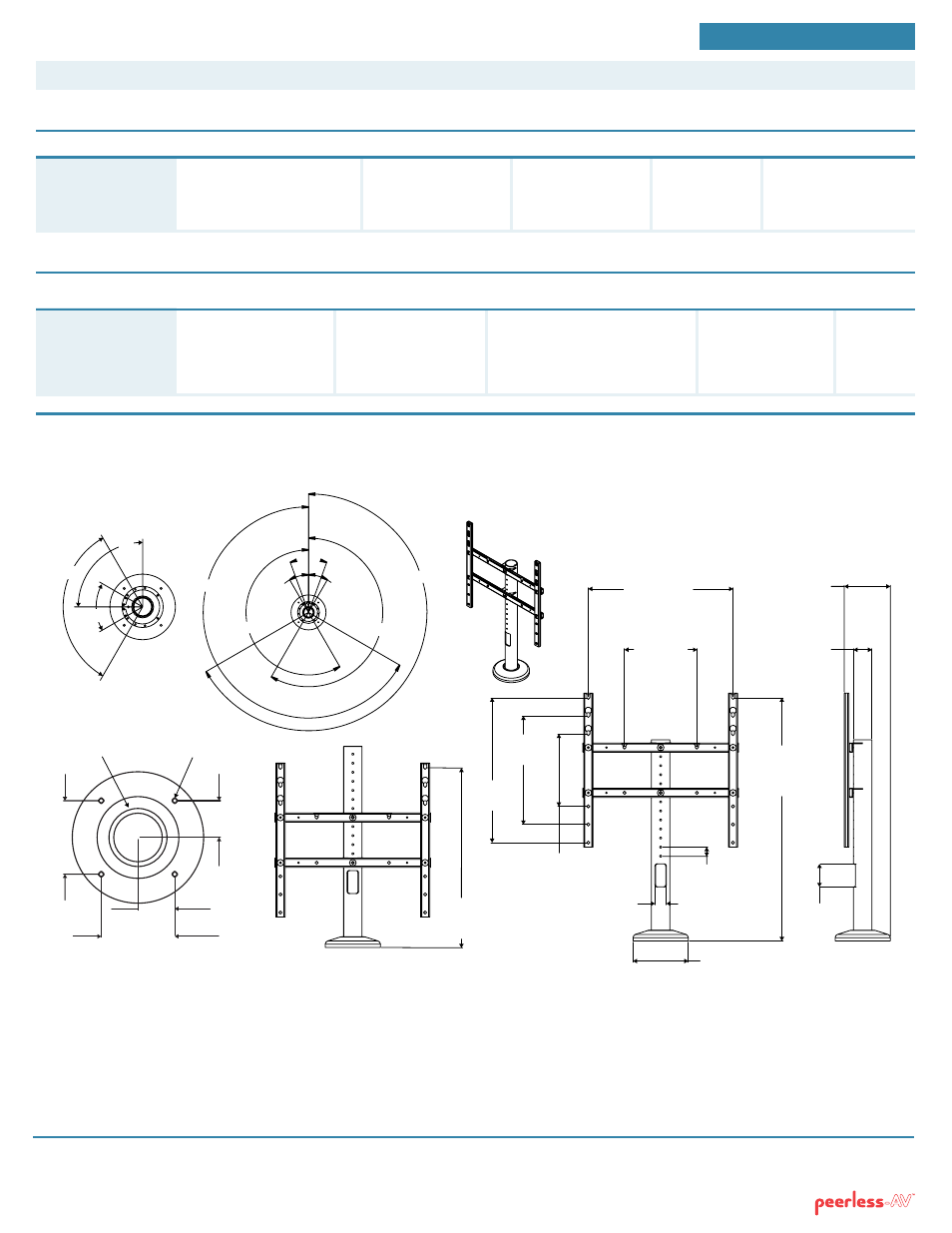

Mounting Template
