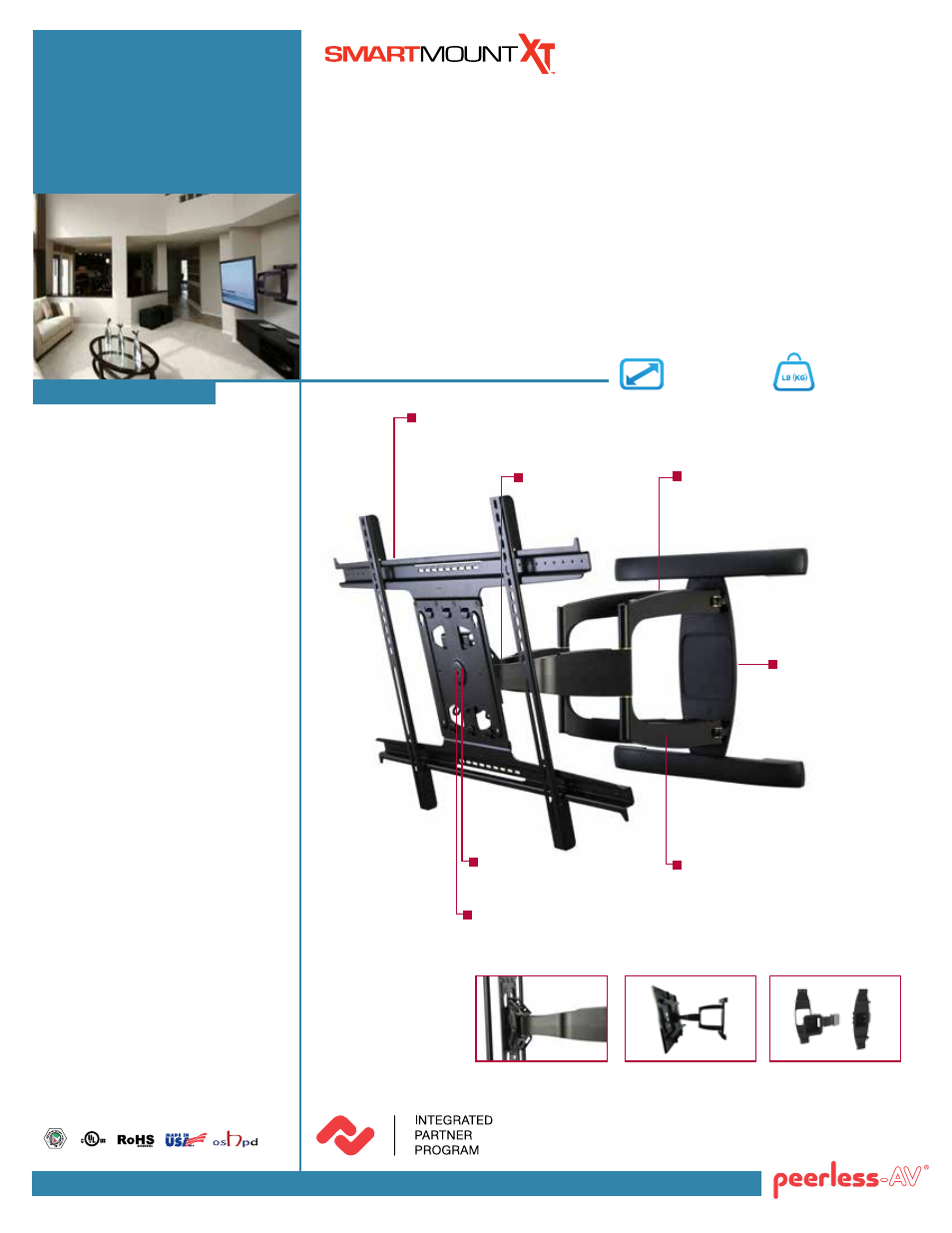

Universal Articulating Wall Arm
for 50" to 80" Displays
From any angle, this wall arm mount reflects remarkable form and function. Retracting the flat panel display
to a mere 2.6" (66mm) from the wall, extending it out to 26.54" (674mm) from the wall and allowing for a
full 180° of side to side motion offers the possibility of perfectly positioning displays up to 80". A double stud
and dual arm installation creates a more sound design for larger, heavier displays. With advanced features
such as post-installation height adjustment, roll and lateral shift, fine-tuning of the installation is quick and
simple. This articulating arm also integrates an internal cable management system that creates a clean
and organized installation, while at the same time protecting the cables. Integrate an in-wall cable and
power accessory into the wall plate cutout to complete the installation. Designed and built in the USA, this
mount maintains the same brilliant you expect to find with the SmartMount
® Series of Articulating and Pivot
Wall Arm Mounts, but provides the premium features you can only find with SmartMountXT TM .
Display size: 50"-80" Max load: 135lb (61kg)
SAX772PU
 Low-profile when retracted at
2.6" (66mm) and can extend
up to 26.54" (674mm) from the
wall
 Internal cable management
provides ample area to run
cables to complete a clean,
professional installation
 Stylish wall plate covers create
a finished look and are easy to
install and remove
 One-Touch™ tilt mechanism
allows adjustment of +15/-5°
without the use of tools
 ±5° of roll for post-installation
leveling
 Display can be rotated from
landscape to portrait without
removing the display
 ±0.5" of vertical adjustment
for post-installation height
adjustment fine-tuning
 Open wall plate design and
cutout increase electrical and
cable management options
 Dual arm, double stud
installation
FeatureS
LandScape to portrait
Rotate the display from landscape
to portrait without having to remove it
cLicK: peerless-av.com caLL: 800.865.2112 FaX: 800.359.6500
±5° oF roLL
For quick post-installation
leveling adjustments
one-touch™ tiLt
No tools required
for viewing angle
adjustments
VerticaL adjuStment
Up to 1" (25.4mm) of vertical adjustment
for fine-tuning the height of the display
open WaLL pLate
Wall plate cutout perfectly
integrates the ACCXT400
for in-wall cable routing
and powering the display
internaL cabLe management
Creates a clean, professional
installation while protecting and
organizing the cables
Contact your Peerless-AV sales representative for more information
duaL arm
Extra stability for
heavier displays
Arm retracts to just 2.60"
(66mm) and extends up to
26.54" (674mm) from the wall
Optional Accessory
ACCXT400
Up to 1" (25.4mm)
of height adjustment
Patented. Design Patent No. D623,634.
Utility Panent No. 8,561,955.
