1 of 1 ISSUED: 06-14-12 SHEET #: 125-9325-1

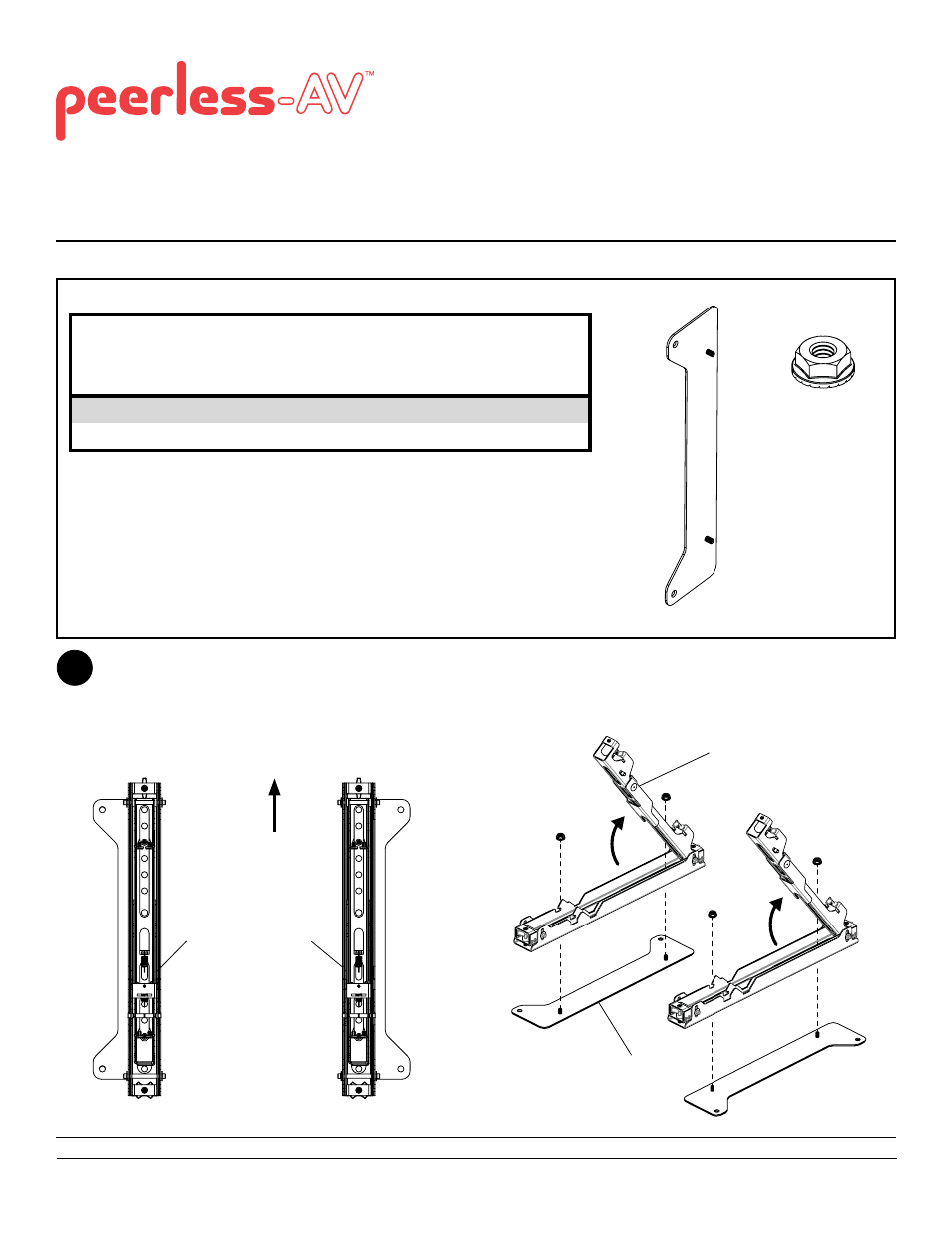

Installation and Assembly:
VESA 800 x 400 Adapter Brackets for DS-VW665 and
DS-VW765-LAND Video Wall Mounts
Models: ACC-DSVW8X4
2300 White Oak Circle • Aurora, Il 60502 • (800) 865-2112 • Fax: (800) 359-6500 • www.peerless-av.com
A
Parts may appear slightly different than illustrated.
B
Before you begin, make sure all parts shown are included with your product.
NOTE: Adapter plates (A) orientation as shown.
Secure adapter plates ( A) to front of adapter brackets (not supplied) using four
1/4-20 serrated flanged lock nuts ( B) as shown in figure 1.2.
NOTE: Use Instruction sheet and hardware supplied with the mount to install
display to adapter plates ( A).
1
FIGURE 1.1
ADAPTER
BRACKETS
(NOT SUPPLIED)
TOP
FIGURE 1.2
Description Qty. Part #
A adapter plate 2 145‐T1694
B 1/4‐20 serrated flanged lock nut 4 530‐1021
Parts List
ADAPTER
BRACKETS
(NOT SUPPLIED)
B
A
