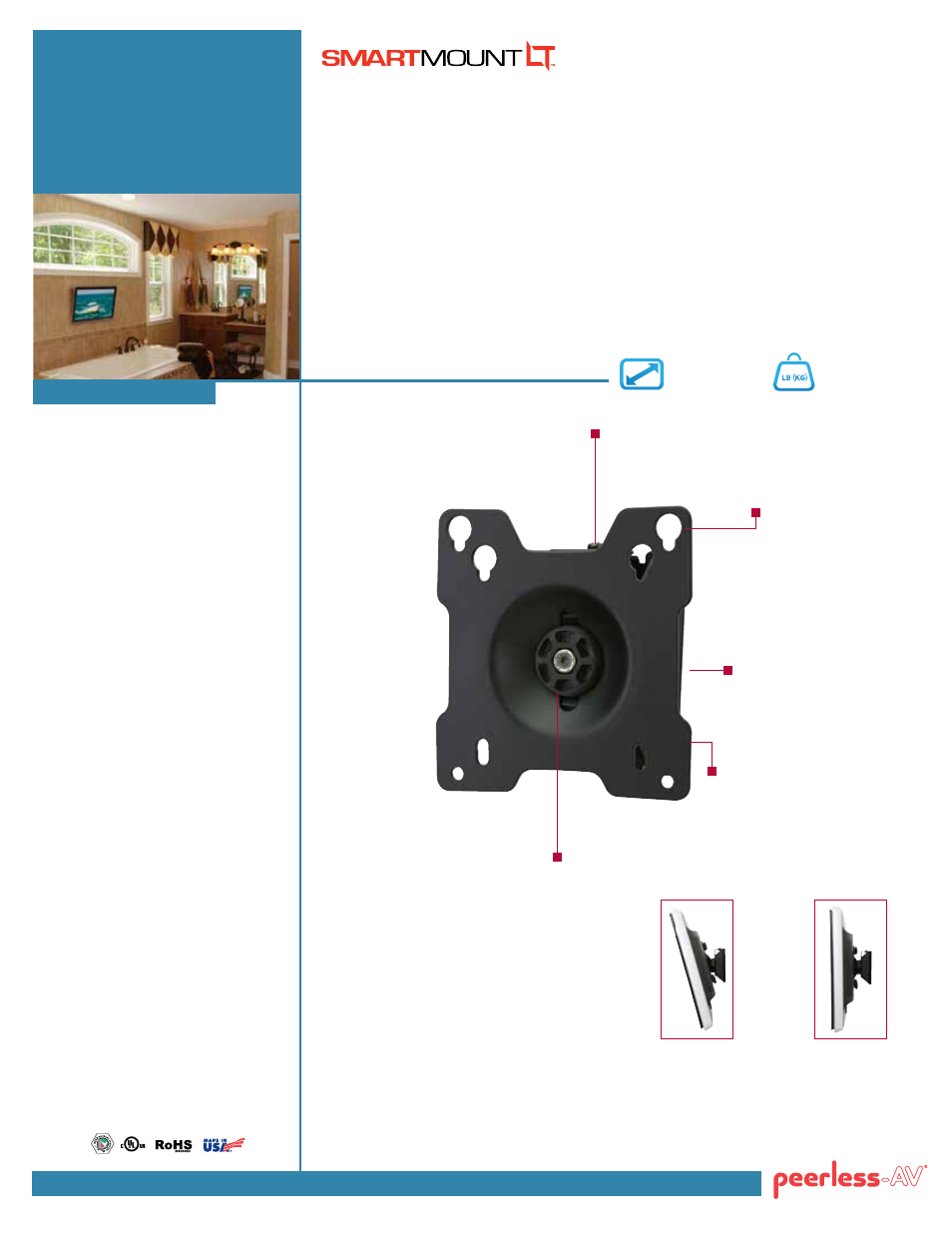

Peerless-AV STL624 - Sell Sheet - Manual

Tilting Wall Mount
For 10" to 24" Displays
The SmartMountLT™ series tilting wall mounts offer both easy installation and versatile display
adjustment. Designed for smaller displays, the mounts hold the display just 2.05" (52mm) from the
wall. The One-Touch™ tilt feature allows you to smoothly and easily adjust the viewing angle of
the display ±15°. After the display has been installed, the ±5° roll ensures the display is perfectly
level. The landscape or portrait mounting options offers versatility for installation applications.
Display size: 10"-24" Max load: 25lb (11kg)
STL624
 Fits 10" to 24" displays, up to
25lb (11kg)
 The low-profile design holds
the display just 2.05" (52mm)
from the wall.
 Quick and easy,
Hook-and-Hang™
one-person installation
 Landscape or portrait
mounting options increases
display versatility
 Easy leveling ±5° after display
installation
 Mounts to wood studs,
concrete, cinder block or
metal studs (metal stud
accessory required)
 VESA ® 75 and 100mm
compliant
 Installation hardware
included
 UL Listed
 Five-year warranty
FeatureS
CLICK: peerless-av.com CaLL: 800.865.2112 FaX: 800.359.6500
ONe-tOuCH™ tILt
Offers ±15° of viewing angle
adjustment
Low profile design — sits just
2.05" (55mm) from the wall
±15° of viewing angle
adjustment
SeCurINg SCrew
Locks the adaptor bracket onto
the wall plate, for a secure installation
KeyHOLe deSIgN
Saves installation time
LOw-prOFILe deSIgN
Holds display 0.57" (15mm)
from the wall, creating an
ultra-low-profile finish
HOOK-aNd-HaNg™ SyStem
Offers easy, one-person
installation of the display
