Peerless-AV IM746P - Sell Sheet - Manual

In-Wall Mount
For 22"-47" Displays
Make the most of your display experience by installing it flat against the wall with Peerless-AV
IM746P In-Wall Articulating Arm. Installation is quick and easy thanks to the mount’s stud-locating
tabs that fit the in-wall box snugly between 16" wood stud centers. View the display in its virtually
no-profile home position, or extend the arm up to 12.05" to watch it practically anywhere else
within the room.

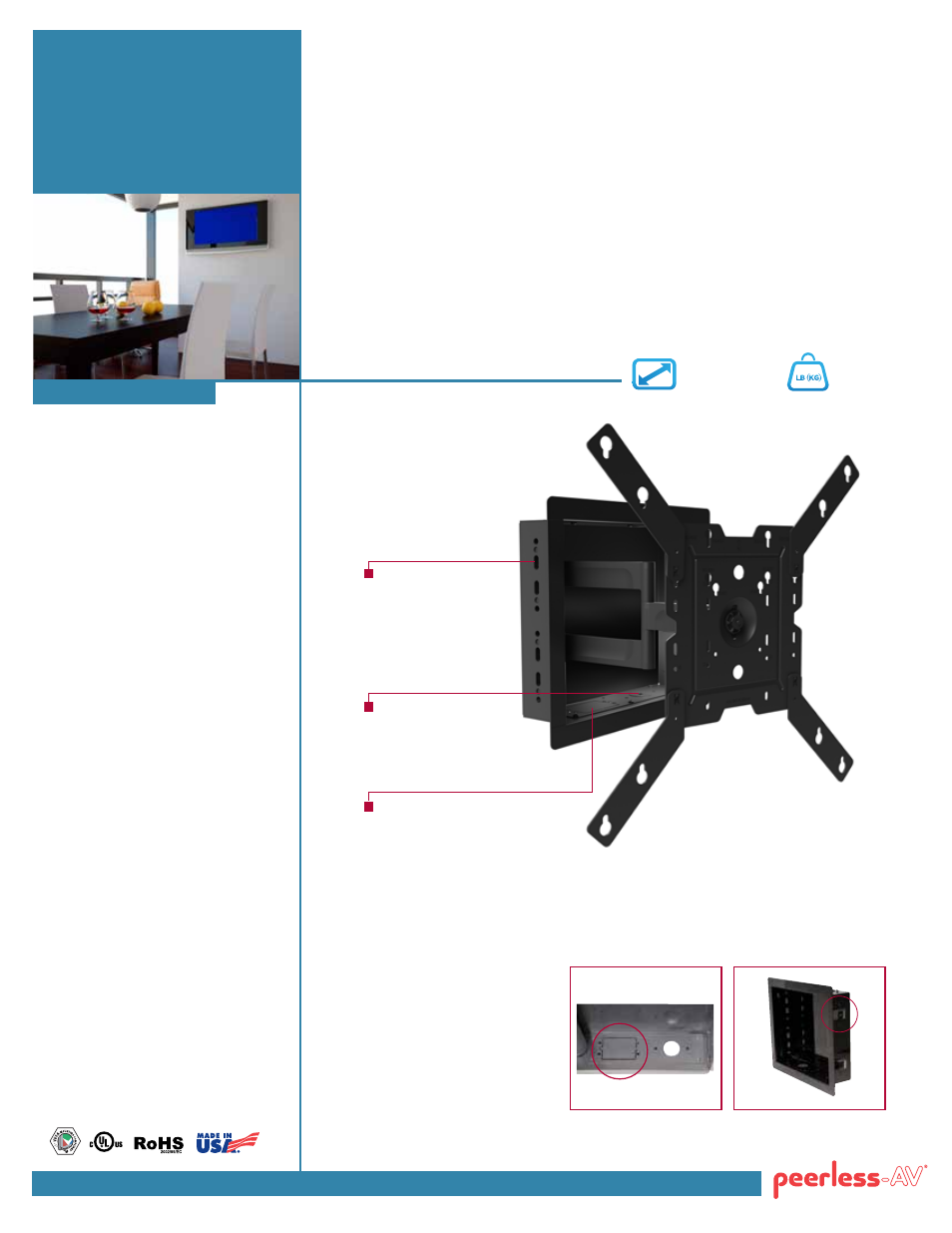

Stud locating tabs
Display size: 22"-47" Max load: 70lb (32kg)
IM746P
 Installs between 16" (406mm)
wood stud centers
 Stud-locating tabs adjust
¼" (6mm) left to right to
accommodate stud spacing
 Includes articulating mount
for 22"-47" displays
 Convenient installation
of power and cables
with removable outlet
receptacle and cable
access plates
 Height adjustment points
in box to set display in
desired position
 VESA ® 75, 100, 100 x 200,
200 x 100, 200 x 200, 300
x 200, 300 x 300, 400 x 300
and 400 x 400mm compliant
 Can be inverted to
position display to the
right or the left
FeatureS
Removeable outlet receptacle
SimpliFied
inStallation
Stud locating tabs
assist with a quick
and easy installation
power, no problem
Easily install an outlet with a built-in
removable outlet receptacle
Clean appliCation
Integrated cable
management provides
ample space to run cables
