A R C H I T E C T S S P E C I F I C A T I O N S
The Articulating Wall Mount shall be a Peerless-AV model SAL770 and shall be located where indicated on the plans. Assembly and installation shall be done accord-
ing to instructions provided by the manufacturer.
PACKAGE SIZE (W x H x D) PACKAGE SHIP WEIGHT PACKAGE UPC CODE PACKAGE CONTENTS UNITS IN PACKAGE
SaL770
21.25" x 12.00" x 3.50"
(540x305x89mm)
15.85lb (7.19kg) 735029292562
Wall mount,
attachment
hardware and
installation
instructions
1
Package Specifications
Accessories
DImENSIONS (W x H x D) PRODUCT WEIGHT LOAD CAPACITy FINISH AVAILABLE COLORS
SaL770
25.48" x 18.38" x 2.93"-21.32"
(647 x 467 x 74-544mm)
13.90lb (6.30kg) 105lb (48kg) Matte Black
Product Specifications
Model Numbers
WarraNty: Limited 5-year
SaL770 SmartMountLT™ Articulating Wall Mount for 37" to 70" Displays
aCC976: Security Fasteners
eShV10: Single AV Wall Shelf
eShV20: Single AV Wall Shelf with Glass
eShV30: Dual AV Wall Shelf with Glass
LIT-0989 rev.2
Peerless Industries, Inc.  2300 White oak Circle  aurora, IL 60502  (800) 865-2112  (630) 375-5100  Fax: (800) 359-6500  peerless-av.com
Visit peerless-av.com to see the complete line of AV solutions from Peerless-AV, including flat panel mounts, projector mounts, carts/stands, furniture, cables, screen cleaners and a full assortment of accessories.
© 2013 Peerless Industries, Inc. Peerless-AV ® is a registered trademark and SmartMountLT™ is a trademark of Peerless Industries, Inc. All rights reserved.

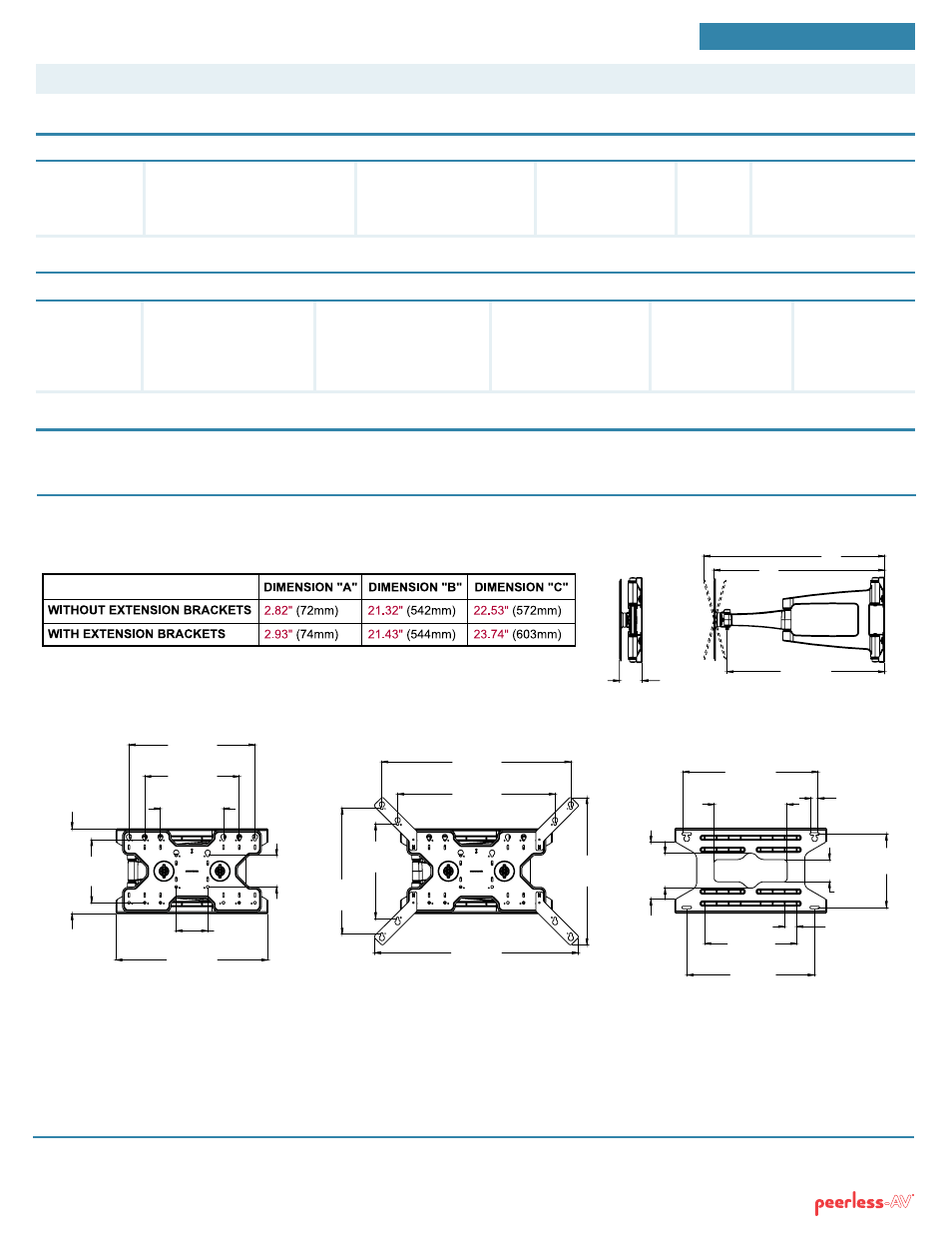

FroNt VIeW
WIthout eXteNSIoN BraCKetS
7.87"
(200mm)
11.81"
(300mm)
15.75"
(400mm)
7.87"
(200mm)
3.94"
(100mm)
3.94"
(100mm)
10.64"
(270mm)
19.00"
(483mm)
FroNt VIeW
WIth eXteNSIoN BraCKetS
19.69"
(500mm)
23.62"
(600mm)
11.81"
(300mm)
15.75"
(400mm)
18.38"
(467mm)
25.48"
(647mm)
WaLL PLate
16.88"
(429mm)
9.13"
(232mm)
0.88"
(22mm)
11.50"
(292mm)
1.50"
(38mm)
2.77"
(70mm)
7.05"
(179mm)
4.38"
(111mm)
16.00"
(406mm)
SIde VIeW
eXteNded
+/-15° tILt
SIde VIeW
CoLLaPSed
"A"
21.32"
(542mm)
"B"
"C"
7.05"
(179mm)
