LIT-1045
Model Number(s) WARRANTY: Limited 5-year

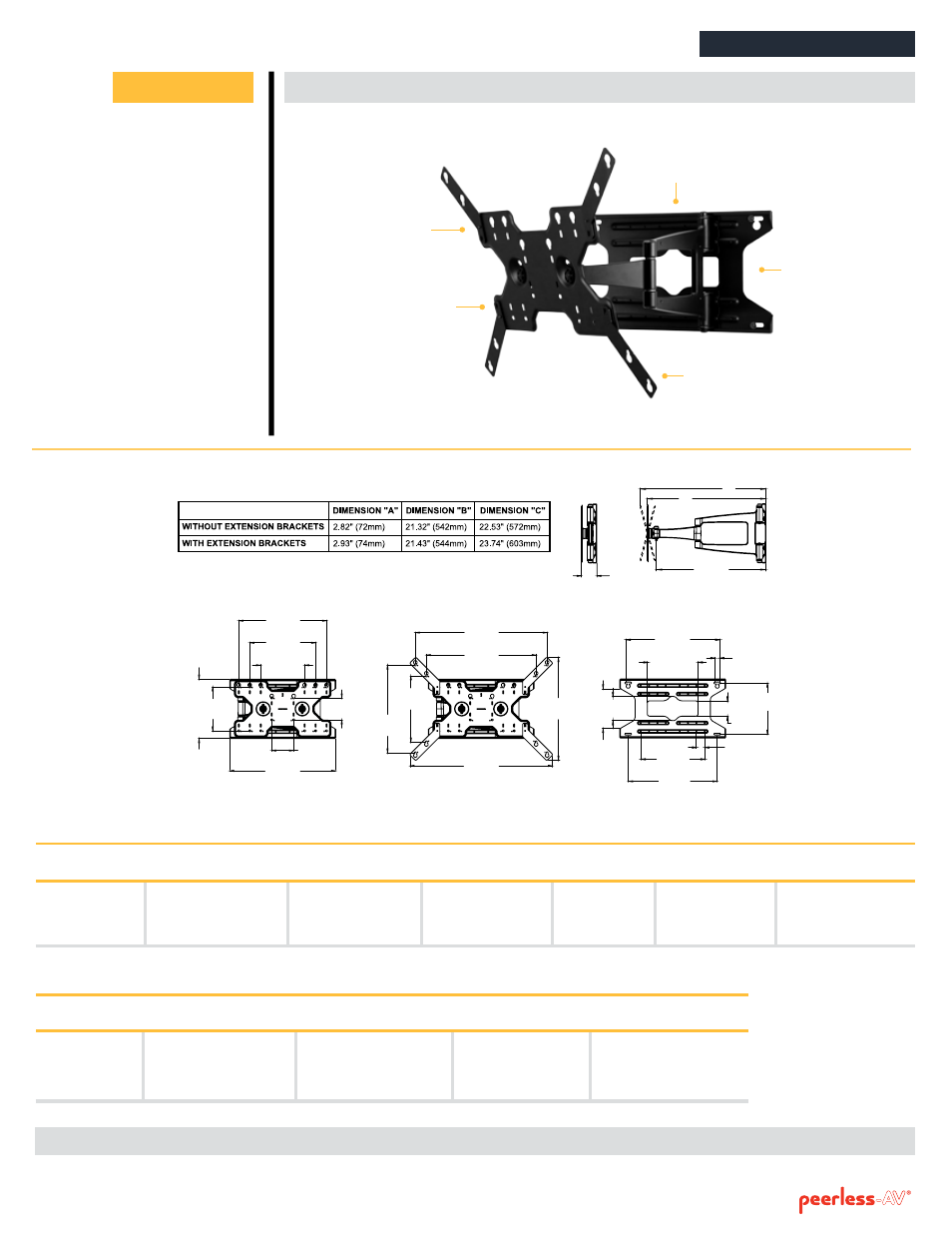

FULL-MOTION TILTING TV WALL MOUNT FOR 37"-70" TVs
The PRMALU articulating mount
gives you the ultimate TV positioning
and one-person, Hook-and-Hang™
easy installation, for larger TVs. The
articulating arm allows you to extend
the TV up 21.43" (544mm) from the
wall, and can retract to 2.93" (74mm)
from the wall. The integrated cable
management provides a clean,
professional finish. One-Touch™ tilt
of ±15°, ±5° roll for post-installation
leveling and ±90° of pivoting means
the TV will be perfectly positioned for
the optimum viewing angle.
PRMALU
Peerless Industries, Inc.  2300 White Oak Circle  Aurora, IL 60502  (800) 865-2112  (630) 375-5100  Fax: (800) 359-6500  peerless-av.com
Visit peerless-av.com to see the complete line of AV solutions from Peerless-AV, including flat panel mounts, projector mounts, carts/stands, furniture, cables, screen cleaners and a full assortment of accessories.
© 2013 Peerless Industries, Inc. Peerless-AV ® is a registered trademark and Paramount TM is a trademark of Peerless Industries, Inc. All rights reserved.
All dimensions = inch (mm)
Ordering Specifications
PACKAGE SIZE
(L x W x H)
PACKAGE
SHIP WEIGHT
PACKAGE
UPC
UNITS IN
PACKAGE
LoAd CAPACITy AVAILABLE CoLoRS
PRMALU
21.3" x 12.0" x 3.5"
(541 x 305 x 89mm)
17.4lb (7.8kg) 735029294320 1 105lb (48kg) Black
Product Specifications
MASTER PACK SIZE
(L x W x H)
MASTER PACK
SHIP WEIGHT
MASTER PACK
UPC
UNITS IN
MASTER PACK
PRMALU
22.5" x 7.5" x 12.8"
(570 x 189 x 326mm)
35.8lb (16.2kg) 10735029294327 2
ES
FRONT VIEW
WITHOUT EXTENSION BRACKETS
7.87"
(200mm)
11.81"
(300mm)
15.75"
(400mm)
7.87"
(200mm)
3.94"
(100mm)
3.94"
(100mm)
10.64"
(270mm)
19.00"
(483mm)
FRONT VIEW
WITH EXTENSION BRACKETS
19.69"
(500mm)
23.62"
(600mm)
11.81"
(300mm)
15.75"
(400mm)
18.38"
(467mm)
25.48"
(647mm)
WALL PLATE
16.88"
(429mm)
9.13"
(232mm)
0.88"
(22mm)
11.50"
(292mm)
1.50"
(38mm)
2.77"
(70mm)
7.05"
(179mm)
4.38"
(111mm)
16.00"
(406mm)
SIDE VIEW
EXTENDED
+/-15° TILT
SIDE VIEW
COLLAPSED
"A"
21 . 32"
(542mm)
"B"
"C"
7.05"
(179mm)
VESA ® COMPATIBLE
Accomodates a variety
of TV mounting paterns
MOUNTS TO WOOD STUD,
CONCRETE, CINDER
OR BREEZE BLOCK
Can be mounted anywhere
in the home
HOOK-AND-HANG ™
INSTALLATION
TV is easily installed
by a single person
±15° ONE-TOUCH™ TILT
Easily adjust the angle of the TV
without the use of tools
EXTENDS UP TO
21.32" (542mm)
Offers the perfect
viewing angle
