Accessories
WL-SA761PU-200: PeerAir™ Wireless Articulating Wall Mount for 42" to 60" Flat Panel Displays
PACKAGE SIZE (L x W x H) PACKAGE SHIP WEIGHT PACKAGE UPC CODE PACKAGE CONTENTS UNITS IN PACKAGE
WL-SA761PU-200
35.250" x 21.187" x 5.438"
(895 x 538 x 138mm)
54.25lb (24.61kg) 735029292852
· Articulating Wall Mount
· Wireless Transmitter unit with stand
· Wireless Receiver unit
· Remote control
· 2 x 12V 2A power supply
· IR Flasher
· IR Extender
· 15-Pin D-Sub to RCA female component
video breakout cable
· 2 x 2.5ft (.75m) HDMI cable
· 4 x Mounting brackets (2 short, 2 long)
· 4ft (1.22m) Cable management sheath
· 3-tap grounded outlet
· Mounting hardware
· Instruction manual
1
Package Specifications
Wireless Range 131ft (40m)
Video Input (Transmitter) 2 x HDMI up to 1080p (60Hz), 1920x1080
1 x Composite
1 x YPbPr Component
Video Output (Receiver) 1 x HDMI up to 1080p (60Hz), 1920x1080
1 x Composite
1 x YPbPr Component
Audio 2 Ch. Linear PCM, Analog, 48kHz 16-bit ADC
Audio Input 1 x 3.5mm Audio Jack (Transmitter)
Audio Output 1 x 3.5mm Audio Jack (Receiver)
WiFi Frequency 5.15-5.25GHz
Latency < 30ms
Power Voltage 120 VAC, Consumption: 12V 2A
Part Number WL-SA761PU-200
Display Size 42" to 60"
Max Load 130lb (59kg)
Universal Mounting Pattern (W x H) 686 x 439mm (27" x 17")
VESA ® Mounting Pattern up to 600 x 400mm
Distance from wall 4.449"-27.559" (113-700mm)
Swivel | Tilt | Roll 90° | +15°/-5° | +/-5°
Product Weight 48.05lb (21.80kg)
Finish Scratch resistant fused epoxy (mount),
High Gloss Polycarbonate (Wireless Integration Modules)
Color High Gloss Black
Product Specifications
All dimensions = inch (mm)
A R C H I T E C T S S P E C I F I C A T I O N S
The Wireless Articulating Wall Mount shall be a Peerless-AV model WL-SA761PU-200 and shall be located where indicated on the plans.
Assembly and installation shall be done according to instructions provided by the manufacturer.
LIT-0778 rev.3

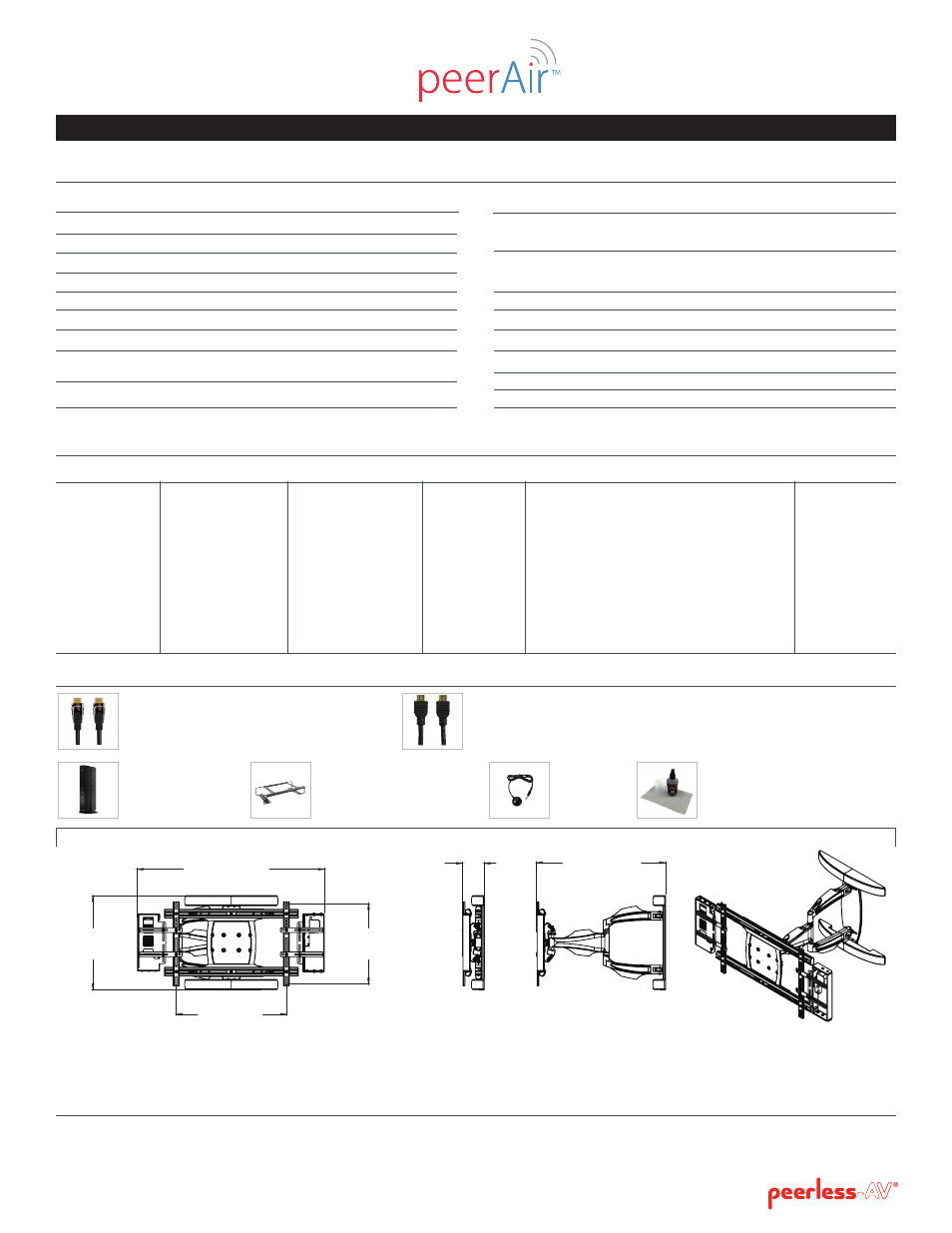

20.12"
(511mm)
17.29"
(439mm)
40.15"
(1020mm)
23.62"
(600mm)
MAX
4.66"
(118mm)
27.68"
(703mm)
FRONT VIEW
SIDE VIEW
EXTENDED
ISOMETRIC VIEW
SIDE VIEW
RETRACTED
Wireless Solutions
Visit peerless-av.com to see the complete line of AV solutions from Peerless-AV, including wireless devices, interactive devices, flat panel mounts, projector mounts, carts/stands, furniture, cables, screen
cleaners and a full assortment of accessories.
© 2012 Peerless Industries, Inc. All rights reserved. Peerless-AV ® is a registered trademark and PeerAir TM is trademark
of Peerless Industries, Inc. HD Flow™ is a trademark of I Do It, LTD. Other parties’ marks are the property of their respective owners.
CL-SCG200:
Screen
Cleaning Gel
HDS200-R:
HD Flow TM Pro Wireless
Multimedia Receiver
DE-HD0075B:
Delta 2.5ft (.75m)
High Speed HDMI
Cable with Ethernet
EC-HD015F:
1.5ft (.5m) High
Speed HDMI Cable
with Ethernet
EC-HD03F:
3ft (1m) High
Speed HDMI Cable
with Ethernet
EC-HD025F:
2.5ft (.75m) High
Speed HDMI Cable
with Ethernet
HDS-IRE:
IR Extender
for use with
HDS200-R
DE-HD01B:
Delta 3ft (1m)
High Speed HDMI
Cable with Ethernet
HDS-ASE:
Wireless Tx/Rx Security
Enclosure for use with HD
Flow and HD Flow Pro Models
Peerless-AV  2300 White Oak Circle  Aurora, IL 60502  (800) 865-2112  (630) 375-5100  Fax: (800) 359-6500  peerless-av.com  peerair.peerless-av.com
