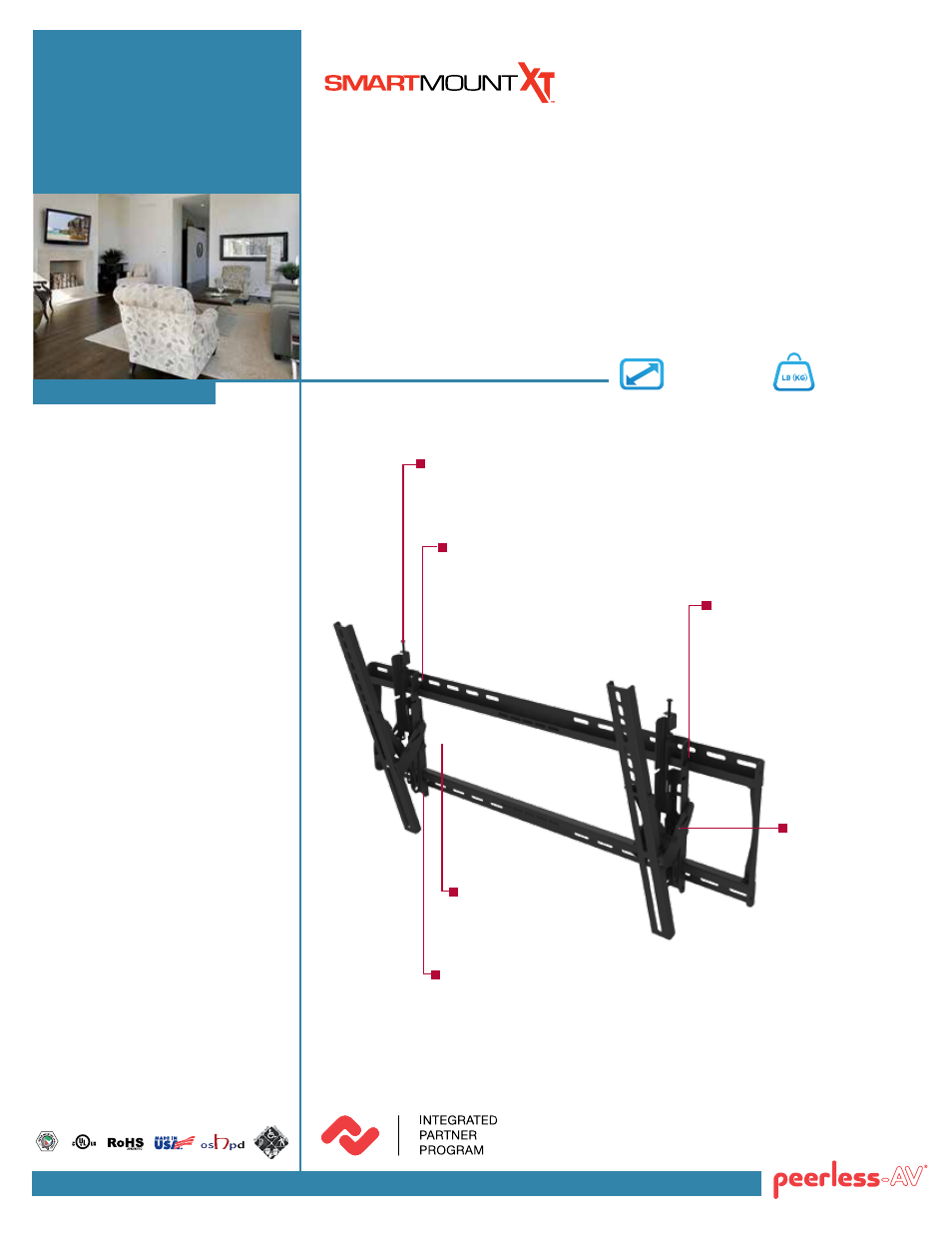

Universal Tilt Wall Mount
for 39" to 80" Displays
Limitless placement opportunities are delivered with speed and ease with both horizontal and
vertical adjustment capability. Its slim, open wall plate architecture delivers display placement
flexibility and enables hands-free behind-the-display access along with cable management.
Quick and easy installation and optional IncreLok™ Tilt technology complete the ultimate
secure, low profile display installation.
Display size: 39"-80" Max load: 150lb (68kg)
STX660(P)
STX660L
 Open wall plate design
allows for total wall access,
increasing electrical and
cable management options
 Pre-tensioned universal tilt
adaptor brackets offer up to
+15/-5° of One-Touch™ tilt
adjustment in one easy motion
 Optional IncreLok™ feature
offers fixed tilt lock in 5°
increments
 Easy-Glide™ design ensures
that the display is securely
attached to the wall plate
 5º of back tilt offers 3" of
space for hands-free, behind
the display access
 Up to 23" of horizontal
adjustment for centering
display on wall
 Up to 1" of vertical adjustment
on each universal display
adaptor bracket for post-
installation leveling and height
adjustment fine-tuning
 Increased security with
included Master Lock 510KAD
keyed-alike padlock on
locking model
 Universal tilt adaptor brackets
easily hook onto wall plate for
fast installation
 Low profile design holds
display 1.69" (43mm) from
the wall
 Fits displays with mounting hole
patterns from 100 x 100mm
(3.94"W x 3.94"H) to 805 x
433mm (31.71"W x 17.04"H)
FeatureS
Secure InStallatIon
Theft resistant screws/
padlock on secure and
locking units
clIcK: peerless-av.com call: 800.865.2112 FaX: 800.359.6500
oPen arcHItecture
Open wall plate architecture
for flexible cable management
and wall placement
VIewIng FleXIbIlIty
Up to 23" of horizontal
adjustment for centering
display on wall
eaSy InStallatIon
Universal display
adaptor brackets easily
hook onto wall plate for
fast installation
Ideal VIewIng angle
Pre-tensioned universal
tilt adaptor brackets
offer up to +15/-5°
of One-Touch™ tilt
adjustment in one
easy motion
PoSt-InStallatIon adJuStMent
±0.5" of vertical adjustment for
post-installation leveling and height
adjustment fine-tuning
Contact your Peerless-AV sales representative for more information
Patented. Design Patent No. D659.689. Utility Panent No. 8,313,073; 8,348,212; 8,282,059; 8,517,322.
