A R C H I T E C T S S P E C I F I C A T I O N S
LIT-0486 Rev.3
PACKAGE SIZE (W x H x D) PACKAGE SHIP WEIGHT PACKAGE UPC CODE PACKAGE CONTENTS UNITS IN PACKAGE
Pt660
31.8" x 8.63" x 3.88"
(808 x 219 x 99mm)
10.5lb (4.8kg) 735029254898
Wall plate, universal
adaptors, mounting
and display attachment
hardware
1
Package Specifications
Accessories
DImENSIONS (W x H x D) PRODUCT WEIGHT LOAD CAPACITy FINISH AVAILABLE COLORS
Pt660
30.75" x 18.50" x 2.56"-5.64"
(781 x 470 x 65-143mm)
9.6lb (4.4kg) 200lb (91kg) Matte Black
Product Specifications
Model Numbers
WarraNtY: Limited 5-year
aCC925: Security Fasteners
aCC415: 4-pack Metal Stud Fastener Kit
All dimensions = inch (mm)

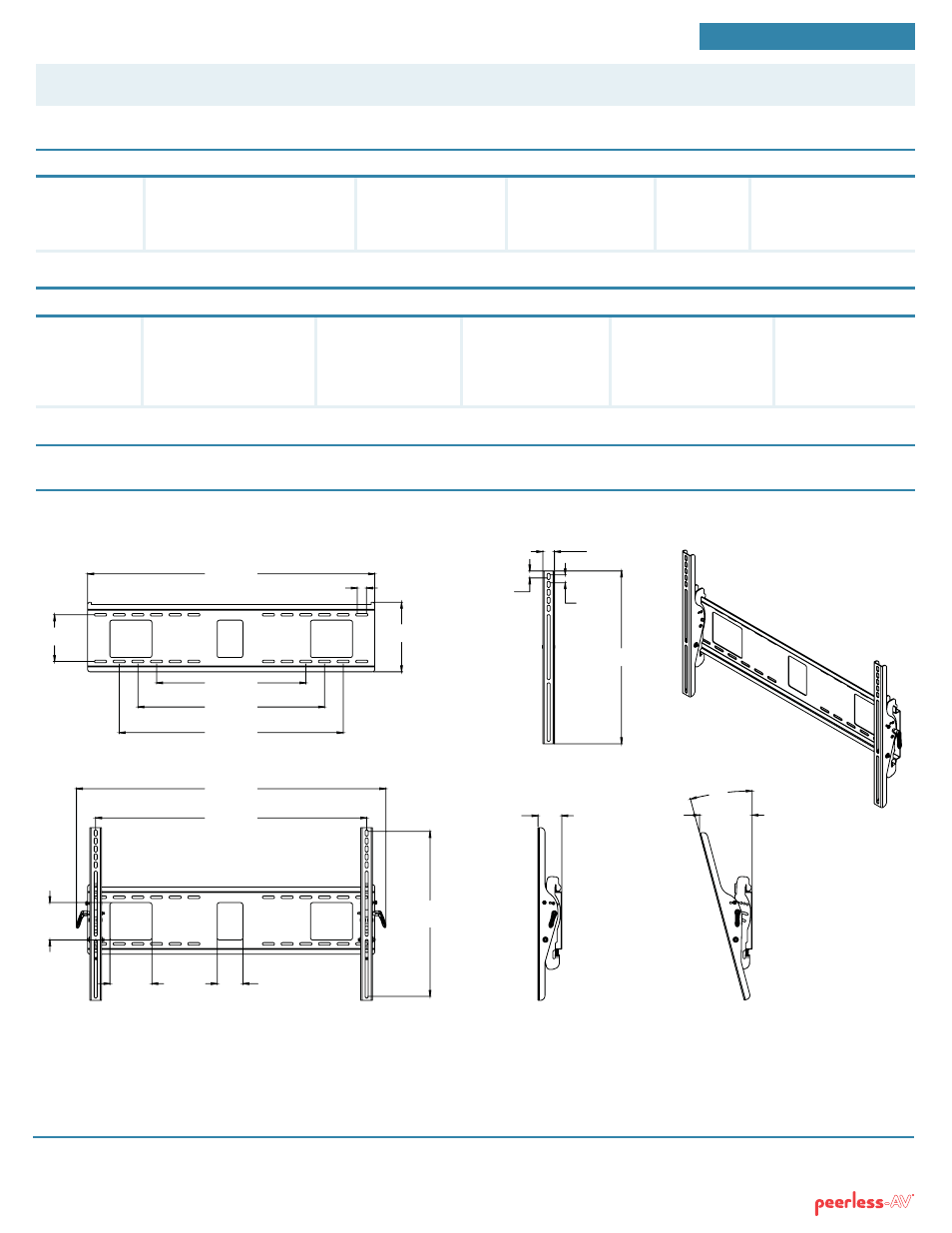

Pt660 Universal Tilt Wall Mount for 37" to 60" Displays
FrONt VIeW SIde VIeW
15° tILt
VertICaL adaPter
SIde VIeW
ISOMetrIC VIeW
29.04"
MAX.
(738mm)
17.67"
MAX.
(449mm)
33.16"
(842mm)
2.75"
(70mm)
4.50"
(114mm)
4.00"
(102mm)
2.56"
(65mm)
5.64"
(143mm)
15°
30.75"
(781mm)
1.00"
(25mm)
7.45"
(189mm)
5.00"
(127mm)
16.00"
(406mm)
20.00"
(508mm)
24.00"
(610mm)
18.50"
(470mm)
0.85"
(22mm)
0.75"
(19mm)
1.25"
(32mm)
WaLL PLate
The Universal Tilt Wall Mount shall be a Peerless-AV model PT660 and shall be located where indicated on the plans.
Assembly and installation shall be done according to instructions provided by the manufacturer.
