3 of 9 ISSUED: 07-25-11 SHEET #: 090-9205-5 11-30-12
LCT620AD
Description Qty
A column assembly 1
B double link arm assembly 2
C grommet assembly 1
D round rubber pads 2
E square rubber pads 2
F M4 x 12 mm phillips screw 8
G M4 x 25 mm phillips screw 8
H spacer 8
I 4 mm allen wrench 1
J 2.5 mm allen wrench 1
K cable clip 1
L cable tie 5
M M6 x 12 mm phillips screw 2
N M6 plastic washer 2
O cover 2
P dual arm support 1

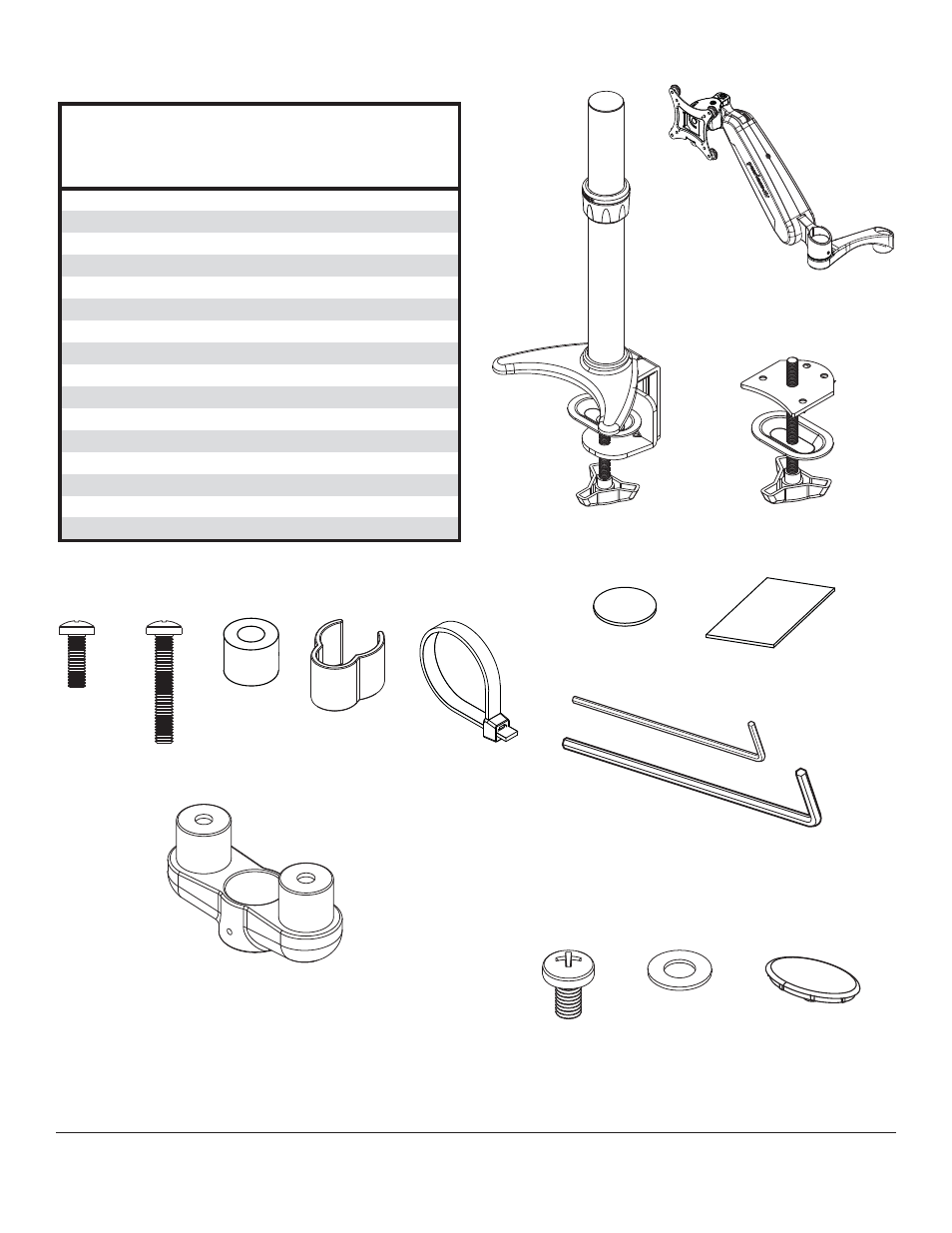

Parts List
Parts may appear slightly different than illustrated.
Before you begin, make sure all parts shown are included
with your product.
J
I
A
B
C
D
E
K L
P
M N O
F G H
