INSTALLATION INSTRUCTIONS 3

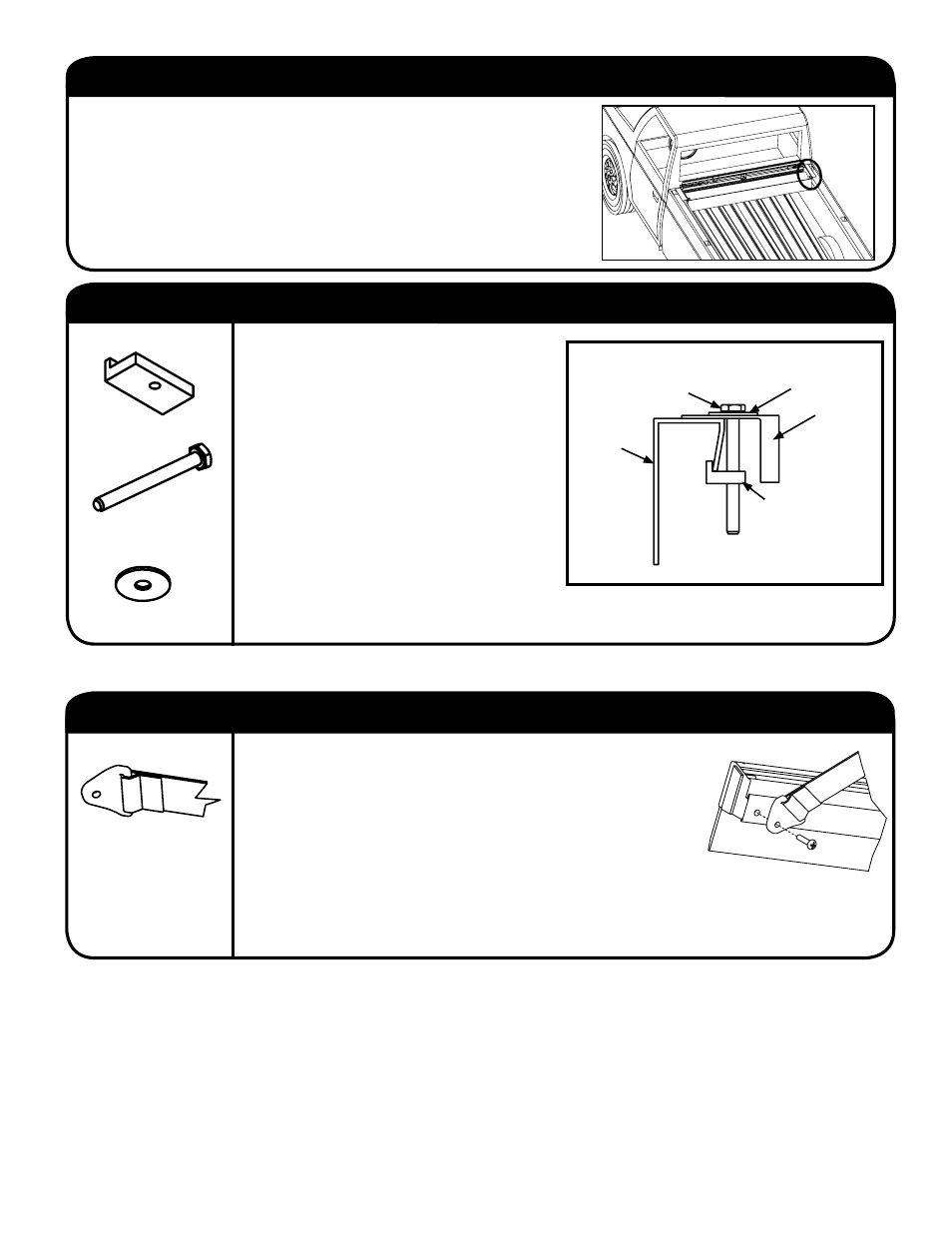

STEP 1: POSITIONING CANISTER
Remove the top cover from the canister box and set it aside for later
installation. Perform a quick inventory to insure all parts are there. Be
sure to check inside the small cardboard box for parts.
Remove the Canister from the box and set it in the truck bed against
the cab.
The canister should be resting on the canister end plates and be
centered in the truck bed.
Open the rail box along the length of the box; lift rails out to avoid
scratching the rail surface on the package staples.
The side rails are marked “left” and “right” (left is the driver’s side
of the truck).
REMOVE PROTECTIVE PAPER ON UNDERSIDE OF RAILS.
THIS IS FOR PACKAGING PURPOSES ONLY.
With the tailgate closed, place the side rails in position on the truck
bed.
Install the tailgate end of the pull strap to the underside of the
drivers side rail using the #8-32 x 3/4 machine screw located at the
tailgate end on the underside of the rail.
STEP 3: INSTALL TAILGATE END OF PULL STRAP
HARDWARE USED:
PULL STRAP x 1
(TAILGATE END)
STEP 2: FASTEN CANISTER
Slide canister against the front cab sill of the
bed so that the canister and rails rest fi rmly
on the sides of the truck bed.
Center the canister side-to-side on the truck
bed and fasten it in place with the canister
clamps.
Use one canister clamp per side of canister.
Install ¼” - 20 x 2 ¾” bolt with fender washer
through one of the slots in each end of the
canister and attach the Canister Clamp.
(Figure 2)
HARDWARE USED:
CLAMP WASHER x 2
CLAMP BOLT
(1/4-20 x 2 3/4”) x 2
CANISTER CLAMP x 2
FIG. 2
Hex Bolt
Flat Washer
Canister
Truck Bed
Rail
Canister Clamp
