Pace-Edwards JR Series Rail Shimming - Manual (Page 2)

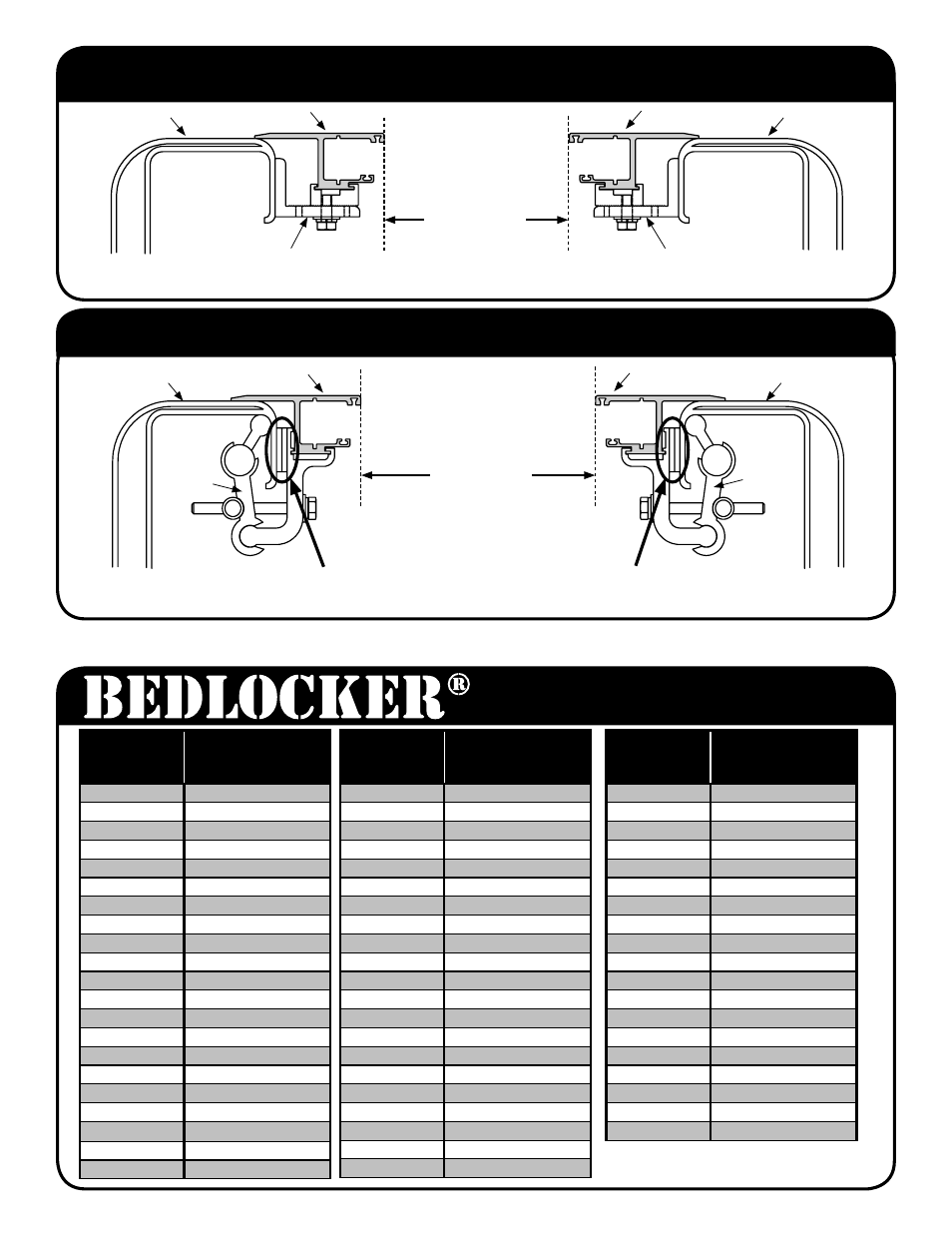

TRUCK BED RAIL TRUCK BED RAIL
“BR”
MEASUREMENT
LEFT RAIL RIGHT RAIL
SHIM CLAMP
(USED WHEN GAP BETWEEN RAIL AND TRUCK
BED IS GREATER THEN 3/8”)
SHIM CLAMP
(USED WHEN GAP BETWEEN RAIL AND
TRUCK BED IS GREATER THEN 3/8”)
WHEN GAP BETWEEN THE RAIL IS GREATER THAN 3/8” USE SHIM CLAMP (USUALLY IN
FRONT NEAREST THE CANISTER)
See full details on how to install the clamps in the Installation Instructions manual. If you have any questions please call
Pace Edwards Technical Support.
SPEEDCLAMP SHIMMING RAILS SUP-0411
BETWEEN BETWEEN
PART PART RAILS (BR) RAILS (BR)
NUMBER NUMBER MEASUREMENT MEASUREMENT
BL2024 49 13/16”
BL2025 46 5/16”
BL2026 46 9/16”
BL2027 46 9/16”
BL2028 59 11/16”
BL2029 59 11/16”
BL2030 59 11/16”
BL2031 50 9/16”
BL2032 59 11/16”
BL2035 51 7/16”
BL2037 52 7/16”
BL2038 49 7/16”
BL2039 54 7/16”
BL2051 59 15/16”
BL2052 59 15/16”
BL2053 59 15/16”
BL2054 58 15/16”
BL2055 58 15/16”
BL2056 58 15/16”
BL2057 52 7/16”
BL2058 52 15/16”
BETWEEN BETWEEN
PART PART RAILS (BR) RAILS (BR)
NUMBER NUMBER MEASUREMENT MEASUREMENT
BL2001 52 15/16”
BL2002 52 15/16”
BL2003 59 15/16”
BL2004 59 15/16”
BL2006 54 7/16”
BL2007 60 15/16”
BL2008 60 15/16”
BL2009 43 3/16”
BL2010 51 7/16”
BL2011 51 7/16”
BL2012 62 3/16”
BL2013 62 3/16”
BL2014 61 11/16”
BL2015 61 11/16”
BL2016 54 7/16”
BL2017 58 9/16”
BL2018 58 9/16”
BL2019 49 7/16”
BL2020 46 9/16”
BL2022 60 3/16”
BL2023 60 3/16”
BETWEEN BETWEEN
PART PART RAILS (BR) RAILS (BR)
NUMBER NUMBER MEASUREMENT MEASUREMENT
BL2059 55 15/16”
BL2060 50 9/16”
BL2061 54 7/16”
BL2063 52 15/16”
BL2064 51 7/16”
BL2065 58 3/16”
BL2066 58 3/16”
BL2067 58 3/16”
BL2068 58 3/16”
BL2069 61 3/16”
BL2070 61 3/16”
BL2071 52 15/16”
BL2072 51 7/16”
BL2074 52 15/16”
BL2077 59 5/16”
BL2078 59 15/16”
BL2079 59 15/16”
BL2080 46 5/16”
BL2082 54 7/16”
Part #’s & BR Measurements
“BR”
MEASUREMENT
TRUCK BED RAIL TRUCK BED RAIL
LEFT RAIL RIGHT RAIL
SPEED
CLAMP SPEED
CLAMP
PLASTIC SHIMS
(USE WHEN GAP BETWEEN THE RAIL
AND TRUCK BED IS LESS THEN 3/8”)
PLASTIC SHIMS
(USE WHEN GAP BETWEEN THE RAIL
AND TRUCK BED IS LESS THEN 3/8”)
WHEN GAP BETWEEN THE RAIL IS LESS THAN 3/8” USE THE PLASTIC SHIM PIECES ON THE
BACK OF THE SPEED CLAMPS
