Step 2: remove front cms rail – Pace-Edwards JR Series Chevy w_Cargo Management System option User Manual
Page 3
INSTALLATION INSTRUCTIONS
3

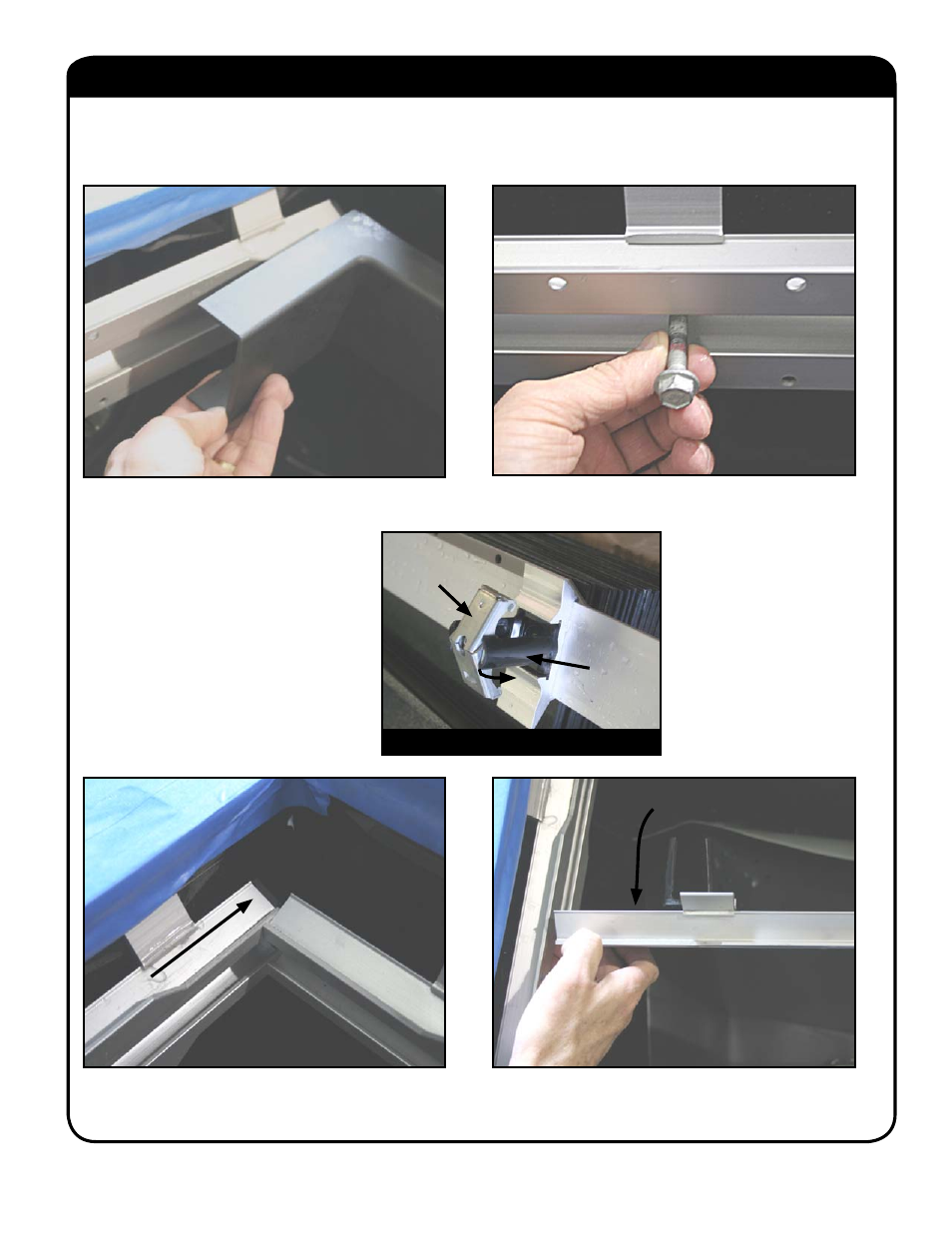

1. Remove black plastic corner trim pieces in
front of the truck bed
2. Using a 1/2” socket remove the three (3)
bolts holding the front CMS in place.
3. Reach in between the cab
and the front of the truck bed
and release the Butterfl y nut
by prying open the plastic
keepers. (backside of removed
CMS rail pictured.) Pry open
the Keeper and the Butterfl y
nut should fall out.
4. Slide the CMS Rail all the way to the right (passenger side) and remove it by leading the
left side (drivers side) out fi rst.
2007 Chevrolet trucks with the cargo management system (CMS) option will require removal of the front
CMS rail. Please follow the below instructions to remove the rail before installing your Pace Edwards
Cover.
Butterfl y nut
Plastic
Keeper
BACKSIDE OF CMS RAIL SHOWN
STEP 2: REMOVE FRONT CMS RAIL
