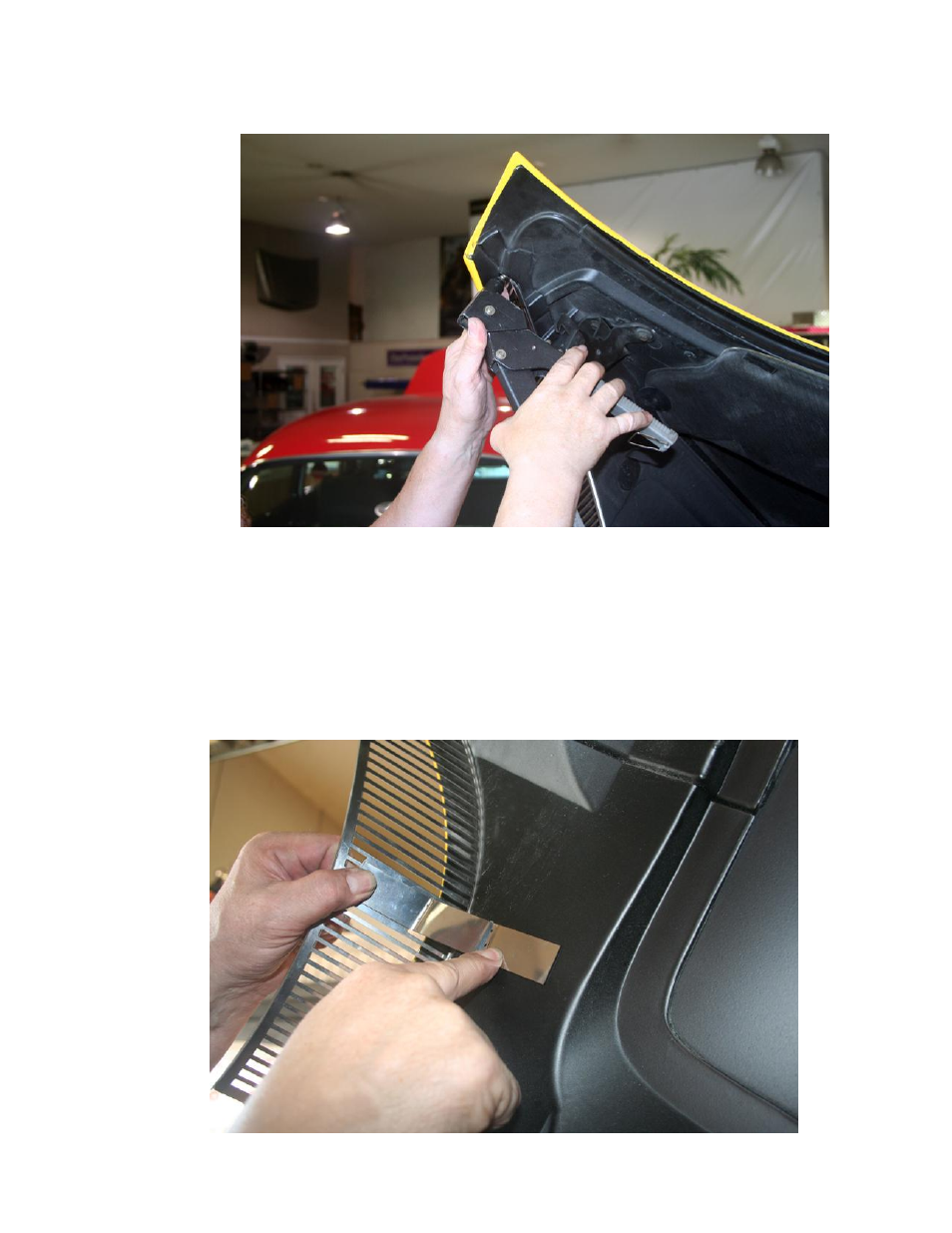

7. At this time rivet the top of the grille using the rivet provided. Note: You may also use the

screws provided instead of the rivets if you do not have access to a rivet gun. If using the
screws simply screw them into the hole so they are tight. Do not over tighten.

8. You have been provided with a stainless bracket which is designed to

attach directly to the grille behind the badge, over to the hood fender
wall. Scrub the two points of attachment with household rubbing alcohol,
let dry then swipe once with the adhesive promoter provided.

9. Now, simply peel and stick the bracket and set into position pressing firmly to both

areas to set.
