2. Before you replace these bolts with our kit bolts take a minute to set the panel into position to get a good
idea of how it will rest in place and to see how much forming you will need to do in order to allow the panel to
sit nice and flat.

3. Install all six replacement bolts making sure not to over tighten them as they are hollow and will break. Just
snug will work perfect. Make sure the two smaller length bolts are installed at the two front, center locations.

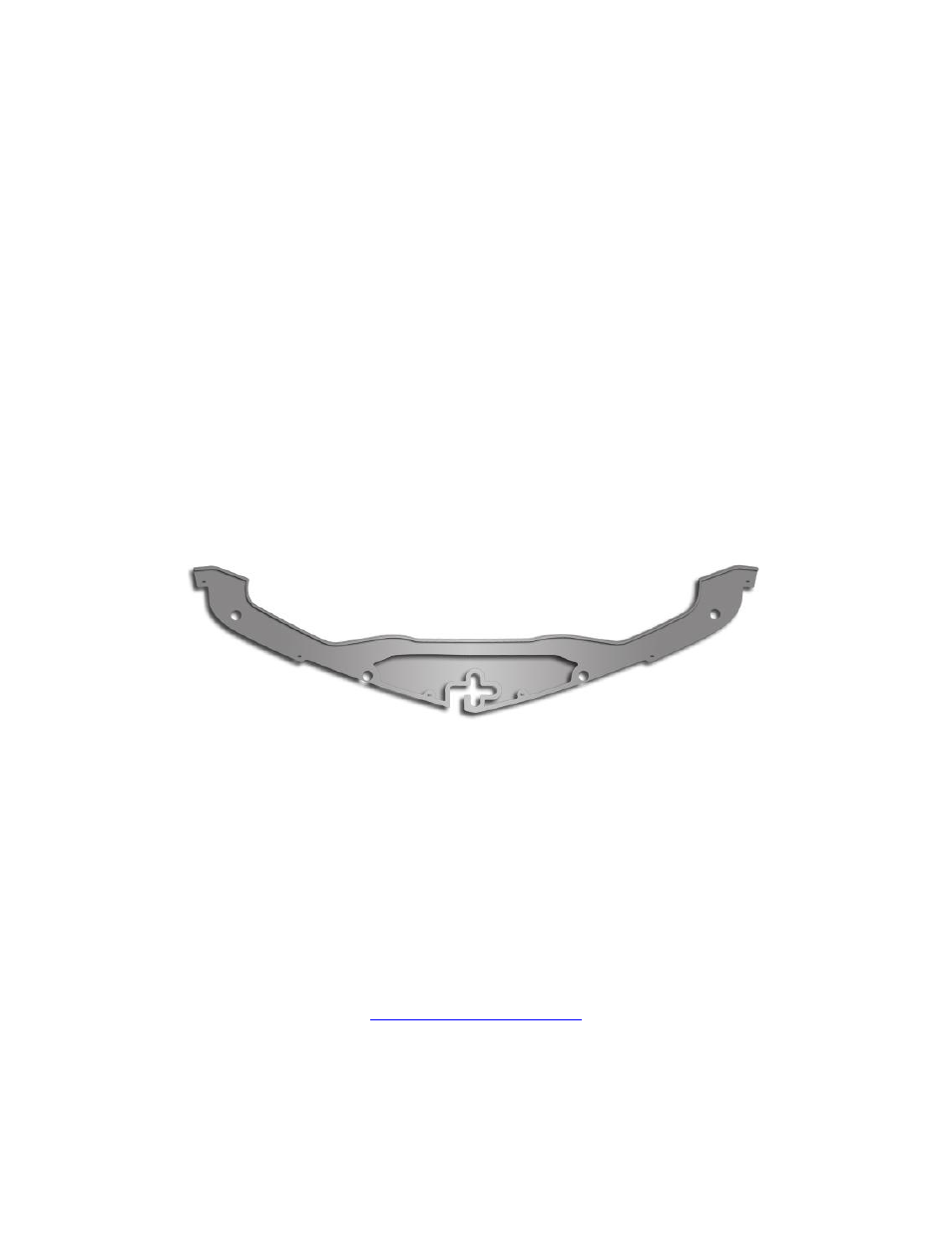

4. With all six bolts in place set the new panel in position and align all the holes. Install all six screws but do not
tighten them until all of them are started. This will allow you to make sure the panel is set nice and even. Once
the panel is sitting nice and flush with the factory header, snug the screws.

5. Remove the protective liner and then set the six Velcro donuts over the screw heads by removing the peel
liner from the back of the donuts allowing you to stick them in place. Then simply set the 1'' chrome screw
covers in place over the screws to finish the installation.

American Car Craft LLC

18924 Sakera Rd Hudson, FL. 34667

Ph 727.861.1500 Fax 727.861.1520

www.americancarcraft.com
