AMERICAN CAR CRAFT INSTRUCTION

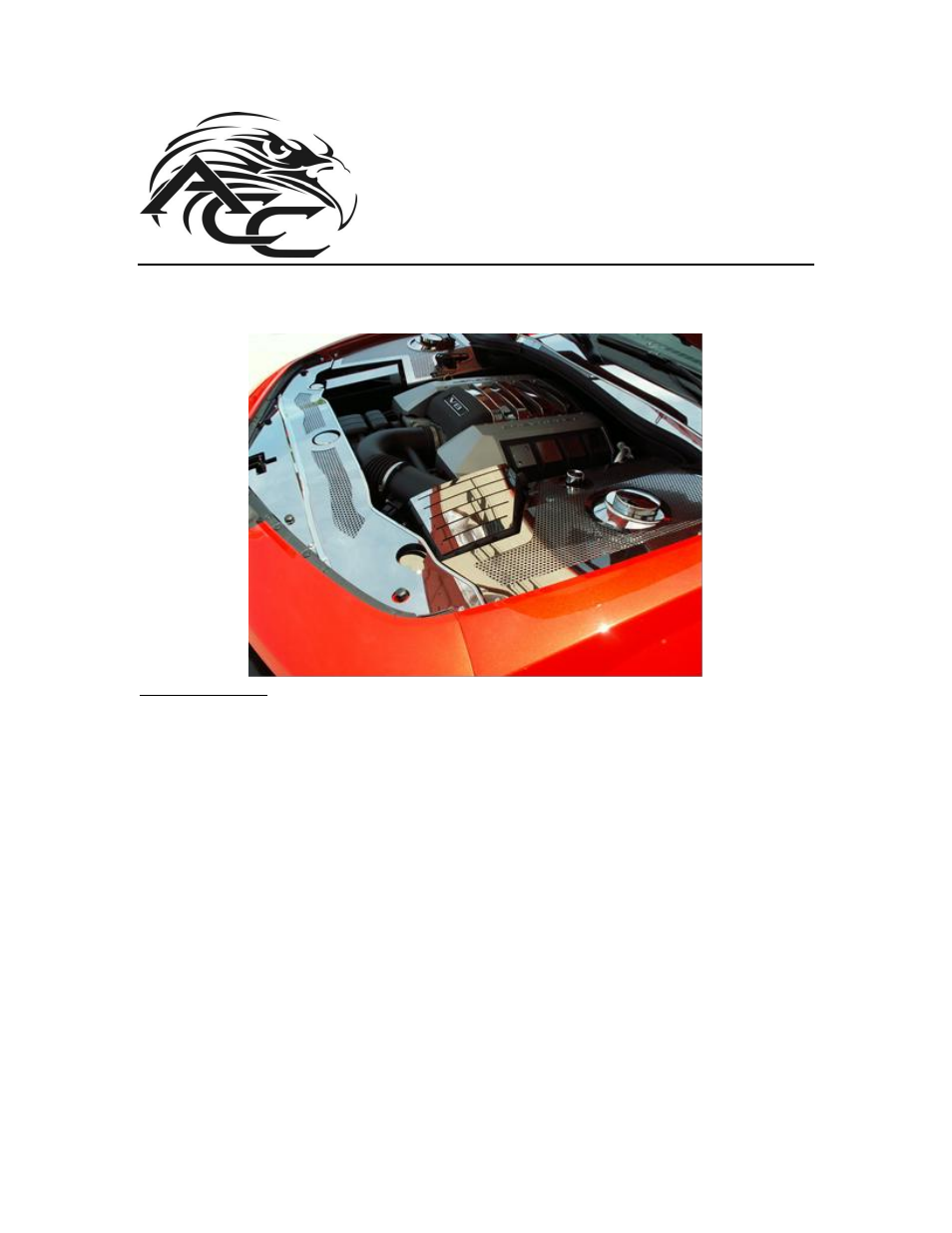

POLISHED PERFORATED RADIATOR COVER
PART#103022
PARTS INCLUDED:
1-Stainless Radiator Cover
2- Small ¼” Stainless Washers
2-Large ¼” Fender washers
2-Thick Spacer washers
4-M6 1.0 X 25MM replacement bolts
2-1'' chrome caps with Velcro donuts
4-6/32 X ½” Pan Head Screws
1-Adhesive Promoter Pack
1-1/2 Decorative Cap
1-Angled Flat Bottom Cap
1-Decorative Top Hat Cap 129NC 1” Shaved Smooth
Your new cover comes with a protective liner; do not remove liner until prompted by
instructions.
The new Camaro radiator support cover has been designed to attach to the top of the factory
bolts. This is a unique system not seen before that will enable you to attach the cover without
drilling any holes in your new car. You will simply replace four factory bolts with threaded
replacement bolts as your attachment points.
