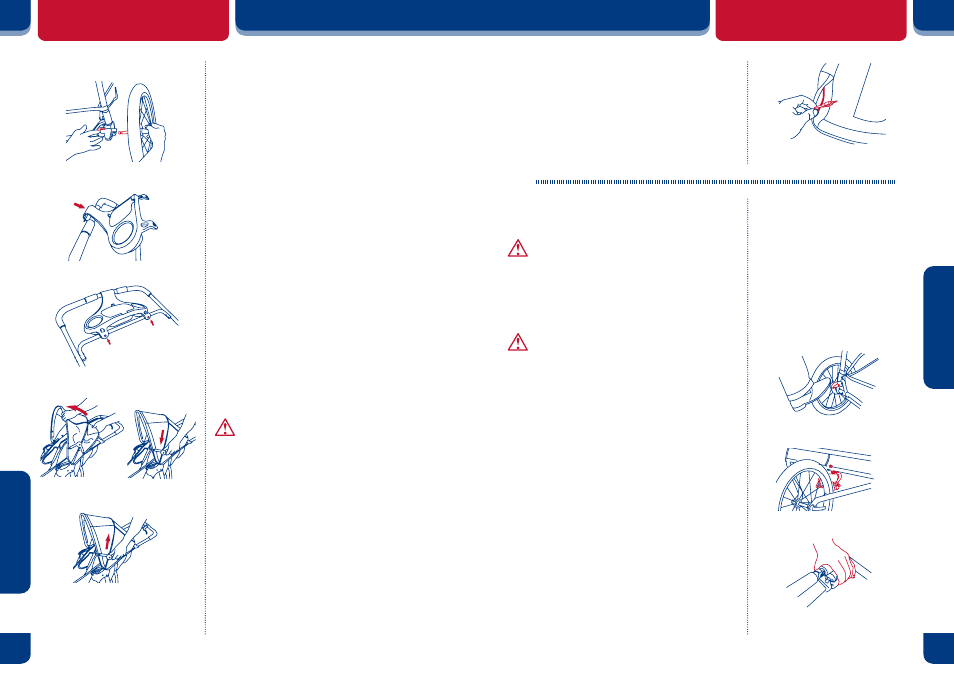

Page 5: Type 1, Type 2

Fig. 8

Fig. 9a

Fig. 9b

Snap

Insert Screws

Fig. 10

Fig. 11

Open

REAR WHEEL

Lean the stroller forward to rest on the front

wheel. To attach the rear wheels, push each

wheel's axle into the plastic corner fitting as

shown in Fig. 8. Depress the metal lever on the

inside of the corner fitting as you push the axle

into corner fitting. When the wheel will not go

on any farther, release the lever. Check that the

wheel has locked into the corner fitting by pulling

on the wheel. If not locked, lift upward on the

lever, push the wheel on farther and release lever.
Ensure that the wheels are firmly locked

into place.

NEVER

use the stroller if the

wheels are not locked into place, contact our

customer service department immediately at

1-800- 328-7363, between the hours of 8:00am

and 4:30pm PST, for assistance.

PARENT TRAY

To attach the parent tray, position the parent tray

in the center of the stroller handle.

• Snap the upper portion of the tray over the

handle as shown in figure 9a.

• Attach the lower portion of the parent tray to

the cross tube, with the screws provided, as

shown in figure 9b.

WARNING:

Do not place

hot liquids or more than 3 pounds

in the parent tray. Serious burns or

unstable conditions could result.

CANOPY

To open the canopy: push forward on the front

edge of the canopy. (Fig. 10) Push downward on

the tensioners to secure.
To fold the canopy: pull upwards on the

tensioners and then pull backwards on the front

edge. (Fig. 11)

Fig. 12

Fig. 13

Fig. 14

Fig. 15

Type 1 only

SAFETY

ype 1

MP3 SPEAKER

(if equipped)

The canopy comes with a speaker sewn into a

mp3 storage pocket on the side of the canopy. The

speaker has a wire with a male jack for use with

mp3 player so you and your child can listen to

music while you jog. Connect male end of speaker

wire into your mp3 player. (Fig. 12)

Your stroller is now ready to use.

Before placing your children in the stroller,

please follow the instructions below.

WARNING:

Always

check with your pediatrician for a

recommended starting age / weight

for your baby in an all terrain

stroller.

WARNING:

Always set

brakes when the stroller is not being

pushed so that the stroller will not

roll away. NEVER leave stroller

unattended on a hill or incline as

the stroller may slide down the hill.

BRAKES

To engage brakes, apply light downward pressure

to the brake lever located on each rear wheel. The

stroller may require slight forward or rearward

movement in order to line up the teeth on the

brake with each wheel brake cluster. (Fig. 13)

Check that the stroller will not move and that both

brakes are properly applied. To release, gently lift

up on the brake lever.
Your stroller may come equipped with a caliper

brake system. (Fig. 14) The front wheel bicycle

style caliper brake system that is designed to assist

you in slowing the stroller on a hill or in the event

of an emergency. Squeeze the brake handle to

slow the stroller. (Fig. 15) The hand brake is not

to be used as a parking brake.

ype 2

ASSEMBLY
