ASSEMBLY

IMPORTANT!

To ensure safe operation of your stroller,

please follow these instructions carefully. Please keep these

instructions for future reference.

IMPORTANT!

Before assembly and each use, inspect this

product for damaged hardware, loose joints, missing parts or sharp

edges. NEVER use if any parts are mssing or broken.

IMPORTANT!

Adult assembly is required.

Type 2: Swivel Front Wheel

Remove stroller from box. The front wheel, rear

wheels, fender, and parent tray need to be installed

prior to use.

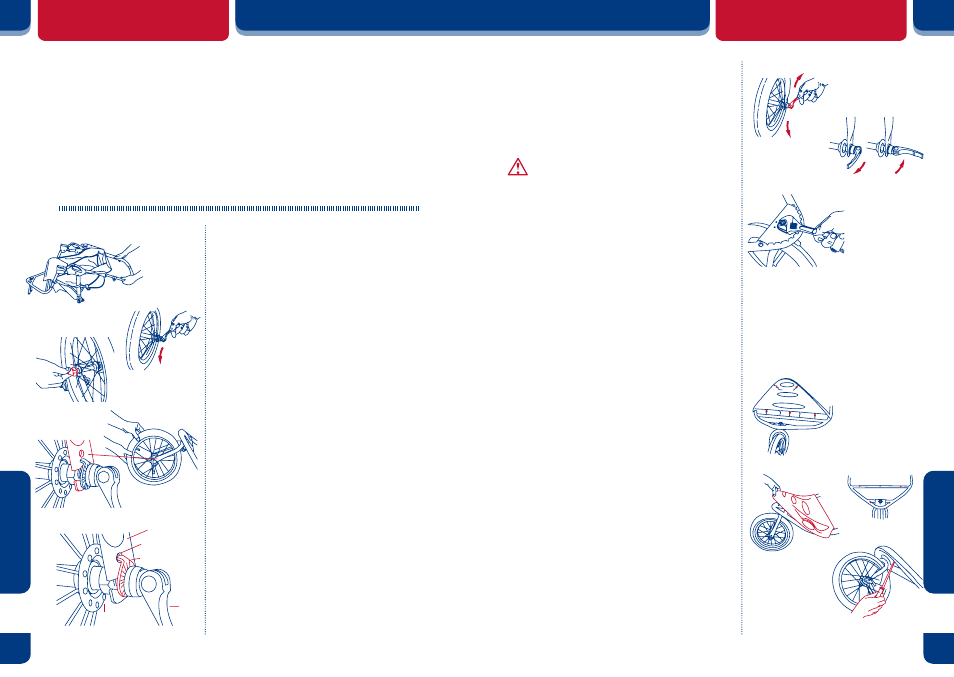

FRONT WHEEL

To attach the front wheel, unfold stroller as

described in the section following:

• Lean the stroller backwards so that it rests on

the handle and rear axle frame and the front

wheel forks are pointing upward. (Fig. 1)

• The front wheel features a quick release

attachment system. The quick release must be

open enough for the wheel to slide on the forks.

Rotate the lever forward to loosen one side

(Fig. 2a) and loosen the finger nut on the other

side. (Fig. 2b)

• Slide the front wheel onto the front forks.

(Fig. 3a) Make sure the front forks are in the

position as shown on Fig. 3b.

• Line up the tab on the Retainer Plate with the

Slot on both sides of the forks. (Fig. 3c)

IMPORTANT! The tab on the Retainer Plate

must be lined up with the slot before tighten

the wheel.

• With the wheel in position, tighten the

finger nut on the axle until it is very close

to contacting the fork and rotate the lever to

tighten it as shown in Fig. 4.

Open

Fig. 5

Fig. 7a

Fig. 7b

Fig. 7c

Fig. 7d

Fig. 6

Tighten

Loosen

Fig. 4

• Close the lever (Fig. 5) and you should feel

significant resistance and the wheel should be

held tightly. If you do not, open the lever and

tighten the finger nut a bit more and close the

lever again. Continue to do this until the wheel

is held tightly in the fork.

DO NOT OVER TIGHTEN

WARNING:

Always make

sure the lever is in closed postion

before use. Leaving the lever in

opened postion can cause the wheel

to fall off.

• If you experience front wheel wobble that is

beyond what is normal for use while walking

or jogging you may have to adjust the front

wheel housing nut. This nut is located under

the footrest located at the front of the jogger.

You can use a standard cresent wrench to

tighten the nut.

DO NOT OVER TIGHTEN

this can cause

damage to the wheel housing. (Fig. 6)

FENDER

To secure the fender to the frame, use the 5 screws

provided.

• Examine the bottom of the front fender. You

will notice four 1/4 inch diameter plastic tubes

protruding from the bottom (Fig. 7a).

•These tubes must be lined up with the holes in

the front frame assembly (Fig. 7b).

•Line up the front fender and press onto the

front frame assembly (Fig. 7c).

•Insert the 5 screws through the underside of

the front frame assembly into the front fender's

plastic tubes. Tighten the screws only until

snug (Fig. 7d).

DO NOT OVER TIGHTEN

Fig. 1

Fig. 2b

Loosen

Fig. 2a

Fig. 3a

Fig. 3b

Lever

Slot

Retainer Plate

Fork Plate

Ring

Fig. 3c
