MAX2657/MAX2658
GPS/GNSS Low-Noise Amplifiers
_______________________________________________________________________________________
5
SUPPLY VOLTAGE (V)
3.0
2.8
2.6
2.4
2.2
2.0
1.8
1.6
3.2
MAX2657 toc09

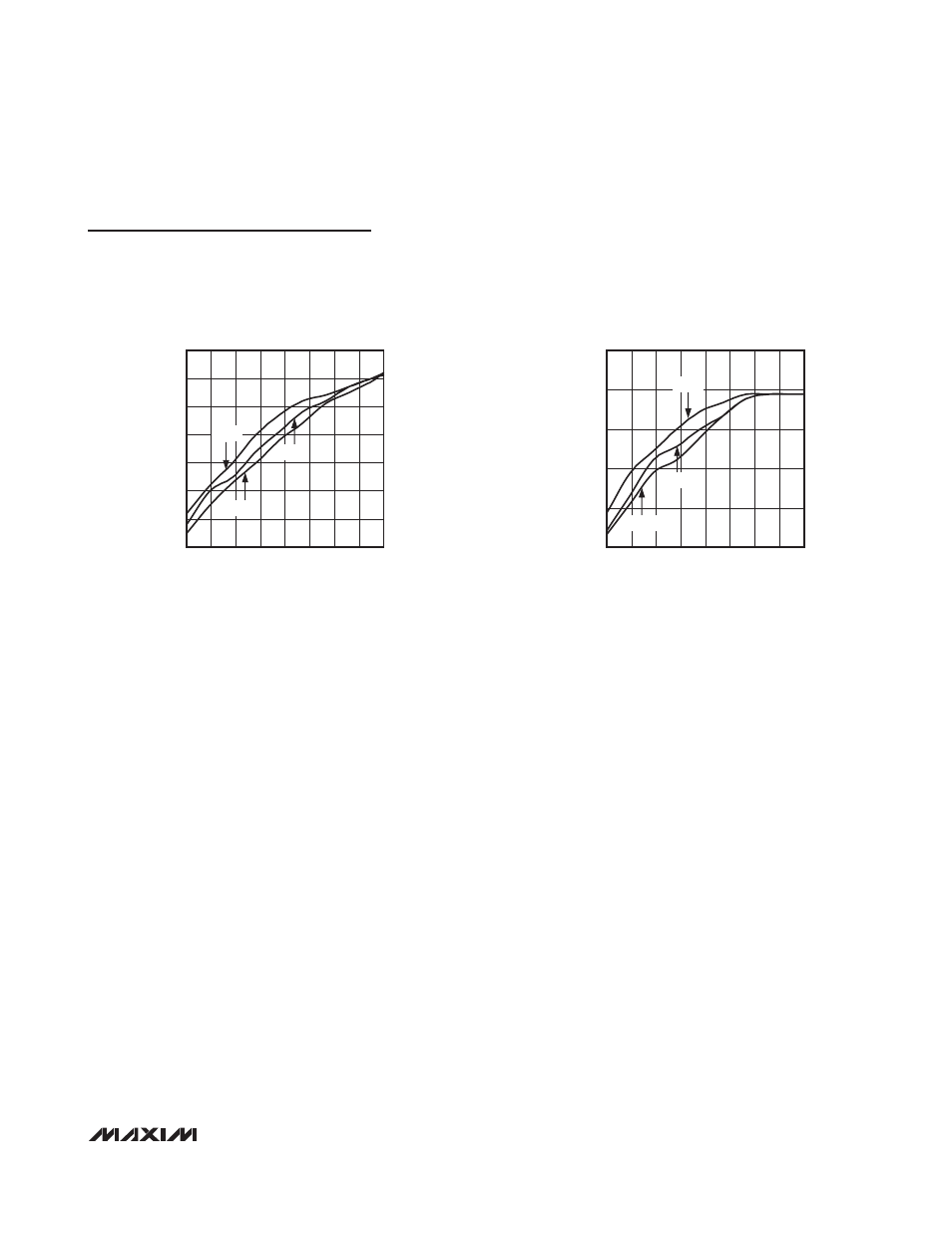

MAX2657 INPUT P1dB COMPRESSION
vs. SUPPLY VOLTAGE AND TEMPERATURE
INPUT P1dB (dBm)
-17
-16
-15
-14
-13
-12
-11
-18
-40˚C
+85˚C
+25˚C
MAX2658 INPUT P1dB COMPRESSION vs.
SUPPLY VOLTAGE AND TEMPERATURE
MAX2657 toc10
SUPPLY VOLTAGE (V)
INPUT P1dB (dBm)
3.0
2.8
2.6
2.4
2.2
2.0
1.8
-13
-12
-11
-10
-9
-14
1.6
3.2
-40˚C
+85˚C
+25˚C
Typical Operating Characteristics (continued)
(MAX2657/MAX2658 EV kit. Typical values are at V
CC
= 2.85V, T
A
= +25°C, and f
RFIN
= 1575.42MHz, unless otherwise noted.)
