General features

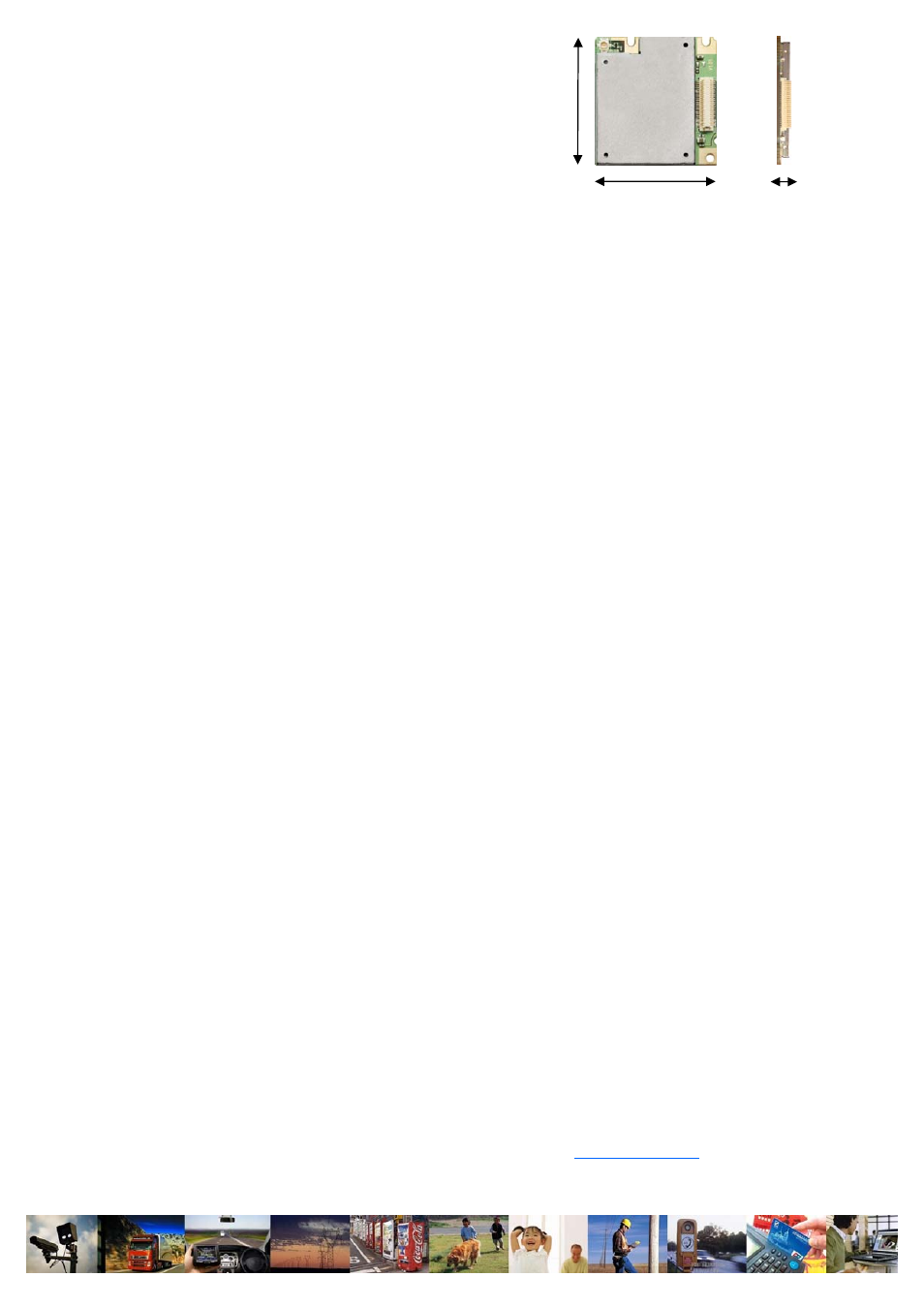

M20
Quad Band GSM/GPRS Module
35mm
32.5mm 3.1mm
Power supply
External SIM 3V/1.8V
Analog audio interfaces Two channels
PCM Interface ( optional)
Serial port and debug port
Antenna connector and
solder pad
Charge interface
Hirose 50-pin B2B connector
Interfaces
