Page 8
AMS0805WAH
MOTION SENSOR
8
Typical Connection ( IIC default )
IIC Serial Peripheral Interface
IIC is suited for typical micro-controller. It is designed to easily connect any µcom to IIC
compliant slave. The 2 required lines on the slave side are the clock (SCL) signal and the data
(SDA) signal.

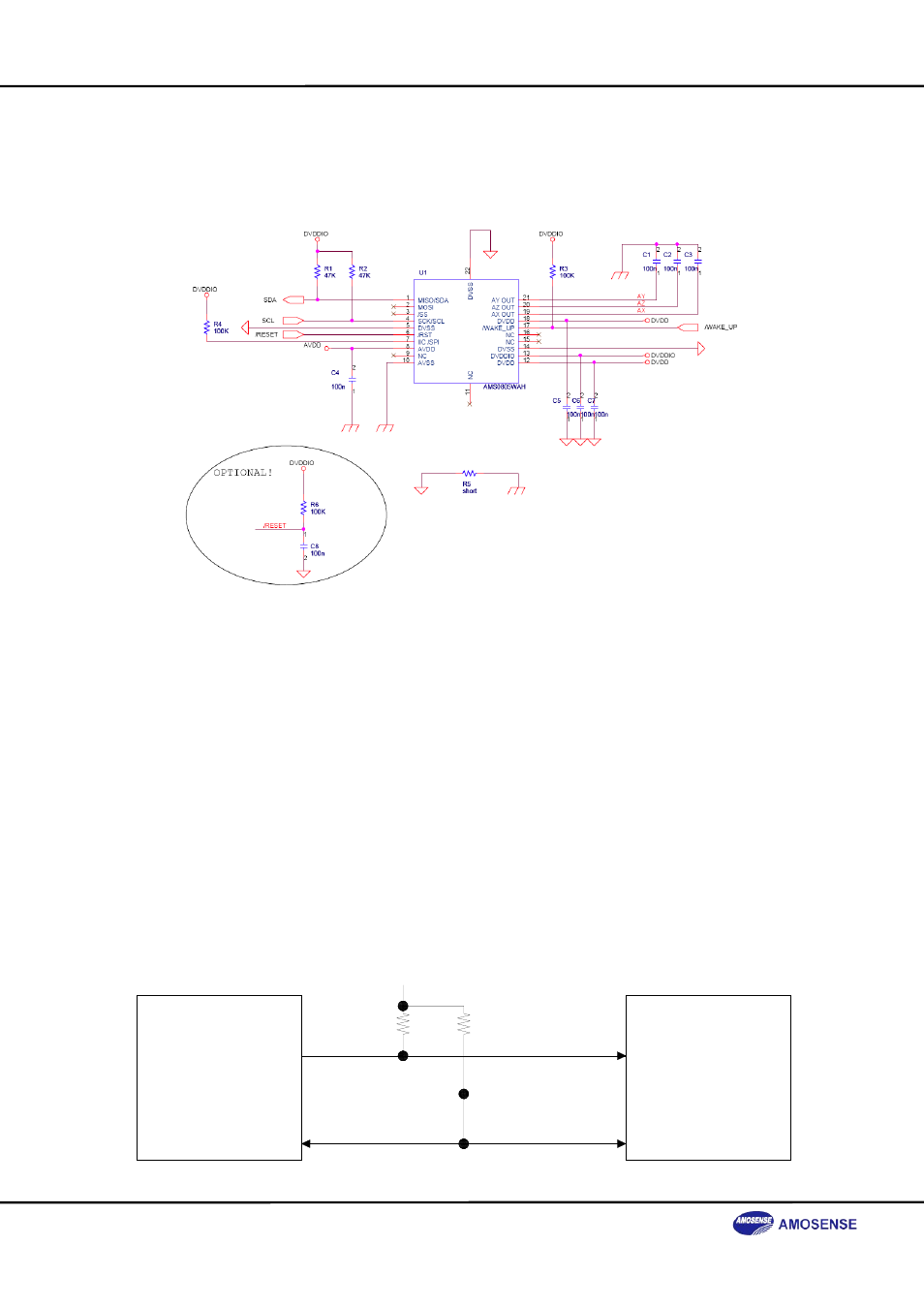

Typical Operating Circuit
●
Typical Connection
Master Controller
(MCU)
IIC
Serial
I/F
SCL
SDA
SCL
SDA
Slave Device
VDD
