AMS0805WAH
MOTION SENSOR
24
0x50 S A 0xAA A 0x55 A P
From slave to master
From master to slave A : acknowledge(SDA LOW)
Ā : not acknowledge(SDA HIGH)
S : start condition
P : stop condition
... S
Interval time
More than 50us
Interval time
More than 50us

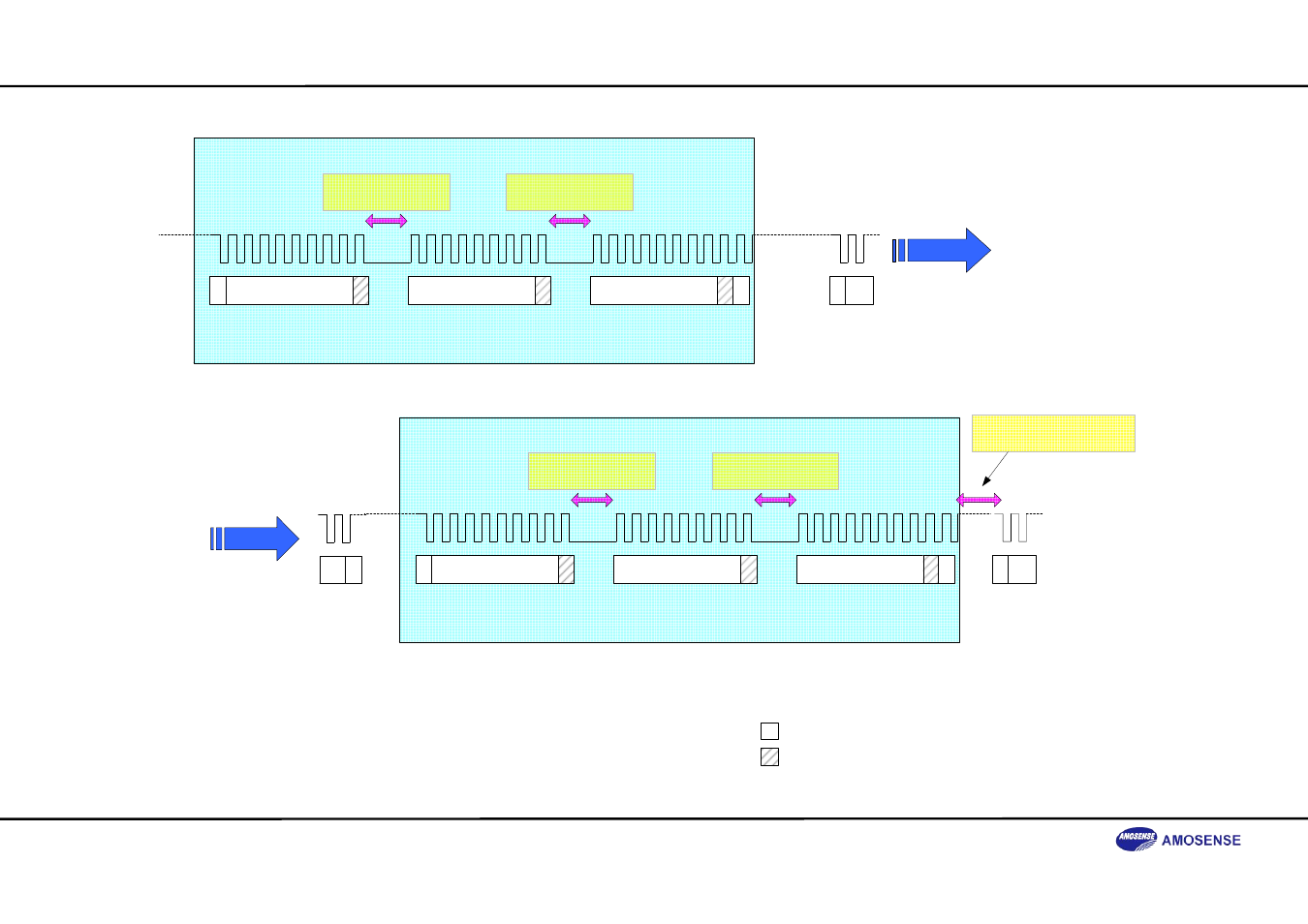

START the ACC offset CAL mode
0x50 S A 0xAA A 0x55 A P ... S
Interval time
More than 50us
Interval time
More than 50us
Go back to Normal mode
within 50ms
... P
Save offset values & Exit the ACC offset CAL mode
Completely & slowly
Rotates AMS0805WAH
on a table.
ACC offset CAL mode
IIC communication protocol
