Page 10
DS1305
10 of 20

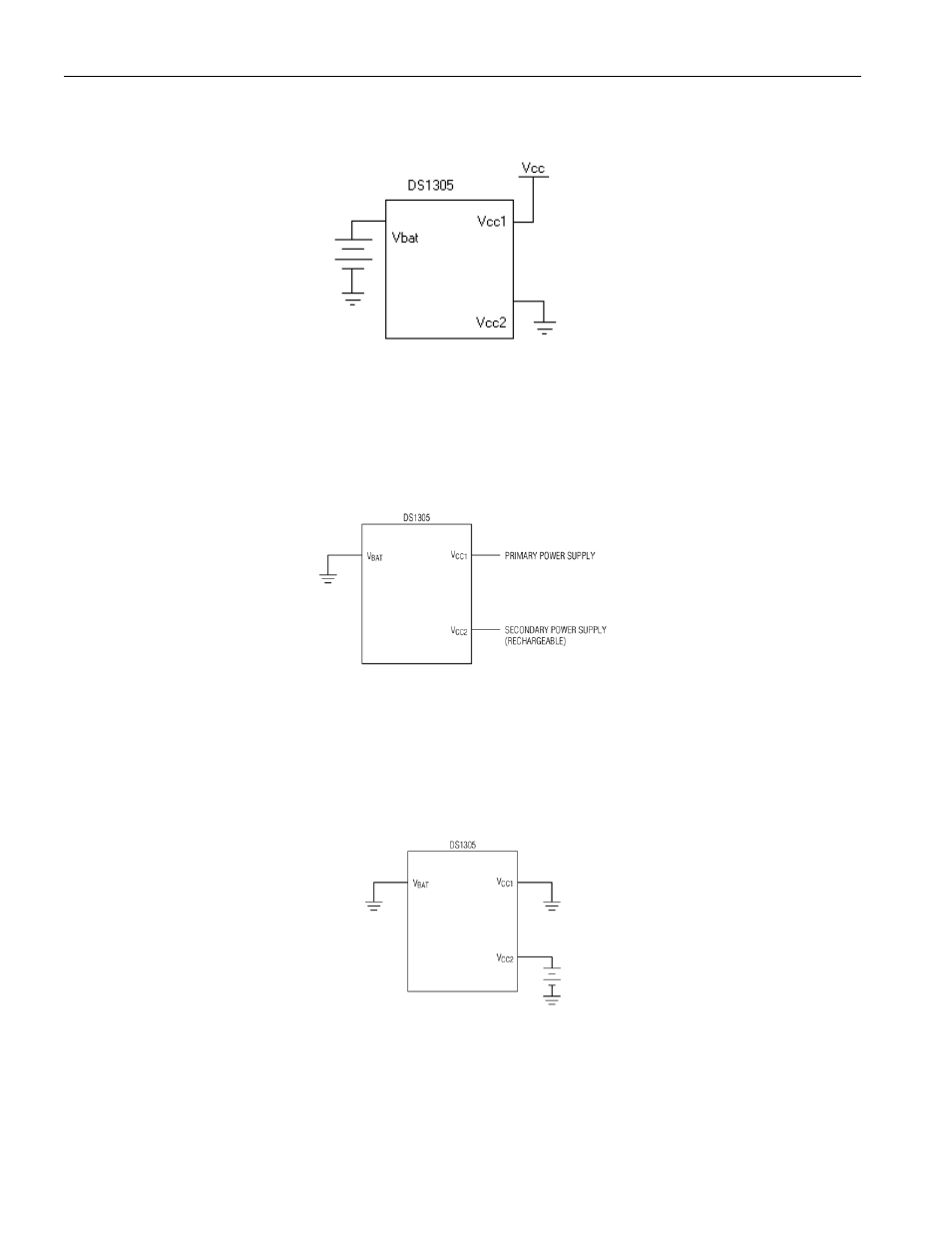

Figure 4. POWER SUPPLY CONFIGURATIONS
Configuration 1: Backup Supply is a Nonrechargeable Lithium Battery
Configuration 2: Backup Supply is a Rechargeable Battery or Super Capacitor
Configuration 3: Battery Operate Mode
V
CCTP
Note: Device does not provide automatic write protection.
Note: Device is write-protected if V
CC
< V
CCTP
.
