Group Options
User selectable options that affect each individual group are called Group Options. They are:
•
Edge or Level trigger
•
Unholdable or Holdable trigger
•
Re-triggerable or non-retriggerable
•
Stop pulse disable or enable

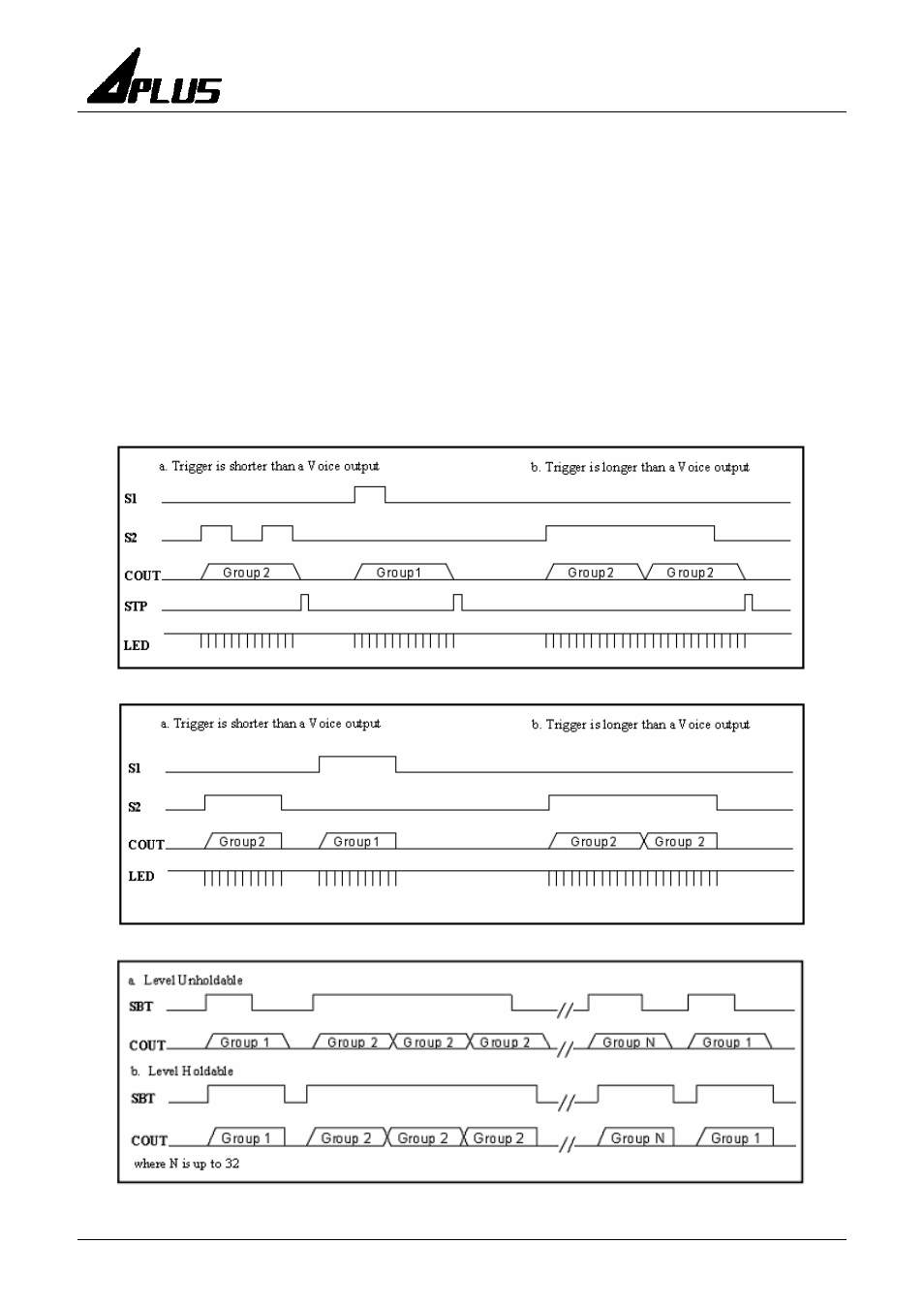

Fig. 4 to Fig. 9 show the voice playback with different combination of triggering mode and the
relationship between outputs and voice playback.
Fig. 4 Level, Unholdable, Non-retriggerable
Fig. 5 Level Holdable
Fig. 6 SBT sequential trigger with Level Holdable and Unholdable
