TYPICAL APPLICATIONS


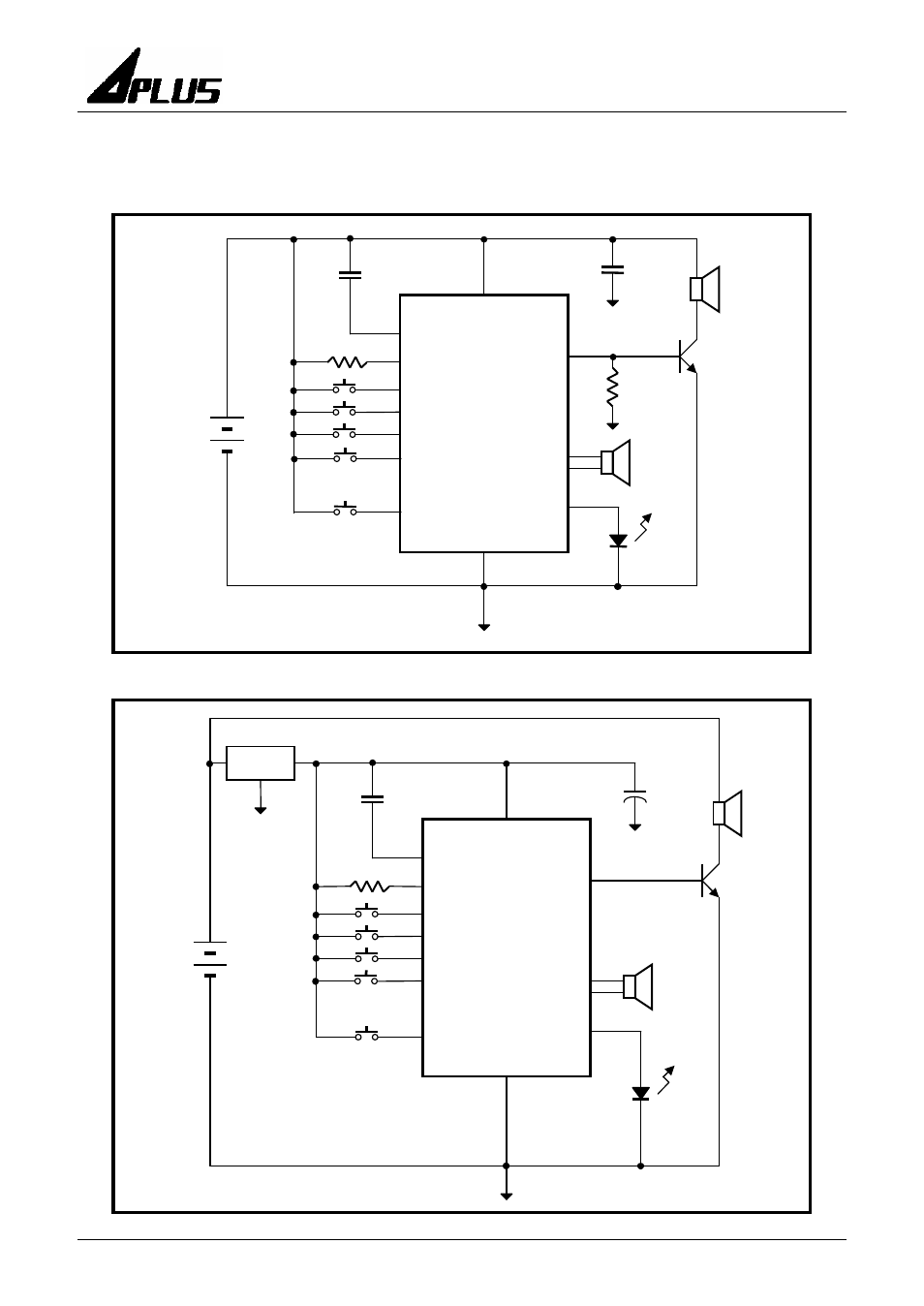

Key Trigger Mode

Fig. 12 Using 3.3V Battery

Fig. 13 Using 4.5V Battery

VDD,VPP

VSS

4.5V

RST

S1

S2

S3

S4

SBT

OSC

0.1uF

10uF

R

OSC

8050D

COUT

8Ω
Speaker

8 / 16Ω
Speaker

VOUT1

VOUT2

OUT1

HT7335

Output driving of HT LDO:
HT7136 (30mA, 3.6V)
HT7133 (30mA, 3.3V)
HT7536 (100mA, 3.6V)
HT7335 (250mA, 3.5V)

VDD,VPP

VSS

3.3V

RST

S1

S2

S3

S4

SBT

OSC

0.1uF

0.1uF

R

OSC

8050D

COUT

390Ω

8Ω
Speaker

8 / 16Ω
Speaker

VOUT1

VOUT2

OUT1
