Integrated Circuits Inc.

aP89021/010

Ver 2.0 Dec 6, 2006

12

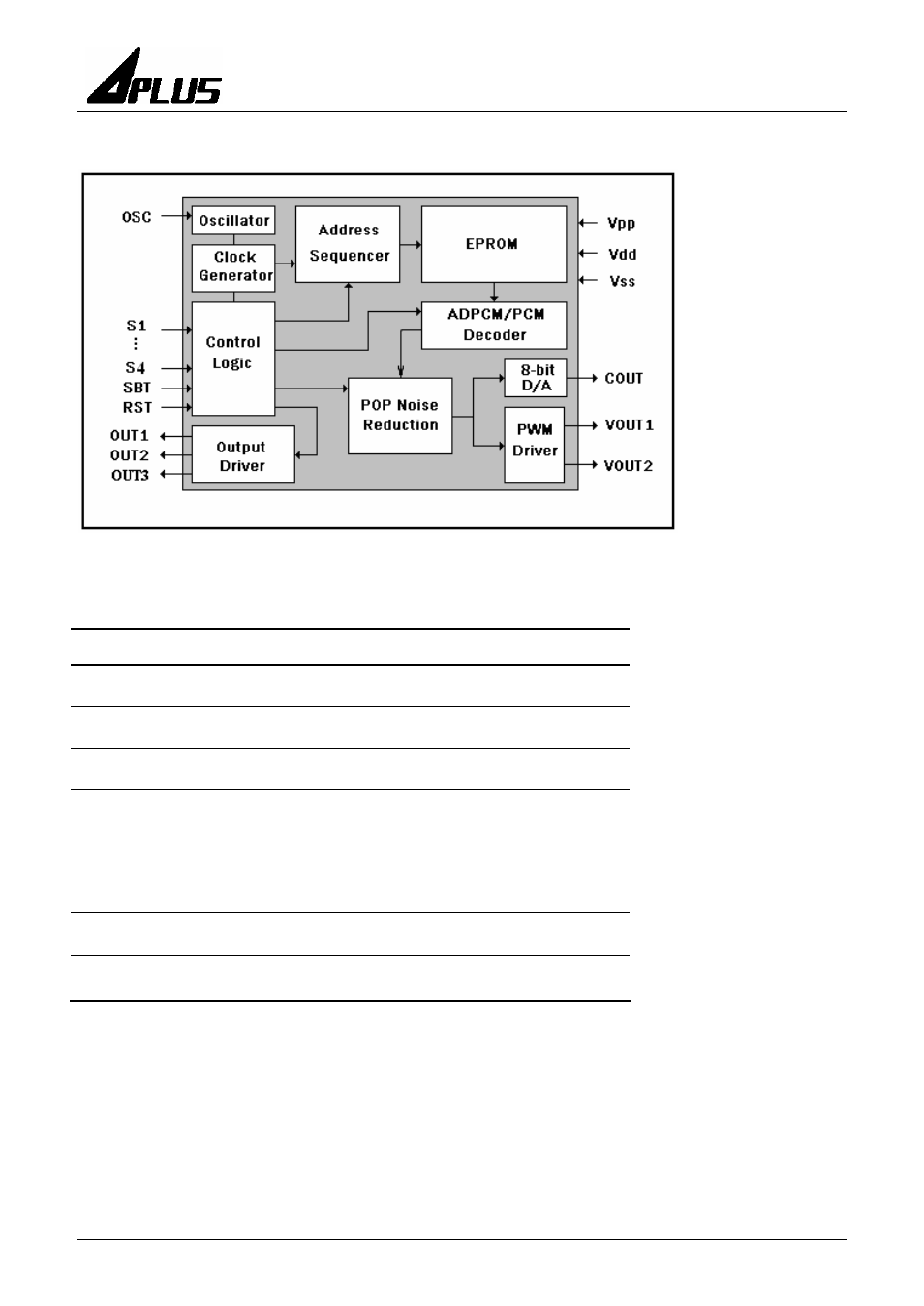

BLOCK DIAGRAM

ABSOLUTE MAXIMUM RATINGS

Symbol

Rating

Unit

VDD - VSS

-0.5 ~ +4.5

V

VIN

VSS - 0.3

V

VOUT

VSS

V

T (Operating):

DIP

SOP

-10 ~ +70

-40 ~ +85

℃

T (Junction)

-40 ~ +125

℃

T (Storage)

-55 ~ +125

℃
