MAX16072/MAX16073/MAX16074
µP Supervisory Circuits in
4-Bump (1mm x 1mm) Chip-Scale Package
General Description
The MAX16072/MAX16073/MAX16074 ultra-small, ultra-
low-power, microprocessor (µP) supervisory circuits
feature a precision band-gap reference, comparator,
and internally trimmed resistors that set the threshold
voltage. Designed to monitor the system supply voltage
and assert an output during power-up, power-down,
and brownout conditions, these devices provide excel-
lent circuit reliability and low cost by eliminating external
components and adjustments when monitoring nominal
system voltage from 1.8V to 3.6V.
The MAX16072 has a push-pull, active-low reset output,
the MAX16073 has a push-pull, active-high reset output,
and the MAX16074 has an open-drain active-low reset
output. The devices are designed to ignore fast tran-
sients on V
CC . The devices also include a manual reset
input (MR).
The MAX16072/MAX16073/MAX16074 are available in a
1mm x 1mm, space-saving, 4-bump, chip-scale pack-
age (UCSP
TM ).
Applications
Portable/Battery-Powered Equipment
Cell Phones
PDAs
MP3 Players
Digital Cameras
Features
S
Ultra-Low, 0.7µA Supply Current
S Ultra-Small (1mm x 1mm), 4-Bump UCSP
S 20µs, 8ms, 34ms, and 140ms Reset Timeout
Options Available
S
Factory-Trimmed Reset Thresholds Available
from 1.58V to 3.08V in Approximately 100mV
Increments
S Q 2.5% Threshold Accuracy Over Temperature
S Manual Reset Input
S Guaranteed Reset Valid to V CC = 1.0V
S Immune to Short V CC Transient
19-5112; Rev 0; 1/10
+Denotes a lead(Pb)-free/RoHS-compliant package.
Ordering Information

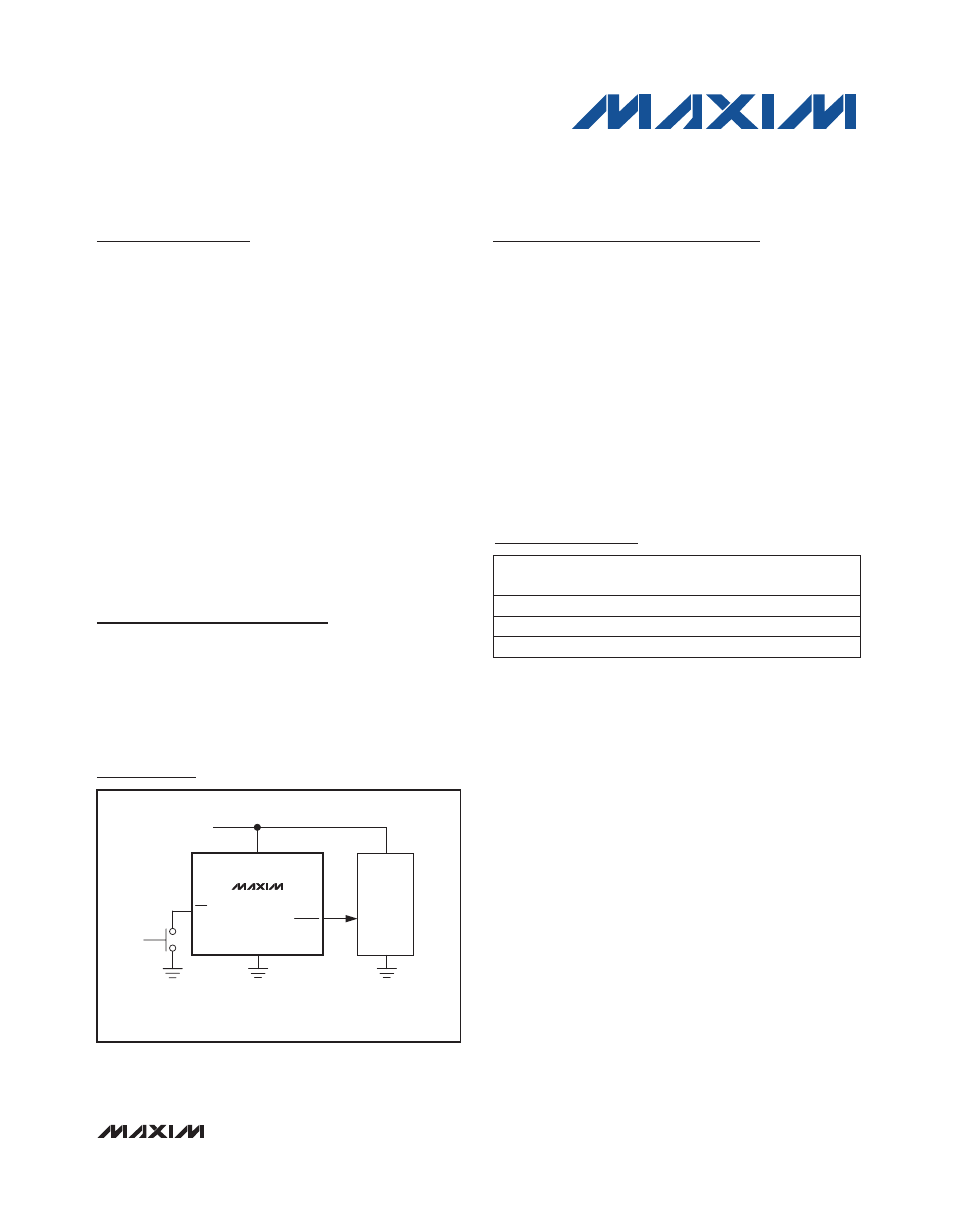

Typical Operating Circuit
Note: All devices are specified over the -40NC to +85NC operat-
ing temperature range.
Insert the desired suffix numbers (from Table 1) into the blanks
“RS_ _D” to indicate the reset trip threshold. Insert the desired
suffix number (from Table 2) into the blank ”D_+” to indicate the
reset timeout. Minimum order quantity may apply.
UCSP is a trademark of Maxim Integrated Products, Inc.
RESET
INPUT
( ) FOR THE MAX16073 ONLY
µP
(RESET)/
RESET
V CC
V CC
GND
MR
MAX16072
MAX16073
MAX16074
VCC
GND
PART RESET OUTPUT TYPE
PIN-
PACKAGE
MAX16072RS_ _D_+ Push-Pull, Active-Low 4 UCSP
MAX16073RS_ _D_+ Push-Pull, Active-High 4 UCSP
MAX16074RS_ _D_+ Open-Drain, Active-Low 4 UCSP
