GEOMETRICAL CHARACTERISTICS

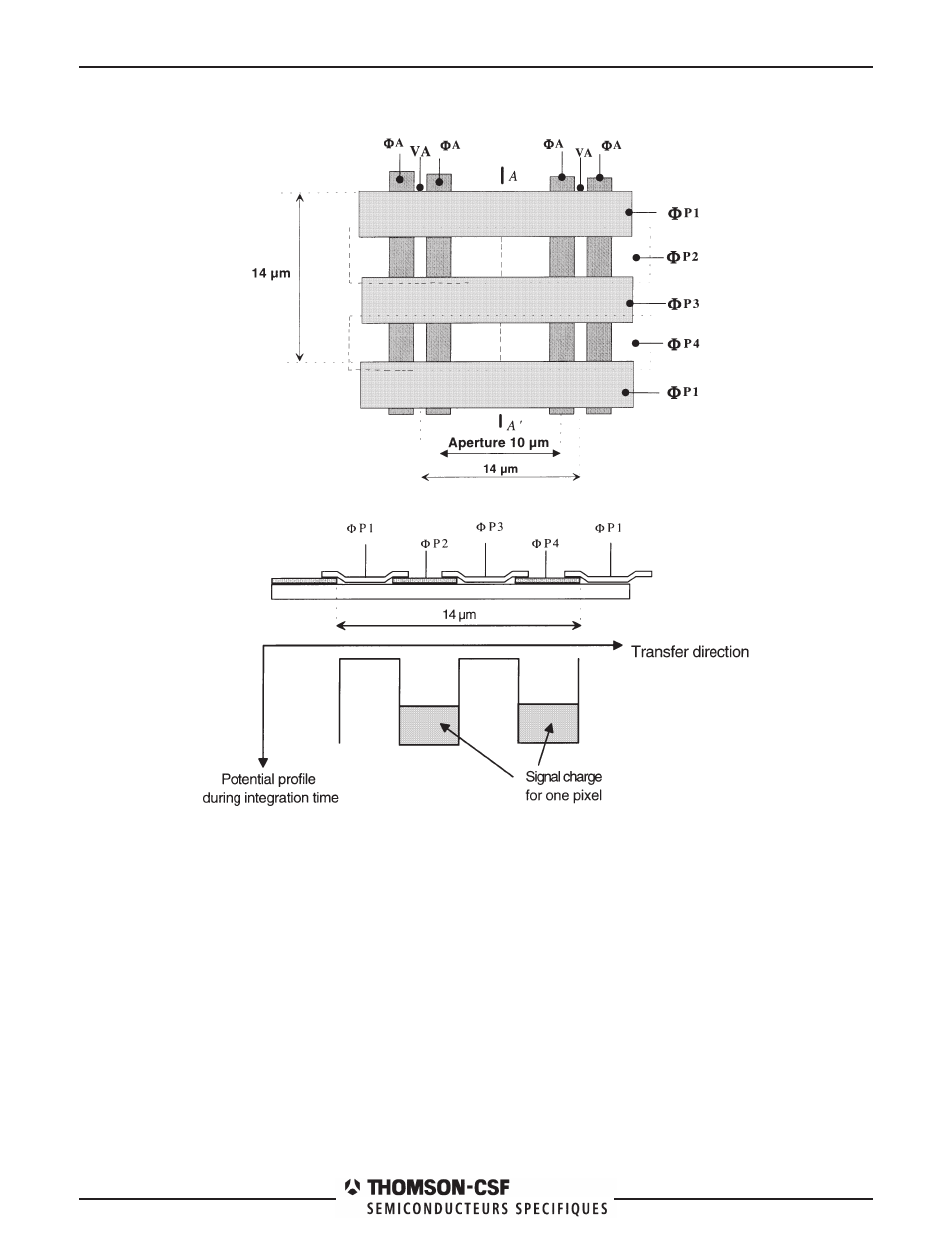

Figure 2b : Pixel layout
Figure 2c : Cross-section AA’
ABSOLUTE MAXIMUM RATINGS
Storage temperature ............................................................................................................................................-55°C to +150°C
Operating temperature...........................................................................................................................................-40°C to +85°C
Thermal cycling ...............................................................................................................................................................15°C / mn
Maximum applied voltages :
Y9, AA9, Y10, AA10, Y5, AA5, Y6, AA6, Y4, B2, A2, A3, B3, B1, A1, B4, A6 .................................................-0.3 to 15 V
A9, A8, B10, B8, B7, A7, AA7 ...........................................................................................................................-0.3 V to 15.5 V
Y7 ..............................................................................................................................................................................-0.3 V to 12 V
A4, A5, B5, B6, Y8, AA4, AA8 ..................................................................................................................................0V (ground)
