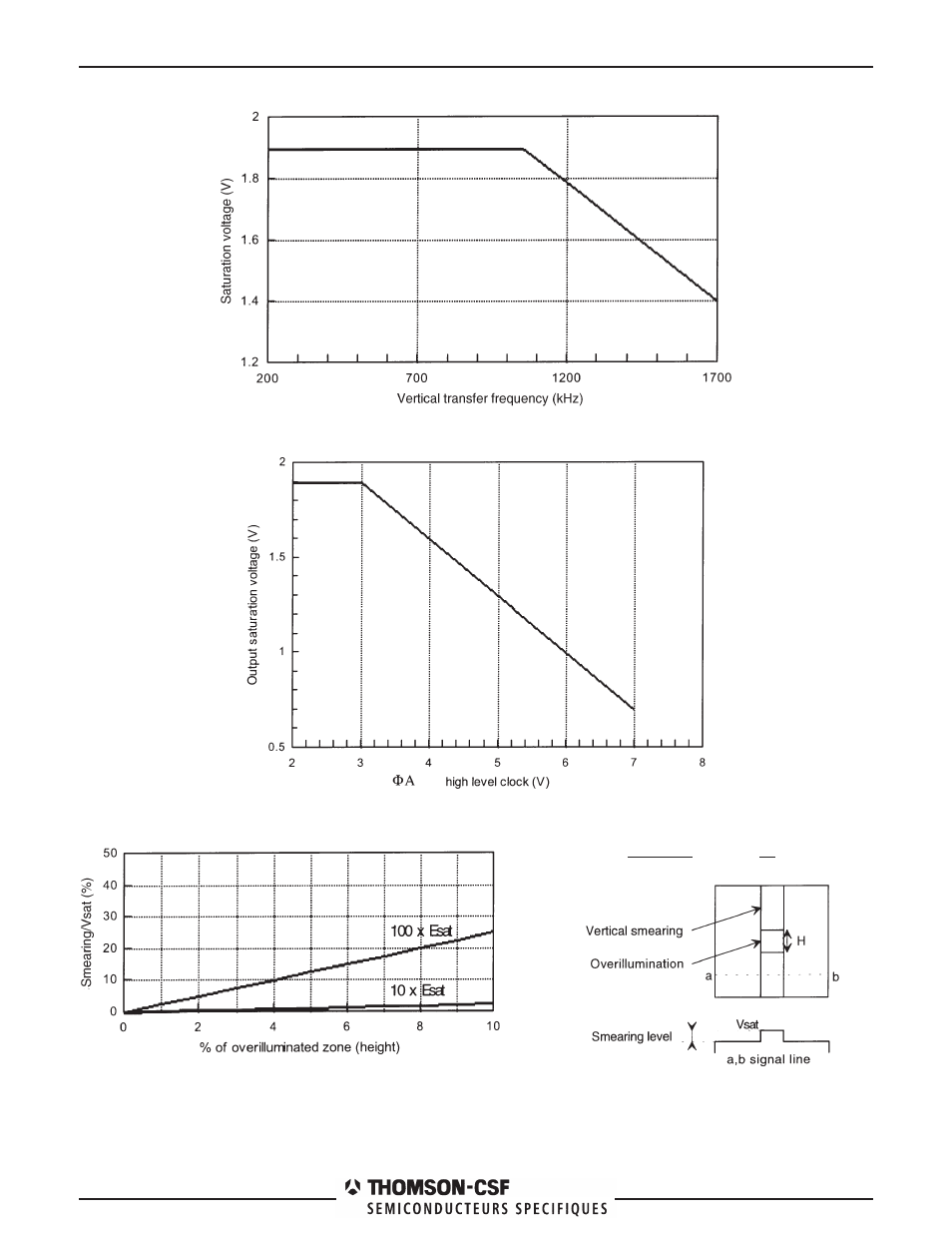

Figure 12 : Saturation level by full well with antiblooming out ( F
A high = 0 volt) vs the vertical transfer frequency.
Figure 13 : Saturation level limitation by the antiblooming effect on the pixel (Typical operating conditions)
Figure 14 : Smearing effect
12/16
TH7888A
V
V
N
T
T
H SMEARING
SAT
ESAT
V
I
= Ч Ч
NESAT = number of times ESAT
with ESAT = VSAT / Responsivity (typical illumination
conditions)
TI = integration time
TV = image to memory transfer time
