Typical Performance Characteristics
(Continued) The curves were obtained under the following condi-
tions R
S e 50X T
A e 25 C V
A
a e V
D
a e 5V V
REF e 4 096V f
CLK e 12 MHz and the sampling rate f
S e 215 kHz unless
otherwise stated

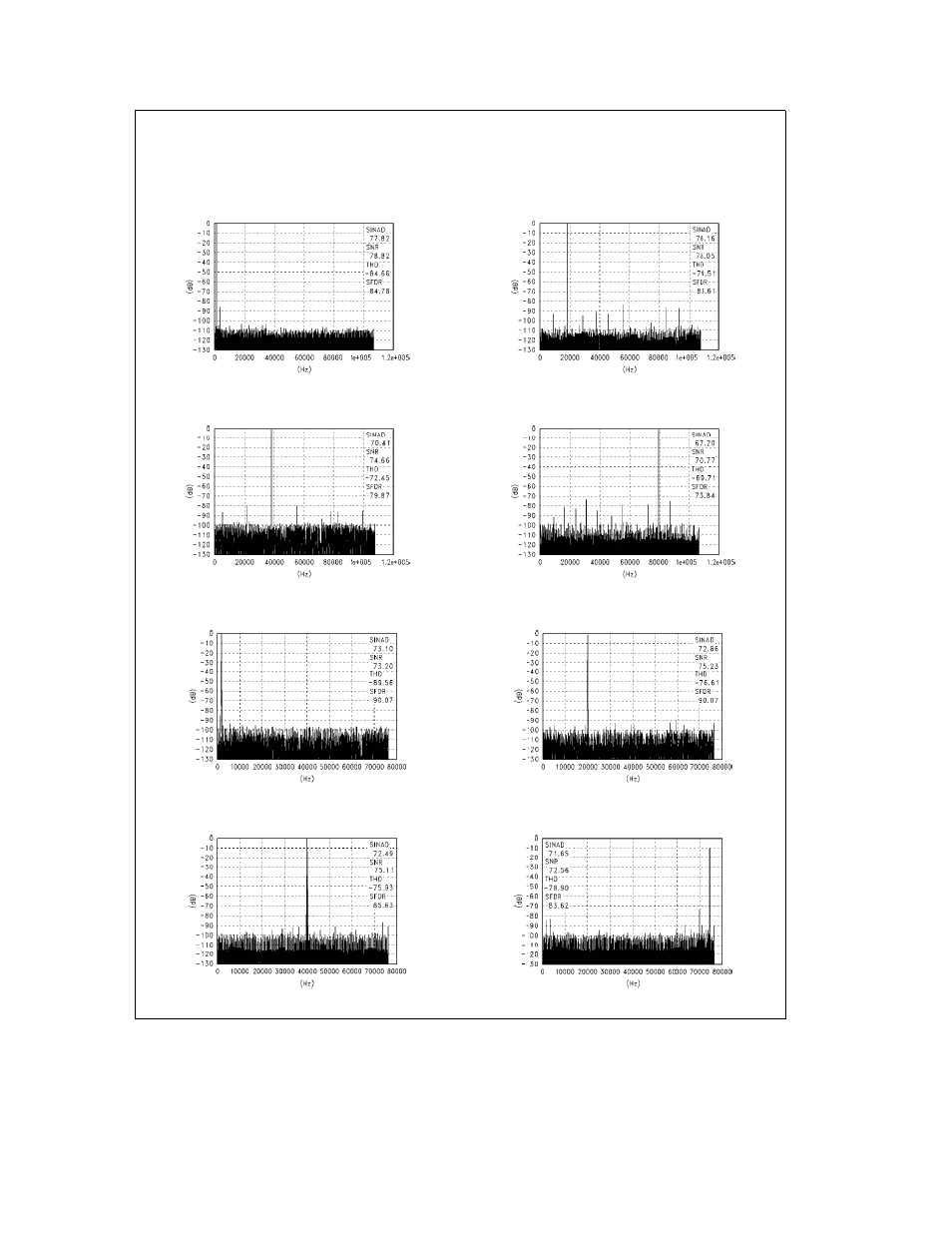

Sine Wave Input
Full Scale Differential 1 099 Hz
TL H 12441 – 33
Sine Wave Input
Full Scale Differential 18 677 Hz
TL H 12441 – 34
Sine Wave Input
Full Scale Differential 38 452 Hz
TL H 12441 – 35
Sine Wave Input
Full Scale Differential 79 468 Hz
TL H 12441 – 36
Sine Wave Input f S e 153 6 kHz
Half Scale Differential 1 kHz
TL H 12441 – 37
Sine Wave Input f S e 153 6 kHz
Half Scale Differential 20 kHz
TL H 12441 – 38
Sine Wave Input f S e 153 6 kHz
Half Scale Differential 40 kHz
TL H 12441 – 39
Sine Wave Input f S e 153 6 kHz
Half Scale Differential 75 kHz
TL H 12441 – 40
