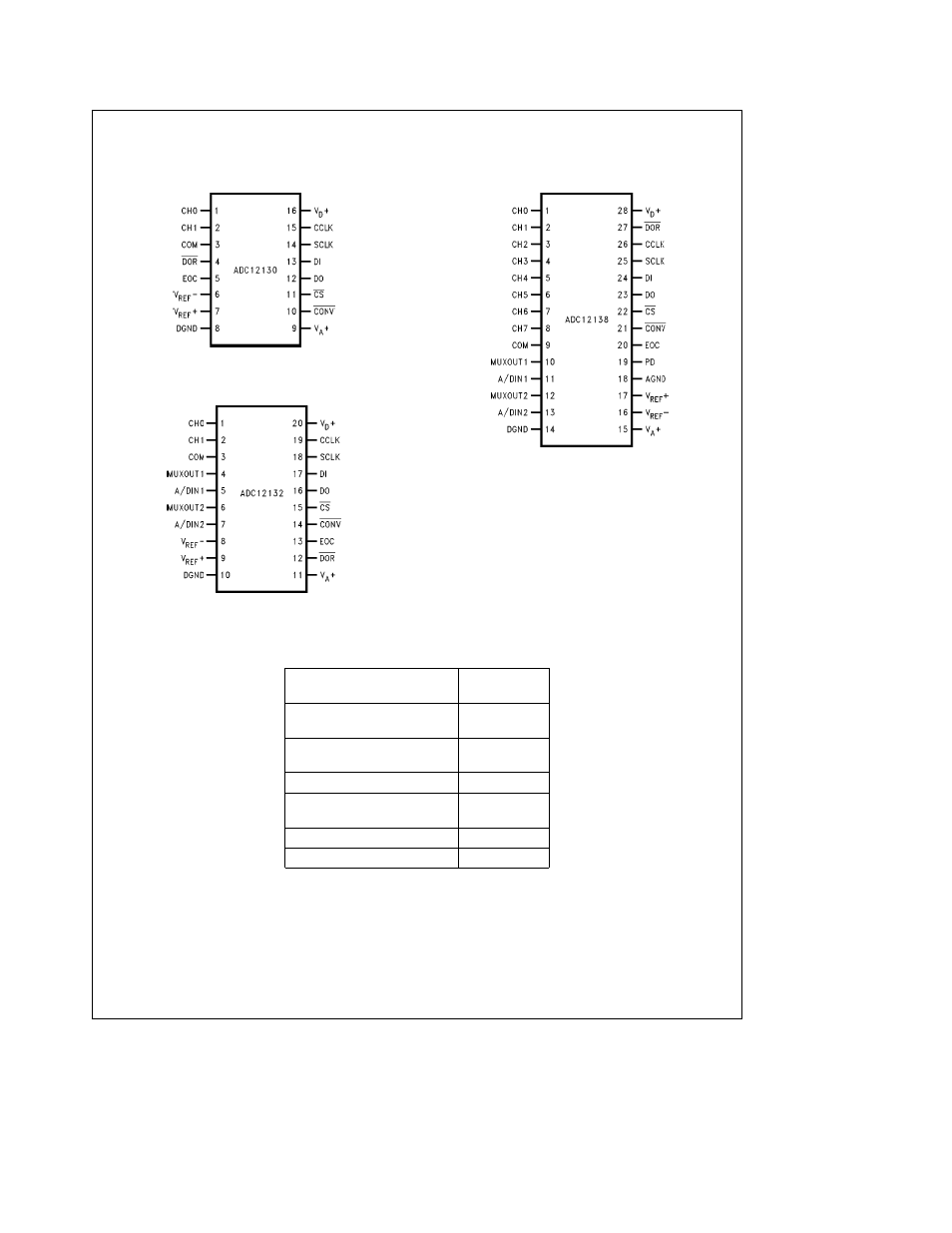

Connection Diagrams
16-Pin Dual-In-Line and
Wide Body SO Packages
TL H 12079 – 2
Top View
20-Pin SSOP Package
TL H 12079 – 47
Top View
28-Pin Dual-In-Line SSOP and
Wide Body SO Packages
TL H 12079 – 3
Top View
Ordering Information
Industrial Temperature Range NS Package
b 40 C s T
A s a 85 C Number
ADC12130CIN N16E
Dual-In-Line
ADC12130CIWM M16B
Wide Body SO
ADC12132CIMSA MSA20 SSOP
ADC12138CIN N28B
Dual-In-Line
ADC12138CIWM M28B
ADC12138CIMSA MSA28 SSOP
