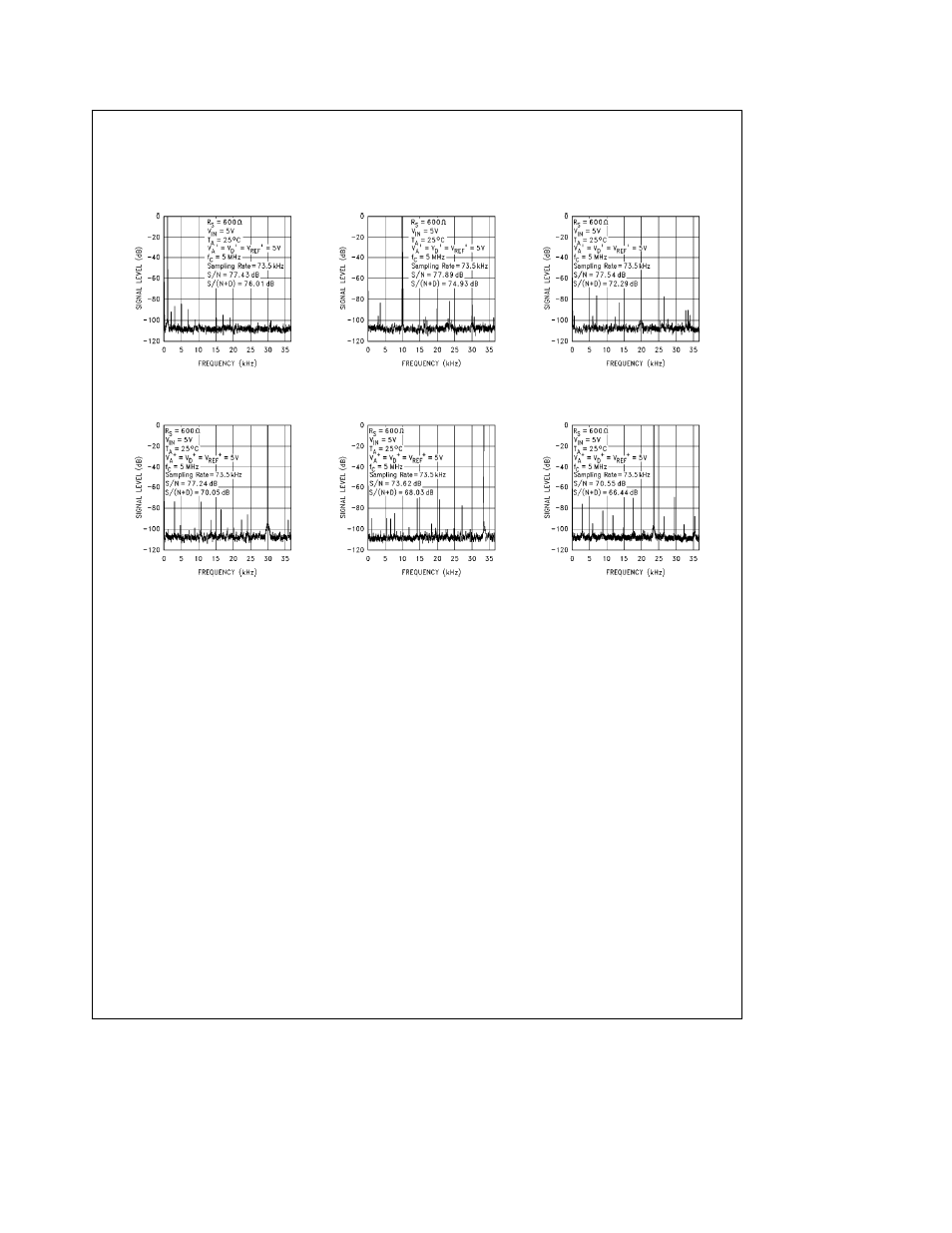

Typical Dynamic Performance Characteristics
The following curves apply for 12-bit a sign mode after auto-calibration unless otherwise specified
with 1 kHz Sine Wave Input
Bipolar Spectral Response
with 10 kHz Sine Wave Input
Bipolar Spectral Response
with 20 kHz Sine Wave Input
Bipolar Spectral Response
with 30 kHz Sine Wave Input
Bipolar Spectral Response
with 40 kHz Sine Wave Input
Bipolar Spectral Response
with 50 kHz Sine Wave Input
Bipolar Spectral Response
TL H 12079 – 11
