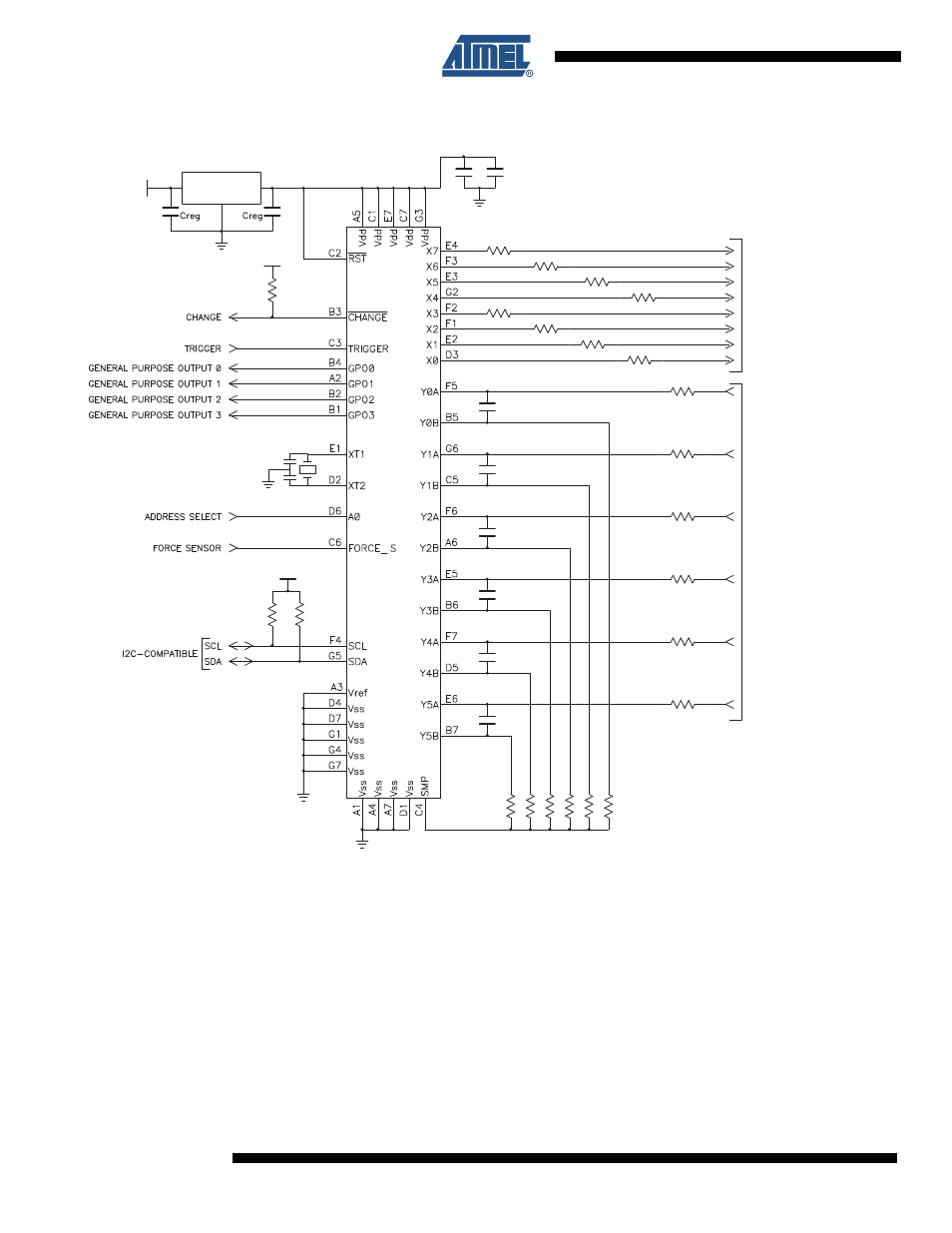

Figure 1-2. Typical Circuit – BGA
Suggested regulator manufacturers:
• Torex (XC6215 series)
• Seiko (S817 series)
• BCDSemi (AP2121 series)
Cs4
Cs1
Rs4
Cs5
Cs3
Cs2
Cs0
VDD
Vunreg
Rp
VREG
Rp
16MHz
Rs5
Rx3
Rs2 Rs1 Rs0
Ry3
Ry0
Rp
VDD
XT1
Rx7
Rx5
Rx1
Ry5
Ry2
MA
T
R
IX
X
DRIVE
Ry4
Ry1
M
A
T
R
IXYS
C
A
N
IN
Rs3
Rx0
Rx6
Rx2
Rx4
QT5480
Follow regulator manufacturer's recommended values
for input and output bypass capacitors (Creg).
NOTES:
1) It is important to place all Cs, Rs, Rx and Ry
components physically near to the chip.
2) Leave YnA, YnB unconnected if not used
Add two 100nF capacitors: one close to balls A5, C1 and G3,
and another close to balls E7 and C7.
