MAX9030/MAX9031/MAX9032/MAX9034
Low-Cost, Ultra-Small, Single/Dual/Quad
Single-Supply Comparators
_______________________________________________________________________________________ 5
TIME (200ns/div)
PROPAGATION DELAY
MAX9030/1/2/4 toc13
OUT
2V/div
IN+ - IN-
200mV/div
TIME (2 µs/div)
OUTPUT SWITCHING CURRENT, RISING
MAX9030/1/2/4 toc14
SWITCHING
CURRENT
200 µA/div
IN+ - IN-
5V/div
OUT
5V/div
TIME (1 µs/div)
OUTPUT SWITCHING CURRENT, FALLING
MAX9030/1/2/4 toc15
SWITCHING
CURRENT
50 µA/div
IN+ - IN-
5V/div
OUT
5V/div
TIME (100ns/div)
SINUSOID 1MHz RESPONSE AT 1.25MHz
V OD = 100mV
MAX9030/1/2/4 toc16
IN+ - IN-
100mV/div
OUT
2V/div
TIME (100ns/div)
SINUSOID 1MHz RESPONSE AT 1.25MHz
V OD = 10mV
MAX9030/1/2/4 toc17
IN+ - IN-
10mV/div
OUT
2V/div
TIME (200ns/div)
POWER-UP DELAY
MAX9030/1/2/4 toc18
V DD
OUT
2.5V/div

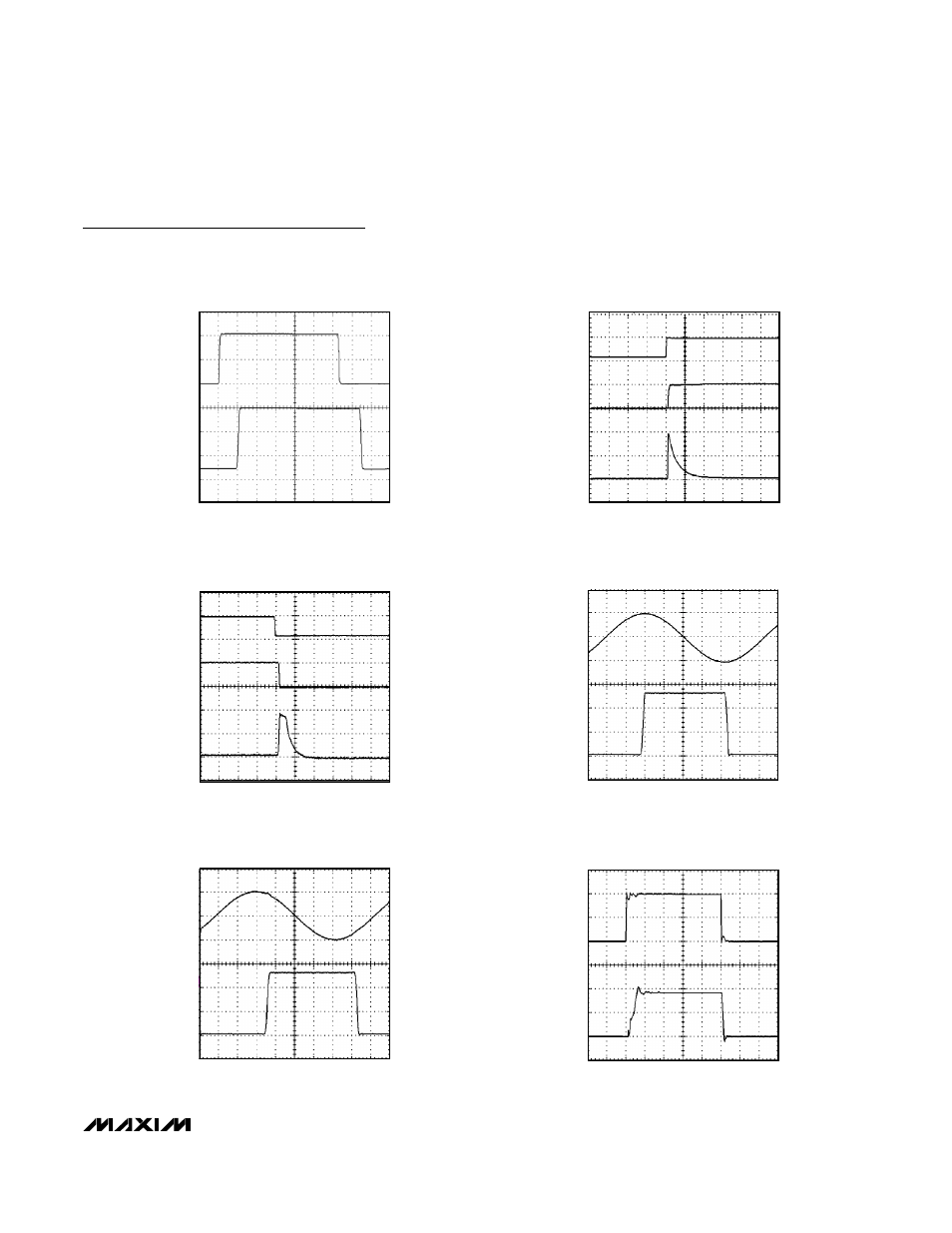

Typical Operating Characteristics (continued)
(V DD = +5V, V SS = 0, V CM = 0, R L = 10k Ω, C
L = 15pF, VOD = 100mV, T A = +25°C, unless otherwise noted.)
