MAX5360/MAX5361/MAX5362
Low-Cost, Low-Power 6-Bit DACs with
2-Wire Serial Interface in SOT23 Package
_______________________________________________________________________________________ 7
Pin Description
NAME FUNCTION
1 OUT DAC Voltage Output
2 GND Ground
PIN
3 V DD Power-Supply Input
4 SDA Serial Data Input
5 SCL Serial Clock Input
10 µs/div
MAX5360
OUTPUT VOLTAGE
EXITING SHUTDOWN
MAX5360/1/2-19
OUT
500mV/div
SDA
3V/div
1 µs/div
MAX5360
OUTPUT VOLTAGE
ENTERING SHUTDOWN
MAX5360/1/2-20
OUT
500mV/div
SDA
3V/div
1 µs/div
MAX5360
OUTPUT SETTLING FROM
1/4 FS TO 3/4 FS
MAX5360/1/2-21
OUT
0.5V/div
SDA
3V/div
1 µs/div
MAX5360
OUTPUT SETTLING FROM
3/4 FS TO 1/4 FS
MAX5360/1/2-22
OUT
0.5V/div
SDA
3V/div
2 µs/div
MAX5360
OUTPUT SETTLING
1/4LSB STEP-UP
MAX5360/1/2-23
OUT
20mV/div
AC-COUPLED
SDA
3V/div
0 x 7F TO 0 x 80
01111111 TO 10000000
MAX5360
OUTPUT SETTLING
1/4LSB STEP-DOWN
MAX5360/1/2-24
OUT
20mV/div
AC-COUPLED
SDA
3V/div
2 µs/div
0 x 80 TO 0 x 7F
10000000 TO 01111111

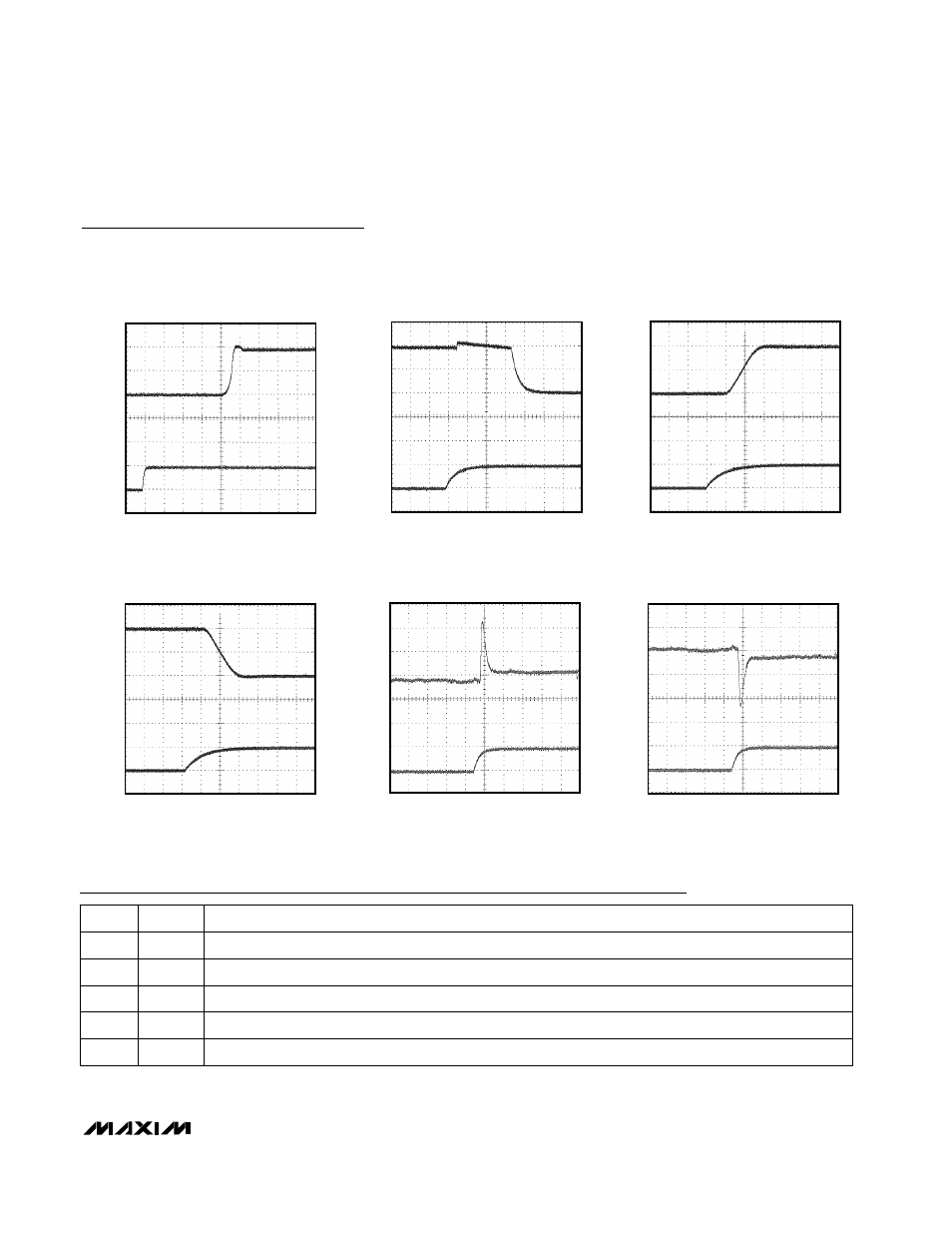

Typical Operating Characteristics (continued)
(V DD = 3V (MAX5360), V DD = 5V (MAX5361/MAX5362), T A = +25°C, unless otherwise noted.)
