System Distribution - with delay
Using the Digital Input
• Digital Input 44.1 or 48kHz must be
present in the Digital Input.
• Press and hold the DIGITAL IN button
on the front panel until digital lock is
achieved.
Note: The signal present on the DIGITAL
INPUT is passed unprocessed to the
DIGITAL THRU connection on the rear
panel for further downstream processing.
This example is similar to the previous
example. However, the idea here is to
distribute the signal with delay settings
corresponding to the positioning of the
speakers.
For each side:
• Source signal can be connected to either
Inputs A or B as only one Input per side is
used. For this example - use Input A on both
controllers.
• Configure Routing section as illustrated in the
configuration overview.
• Set a Delay time per channel matching the
distance between the speakers.
• Set additional processing parameters.

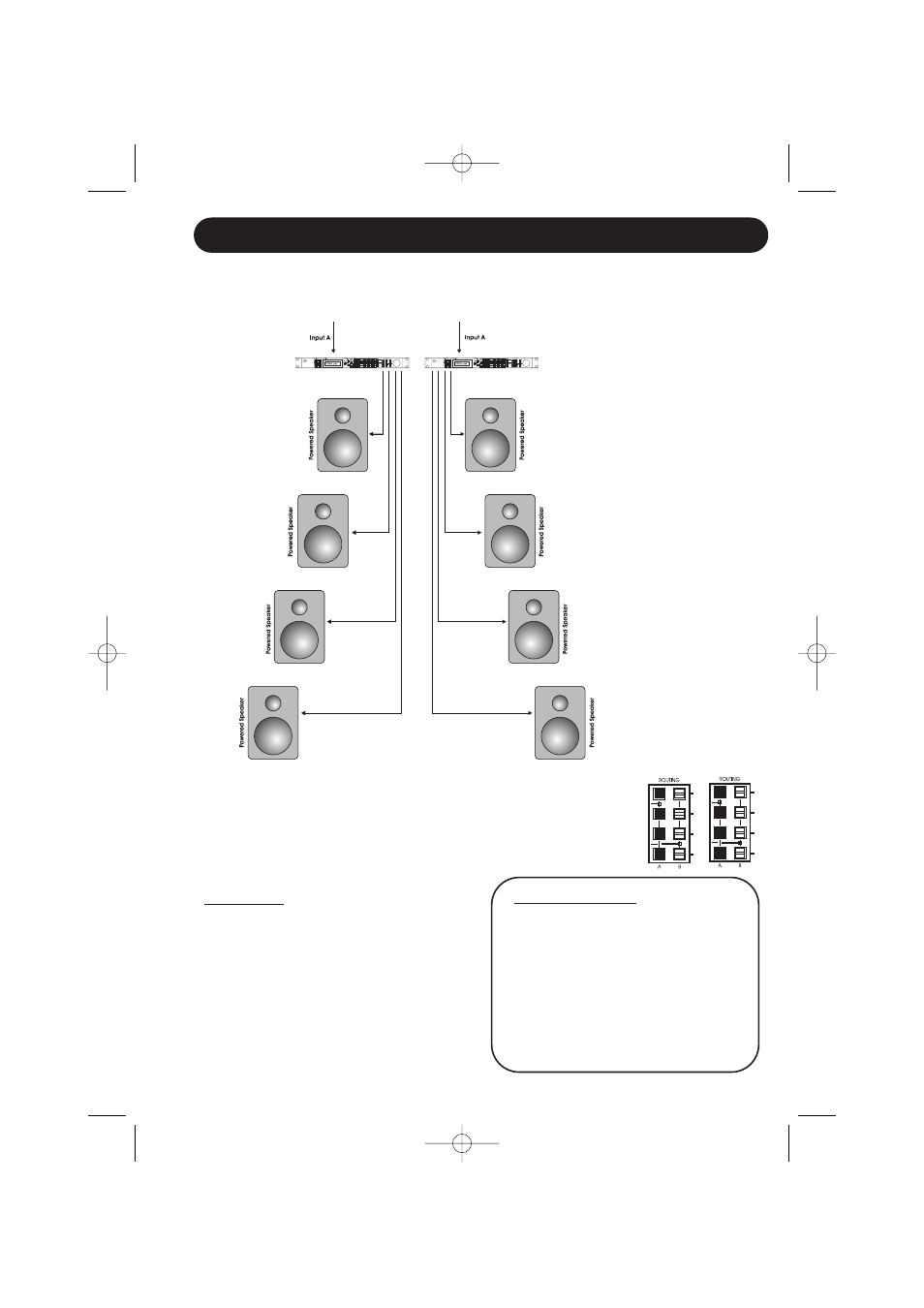

Configuration overview
