TYPICAL SETUPS
Using the Digital Input
• Digital Input 44.1 or 48kHz must be
present in the Digital Input.
• Press and hold the DIGITAL IN button
on the front panel until digital lock is
achieved.
Note: The signal present on the DIGITAL
INPUT is passed unprocessed to the
DIGITAL THRU connection on the rear
panel for further downstream processing.
Configuration overview

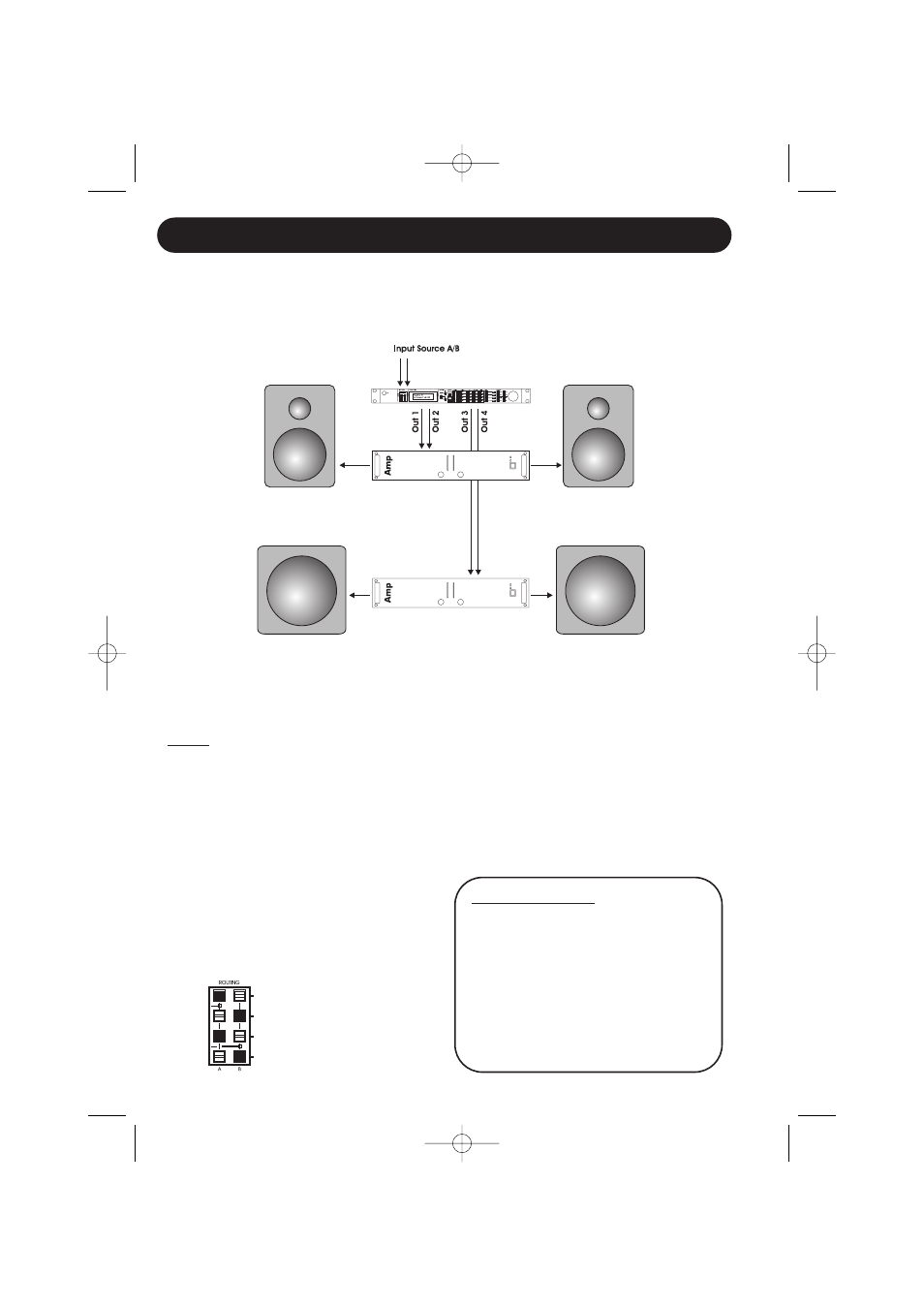

Stereo Setup - with subs
This is a typical stereo setup with a set of
subs.
Analog:
• Input signal is fed on Inputs A/B.
• Configure Routing section as illustrated
below.
• Output channels 1 and 2 feed the front
loudspeakers.
• Output channels 3 and 4 feed the subs.
