TYPICAL SETUPS

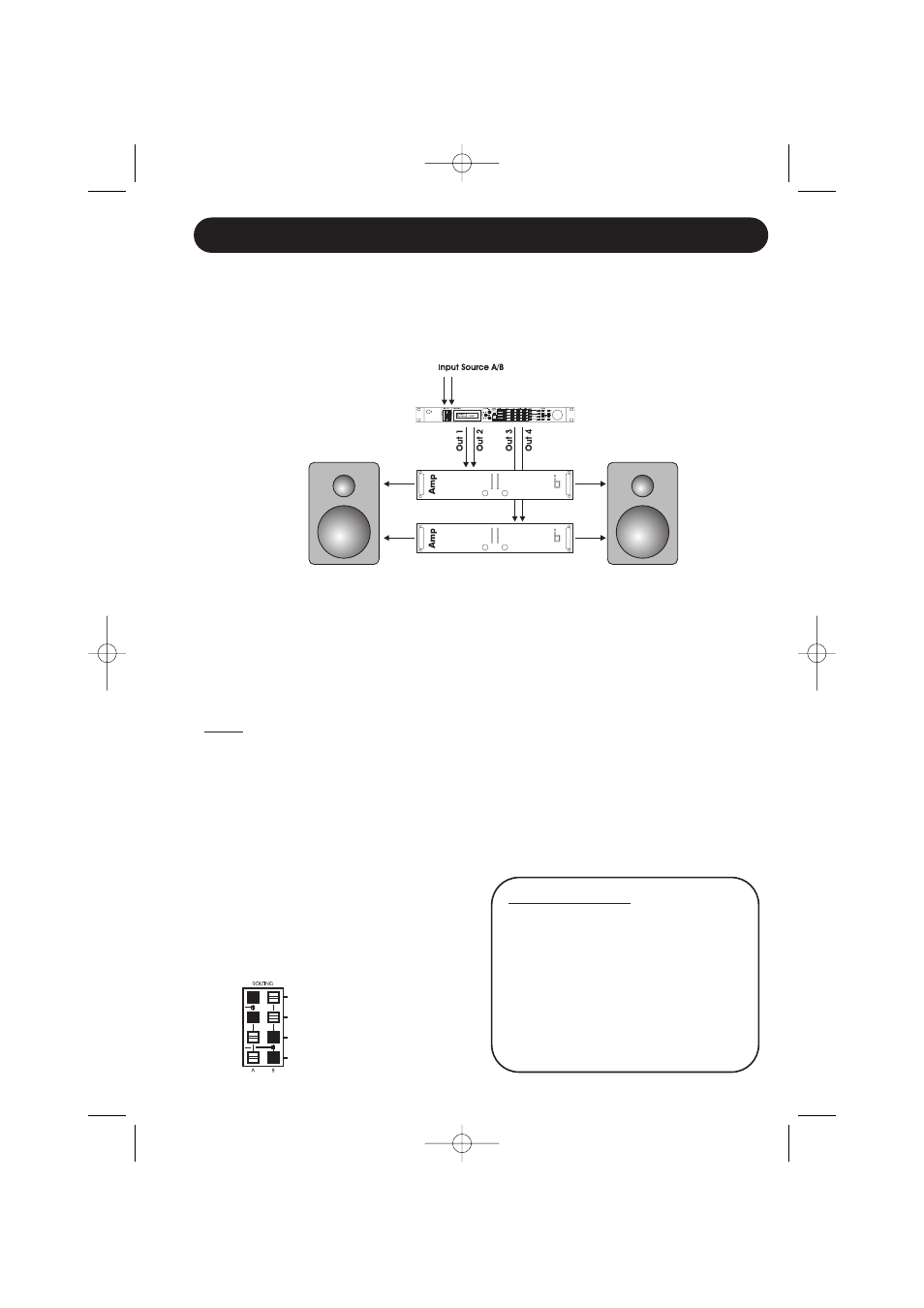

This setup is a typical small 2-way system.
Analog
• Input signal is fed to Inputs A and B.
• Configure Routing section as illustrated
below.
• Output channels 1 and 2 feed loudspeaker
set A.
• Output channels 3 and 4 feed loudspeaker
set B.
Using the Digital Input
• Digital Input 44.1 or 48kHz must be
present in the Digital Input.
• Press and hold the DIGITAL IN button
on the front panel until digital lock is
achieved.
Note: The signal present on the DIGITAL
INPUT is passed unprocessed to the
DIGITAL THRU connection on the rear
panel for further downstream processing.
Configuration overview
Stereo Setup
