12
SETUPS
3/4 way setup - Bi-Amp Mid/High
Using the Digital Input
• Digital Input 44.1 or 48kHz must be
present in the Digital Input.
• Press and hold the DIGITAL IN button
on the front panel until digital lock is
achieved.
Note: The signal present on the DIGITAL
INPUT is passed unprocessed to the
DIGITAL THRU connection on the rear
panel for further downstream processing.

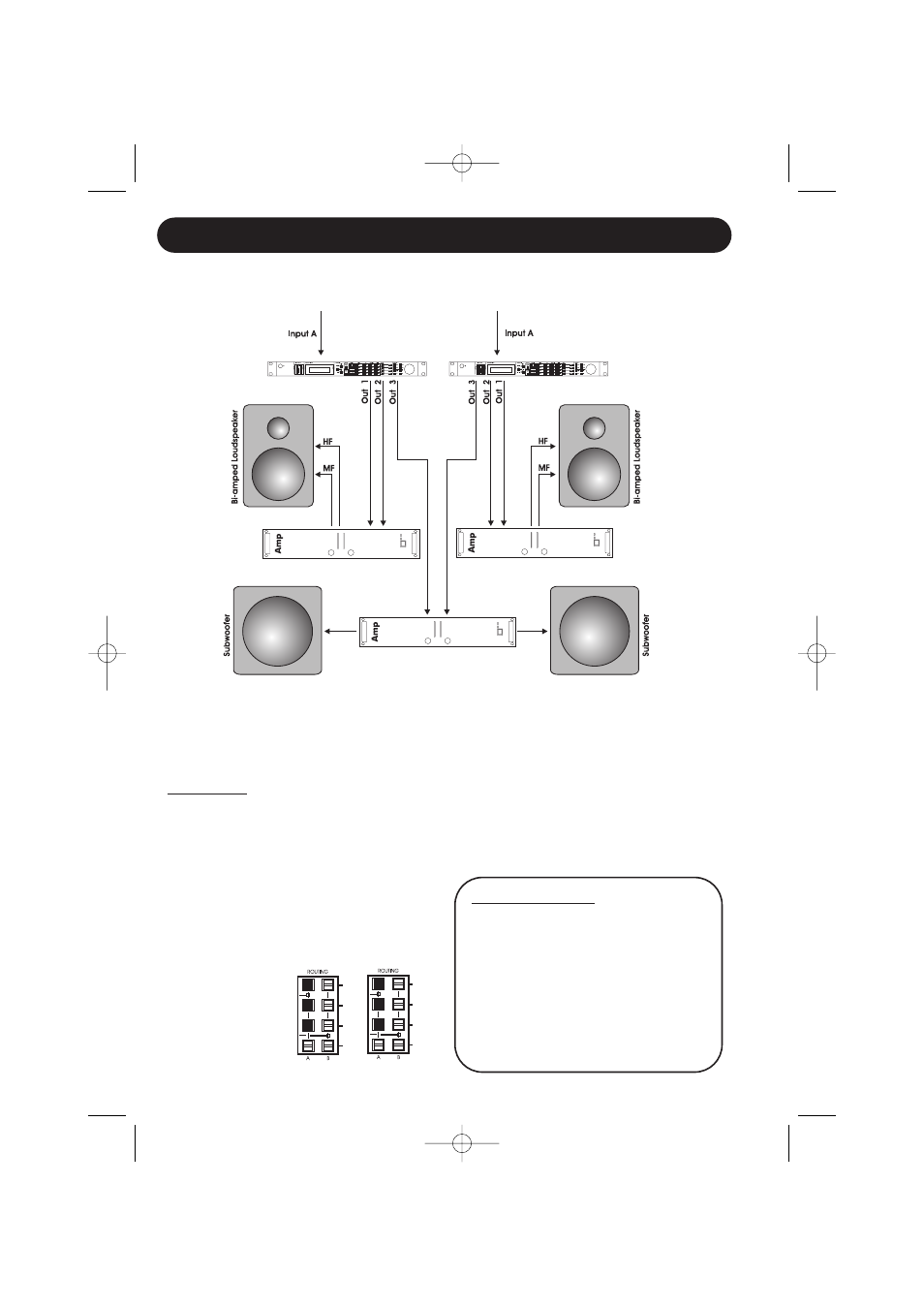

This example shows how 2 XO24s can be
used in conjunction to distribute Input
signals to a 3 or 4 way system per side.
For each side:
• Source signal can be connected to either
Inputs A or B as only one Input per side is
used. For this example - use Input A on both
controllers.
• Configure the Routing section as illustrated
below.
• Set Crossovers and additional parameters.
Configuration overview
