Freq
Range - Lo band : 20 Hz to 20 kHz
Range - Mid1 band : 20 Hz to 20 kHz
Range - Mid2 band : 20 Hz to 20 kHz
Range - Hi band : 20 Hz to 40 kHz
Gain
Select the band, click on the Gain field then drag the
mouse vertically to change the value.
Range for the Parametric and Shelve types:
Lo Gain
: -12 dB to +12 dB
Mid1 Gain : -12 dB to +12 dB
Mid2 Gain : -12 dB to +12 dB
Hi Gain : -12 dB to +12 dB
Type
Range for the Notch filter:
Lo Gain
: -inf; -97 dB to 0 dB
Mid1 Gain : -inf; -97 dB to 0 dB
Mid2 Gain : -inf; -97 dB to 0 dB
Hi Gain : -inf; -97 dB to 0 dB
Range for the Notch filter:
Lo BW
: 0.01 oct to 1oct
Mid1 BW : 0.01 oct to 1oct
Mid2 BW : 0.01 oct to 1oct
Hi BW : 0.01 oct to 1oct
Range for the Parametric filter:
Lo BW
: 0.1 oct to 4 oct
Mid1 BW : 0.1 oct to 4 oct
Mid2 BW : 0.1 oct to 4 oct
Hi BW : 0.1 oct to 4 oct
Range for the Shelve filter:
Lo BW
: 3dB/oct to 12dB/oct
Hi BW : 3dB/oct to 12dB/oct
Range for the Cut filter:
Lo BW
: Bessel or Butterworth
Hi BW : Bessel or Butterworth
Bandwidth/Q - Key-Values:
BW Q
0.5 - 2.87
0.7 - 2.04
1.0 - 1.41
FABRIK C STUDIO FABRIK C STUDIO
47 46
Gain Control
The Gain settings are very important.
The higher set In Gain the harder the signal meets the
Compressor Threshold.
• Grab GAIN and move the symbol in vertical and
horizontal directions to set both In Gain and Make-up
gain with just one handle.
The Threshold is automatically set when the Source type
is selected, however, the Gain parameters determine how
hard the signal meets the Threshold.
Depending on how the Compressor parameters are set,
the level will change. The Make-up Gain parameter is
used to compensate for this level change.
In Gain Range: -18 to +18 dB
Make-up Gain: -18 to +18 dB
Compression
3-band and Full-band modes
Gain page

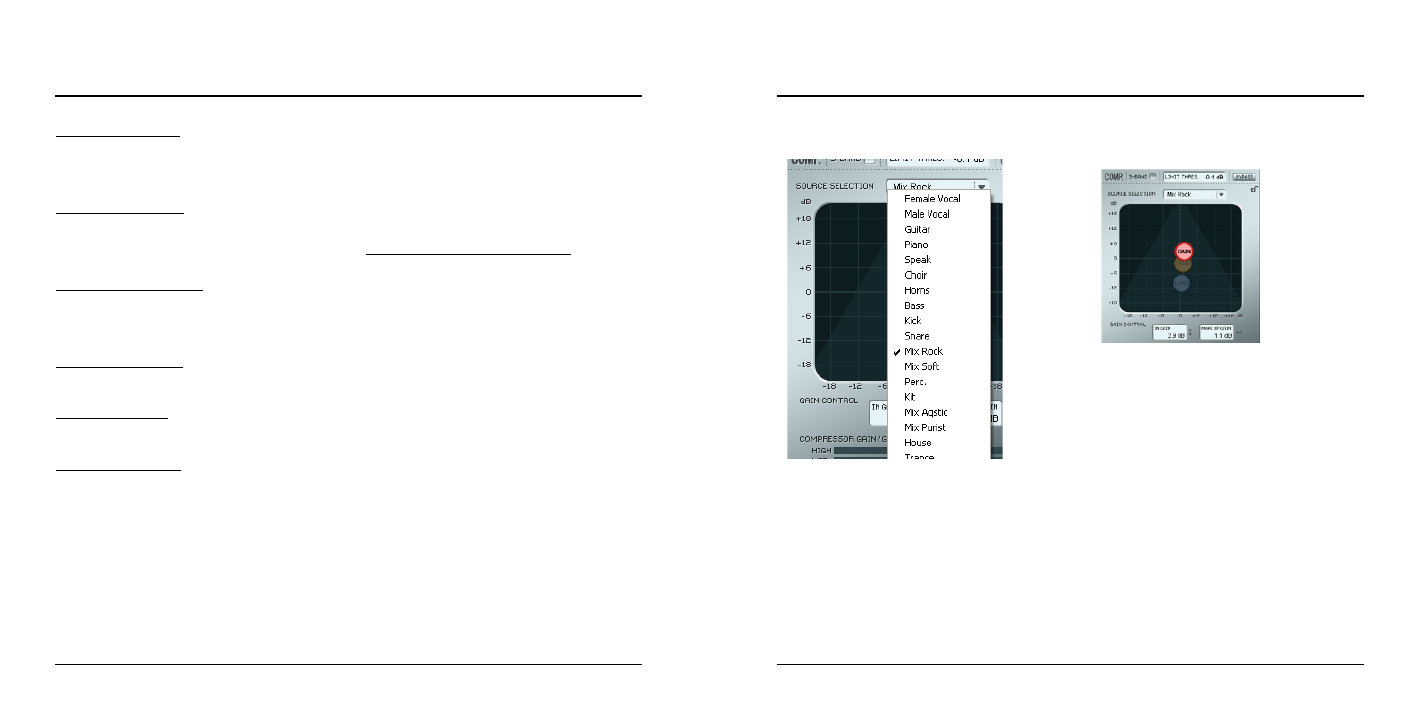

Source selection
- via the drop down menu
Source Selection
Use the drop-down menu to select which type of material
you are processing.
Each type selects a carefully tuned combination of the
essential compression parameters: Attack, Release,
Threshold and Ratio.
