APPENDIX – WIRING DIAGRAMS

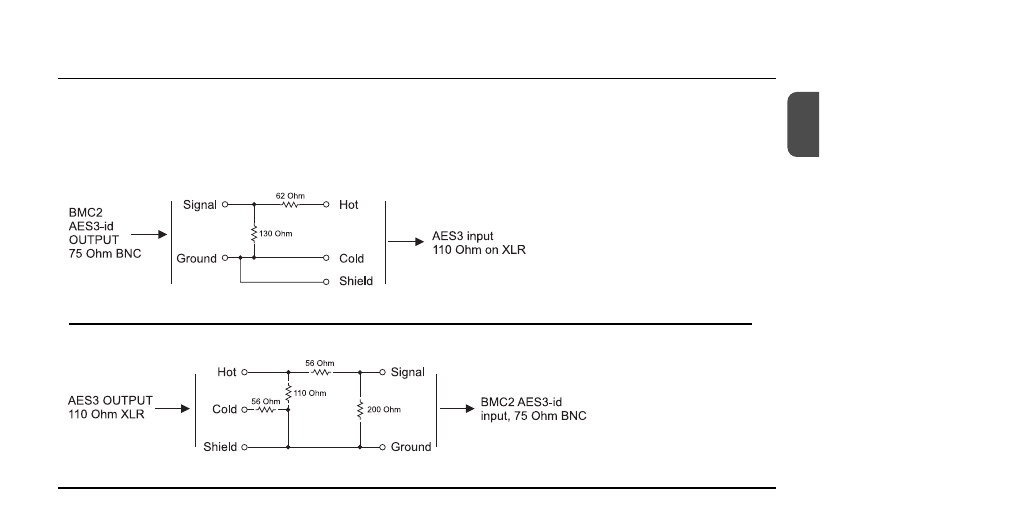

BMC-2 Output to AES3 Input
AES3 Output to BMC-2 Input
Note: Place this circuit close to the AES3 input on the target device!
Note: Place this circuit close to the BMC-2 input!
When you are feeding an AES3 signal to the SPDIF/AES3 input of the BMC-2, or when you are feeding another
device’s AES3 input from the SPDIF/AES3 output of the BMC-2, we recommend placing a small circuit between the
units to ensure optimal cable length and signal integrity. These circuits are not supplied by TC Electronic – please
contact a qualified technician for assistance.
