9064-OM (V4.1) 9064 PRODUCT MANUAL 3-37
Operating Instructions
Color and Video Correction Examples Using the 9064
Color and Video Correction Examples Using the 9064
Shown below are examples of using the 9064 to provide parametric color and
video correction.
On-Set Monitor Color Correction Example
A typical use for the 9064 Color Corrector function is to provide color
correction for a monitor when an anchor desk set includes a monitor, as
shown in Figure 3-6.
In the example setup shown in Figure 3-6, a monitor is located behind the
anchor desk. When the camera includes the monitor in its shot, typically the
color balance of the monitor will appear to be incorrect due to the
characteristics of the camera responding differently to the spectral light
emissions from the monitor as compared to the natural light spectra emissions
that exist across the set overall. This monitor color balance problem is a
function of the camera(s), and can vary with different camera models.

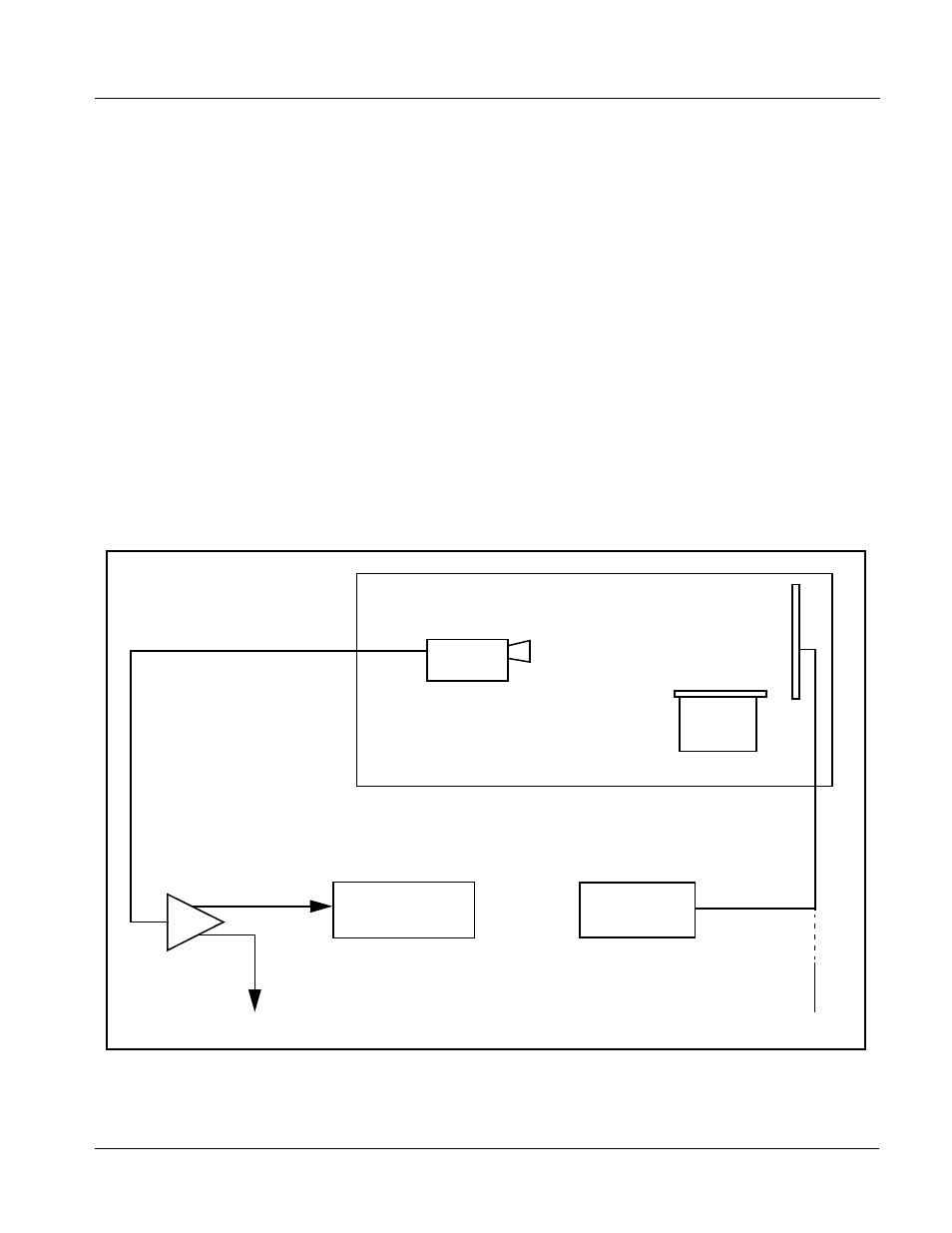

Figure 3-6 Example Uncompensated Setup
Feed To Switcher
Anchor Desk Set with Monitor
TG700 Siggen WFM 7120 Waveform
Monitor
From Monitor Video Feed
